Caldwell Model 84 Telescoping Coil Lifter

Caldwell Model 84 Telescoping Coil Lifter

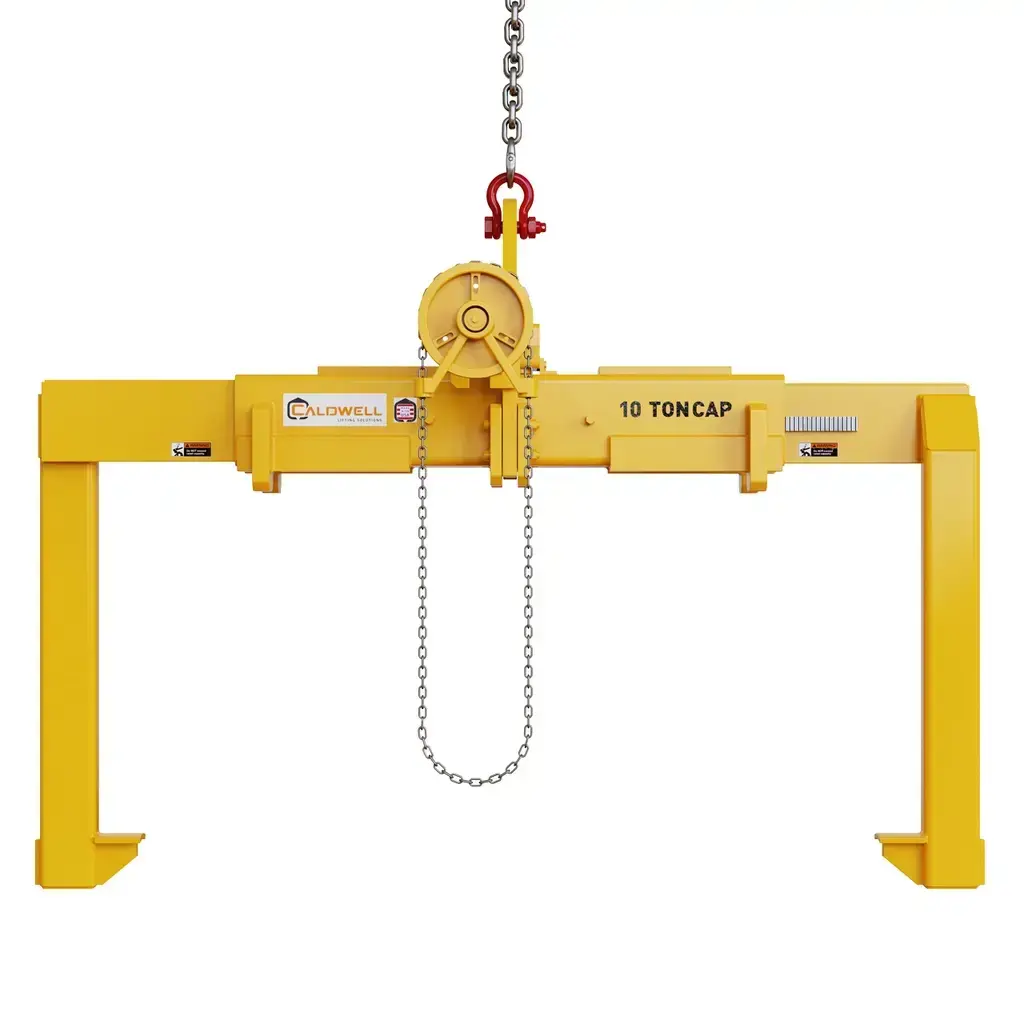

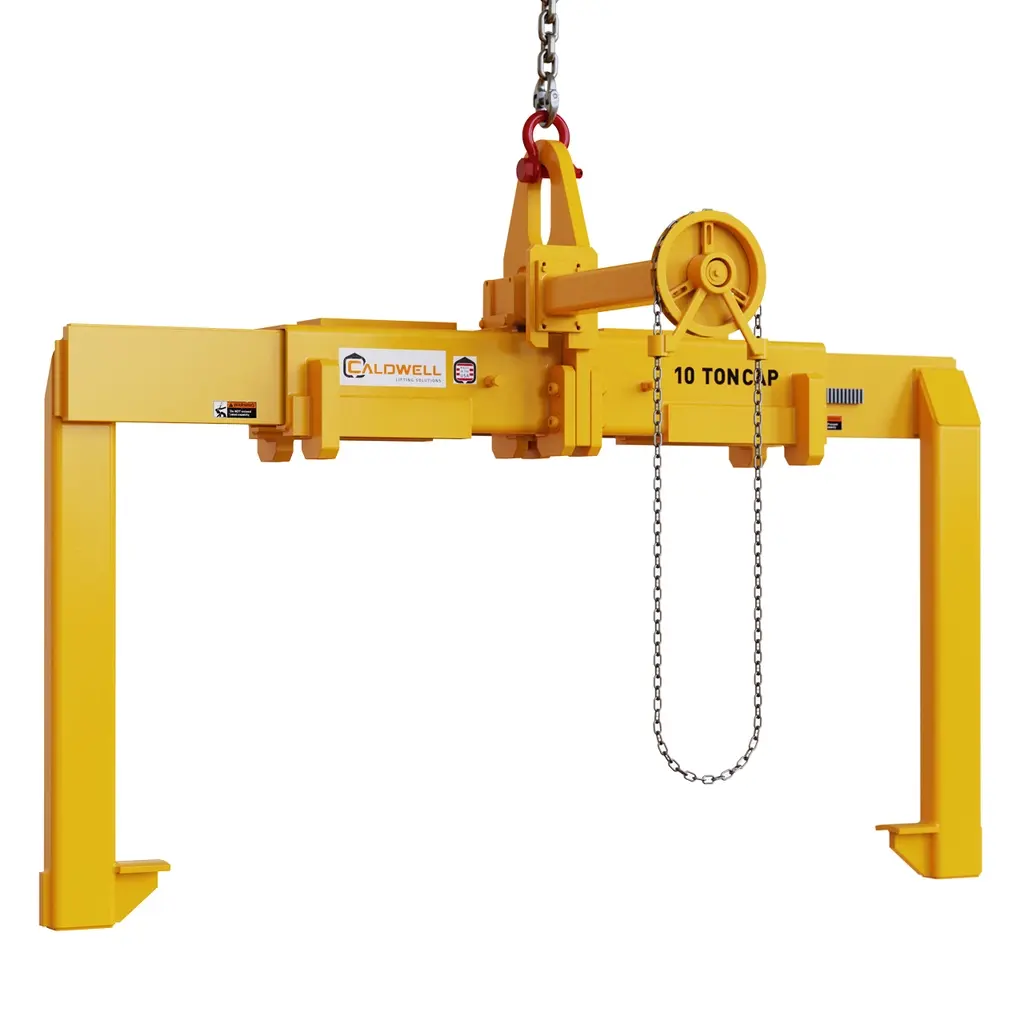

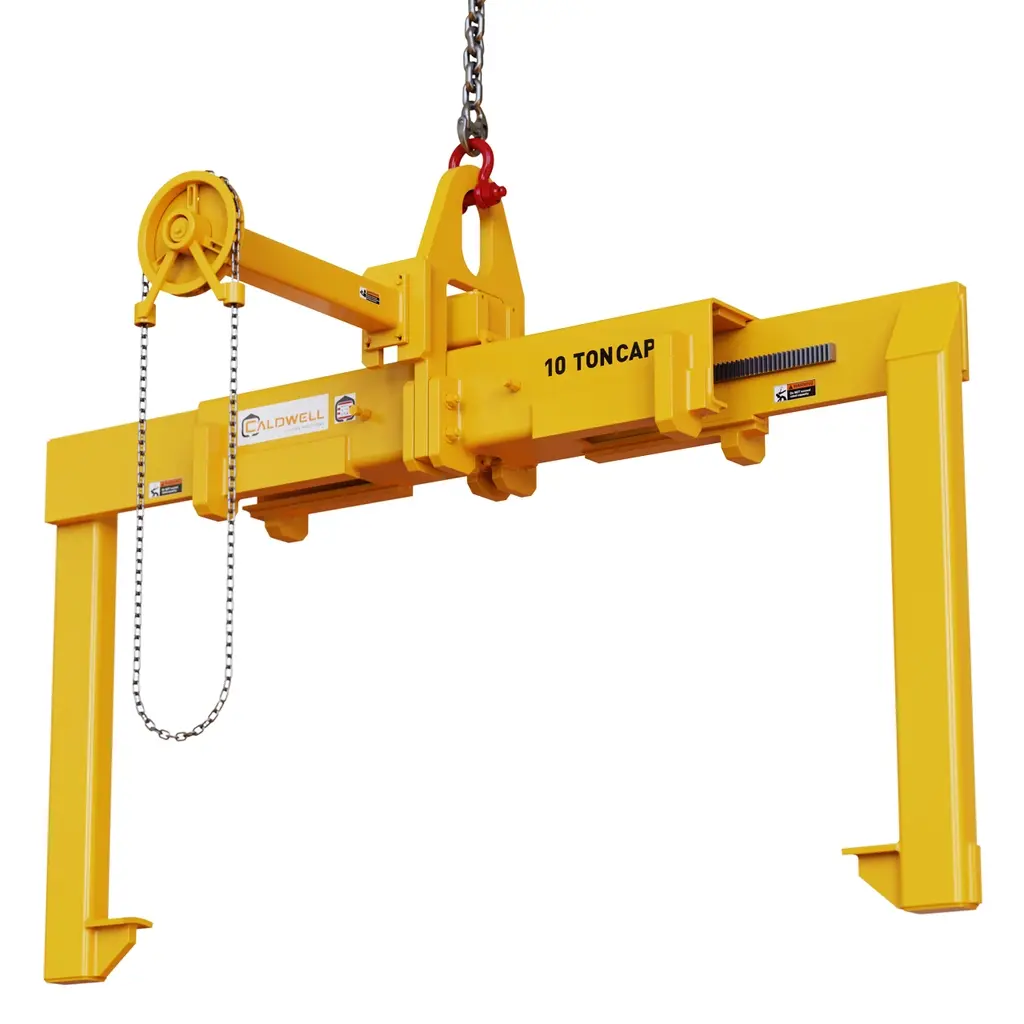

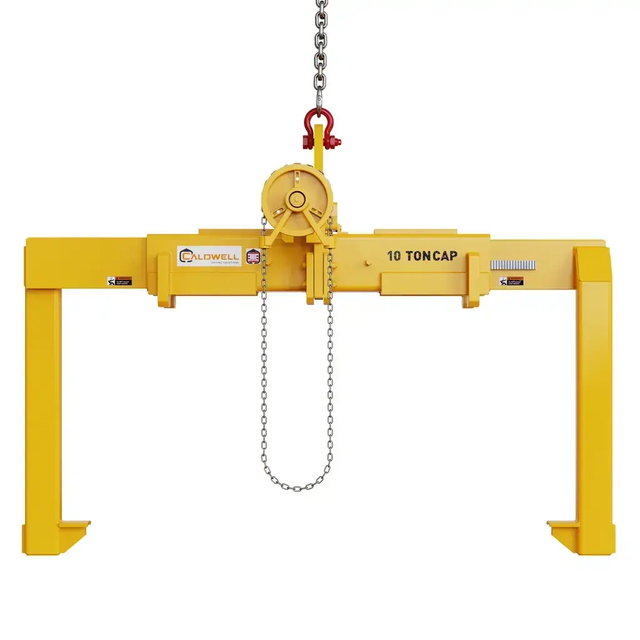

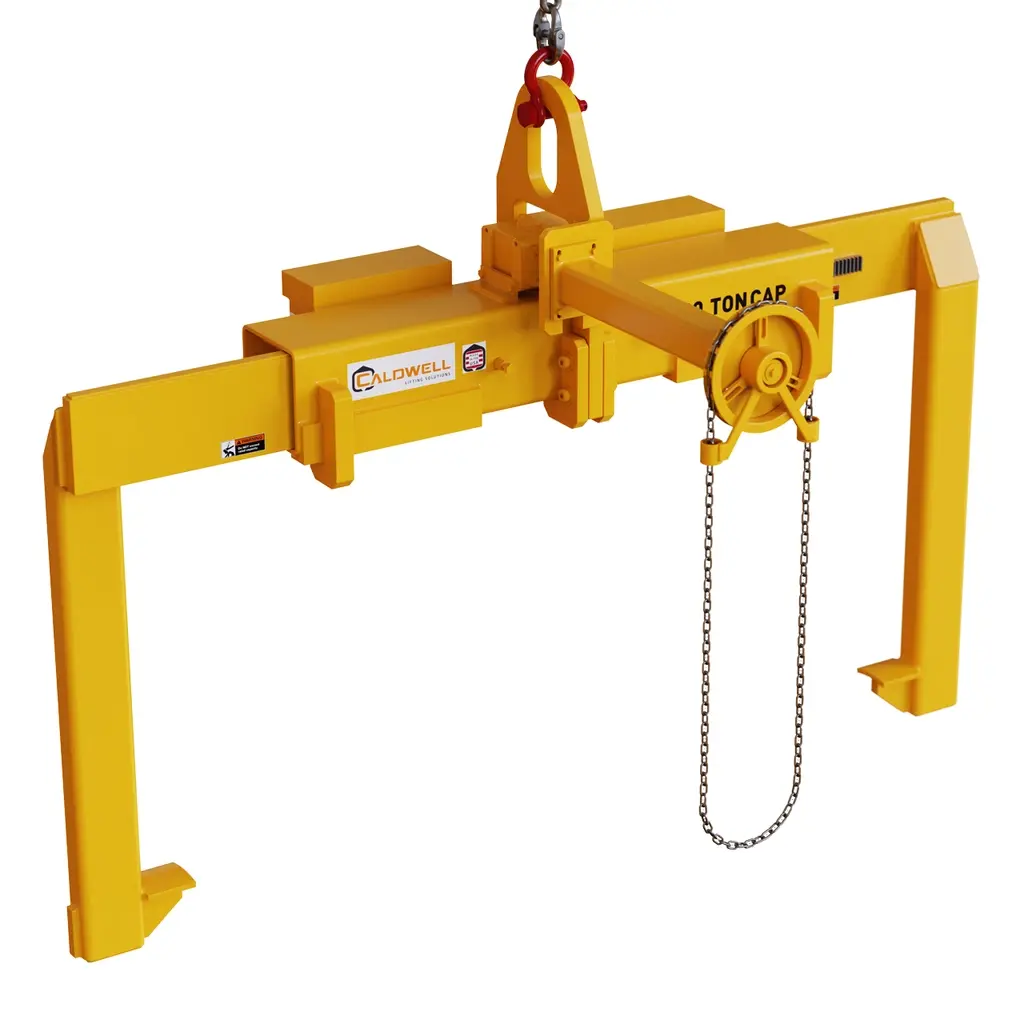

The Caldwell Model 84 Telescoping Coil Lifter is a heavy-duty, two-sided below-the-hook lifting device designed for safely lifting and transporting steel coils with varying widths. Its telescoping leg design allows operators to quickly adjust the lifting legs to accommodate multiple coil sizes using either a manual chain wheel/handwheel drive or an optional motorized leg drive, making it ideal for steel mills, service centers, manufacturing facilities, and coil processing operations.

Unlike traditional fixed-width coil lifters, the Model 84 eliminates the need for multiple lifting devices by adjusting to a wide range of coil widths. The self-locking worm gear drive securely holds the lifting legs in position to prevent accidental movement during lifting, while the curved lifting pads help minimize coil surface damage. Its compact two-sided design requires less aisle space, improving maneuverability in crowded production and warehouse environments.

Features

Telescoping Leg Design

• Adjustable telescoping lifting legs
• Accommodates multiple coil widths
• Eliminates multiple dedicated lifters
• Quick width adjustments
• Excellent production flexibility
• Designed for repetitive industrial use

Chain Wheel or Motorized Drive

Choose the drive system that best matches your operation:

• Manual chain wheel operation
• Handwheel leg drive available
• Optional motorized leg drive
• Smooth adjustment
• Easy operation
• Low maintenance

Self-Locking Worm Gear

• Prevents accidental leg movement
• Secure load positioning
• Positive mechanical locking
• Reliable operation
• Increased lifting safety
• Heavy-duty drive mechanism

Two-Sided Coil Lifter Design

• Requires less aisle space
• Easier positioning
• Compact overall footprint
• Excellent for tight storage areas
• Efficient material handling

Curved Lifting Pads

• Helps minimize coil damage
• Better load distribution
• Protects finished materials
• Reduces concentrated pressure
• Designed for repeated lifting

Heavy-Duty Construction

• Welded structural steel
• Industrial-grade fabrication
• Commercial-duty components
• Powder-coated finish
• Long service life
• Built for continuous operation

ASME Compliant

• Designed to comply with applicable ASME standards
• Below-the-hook lifting device
• Commercial lifting equipment
• Engineered for industrial environments

Benefits

• One lifter handles numerous coil widths
• Reduced equipment inventory
• Improved production efficiency
• Compact storage
• Easy adjustment
• Protects coil surfaces
• Heavy-duty industrial construction
• Available with manual or powered operation
• Long service life

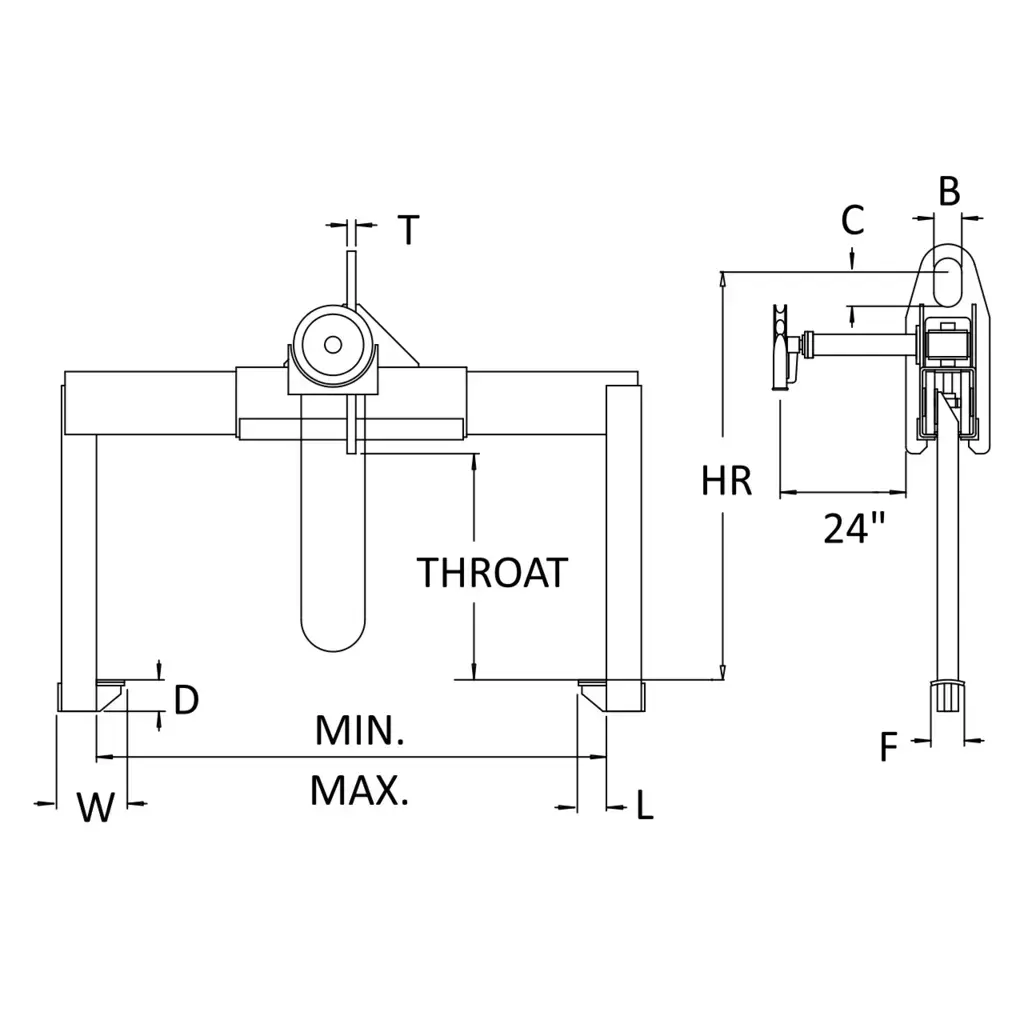

Technical Specifications

Available Models

Standard Features

• Telescoping adjustable legs
• Manual chain wheel drive
• Optional motorized leg drive
• Self-locking worm gear
• Curved lifting pads
• Heavy-duty bail assembly
• Welded structural steel construction
• Industrial powder-coated finish
• Commercial-duty components

Common Applications

• Steel mills
• Steel service centers
• Coil processing plants
• Manufacturing facilities
• Metal fabrication
• Automotive production
• Roll forming
• Warehousing
• Distribution centers
• Heavy industrial material handling

Industries Served

• Steel processing
• Metal fabrication
• Automotive
• Manufacturing
• Appliance manufacturing
• Warehousing
• Distribution
• Industrial processing
• Heavy equipment manufacturing
• Material handling

Advantages Over Fixed Coil Lifters

Safety Information

• Verify the load does not exceed the rated capacity.
• Adjust the lifting legs to fully engage the coil before lifting.
• Ensure the self-locking worm gear is fully engaged before raising the load.
• Inspect the chain wheel, drive components, lifting pads, and structural frame before each use.
• Center the crane hook directly over the load.
• Follow OSHA and ASME lifting practices.
• Never lift personnel.

Frequently Asked Questions

What is the Caldwell Model 84 used for?

The Model 84 is a telescoping coil lifter designed to safely lift and transport steel coils with varying widths using adjustable telescoping legs.

What capacities are available?

The Model 84 is available in 5-ton, 10-ton, and 15-ton capacities.

What coil widths can it handle?

Depending on the model, the telescoping legs accommodate coil widths from 16 inches up to 72 inches.

What drive systems are available?

The Model 84 can be ordered with a manual chain wheel/handwheel leg drive or an optional motorized leg drive for higher-volume production environments.

How does the self-locking worm gear improve safety?

The worm gear prevents the lifting legs from opening unintentionally during operation, helping maintain a secure grip on the coil throughout the lift.

Why choose the Caldwell Model 84?

The Model 84 combines adjustable telescoping legs, multiple drive options, compact two-sided construction, and curved lifting pads into one versatile lifting solution, reducing equipment costs while improving productivity and protecting valuable steel coils.
