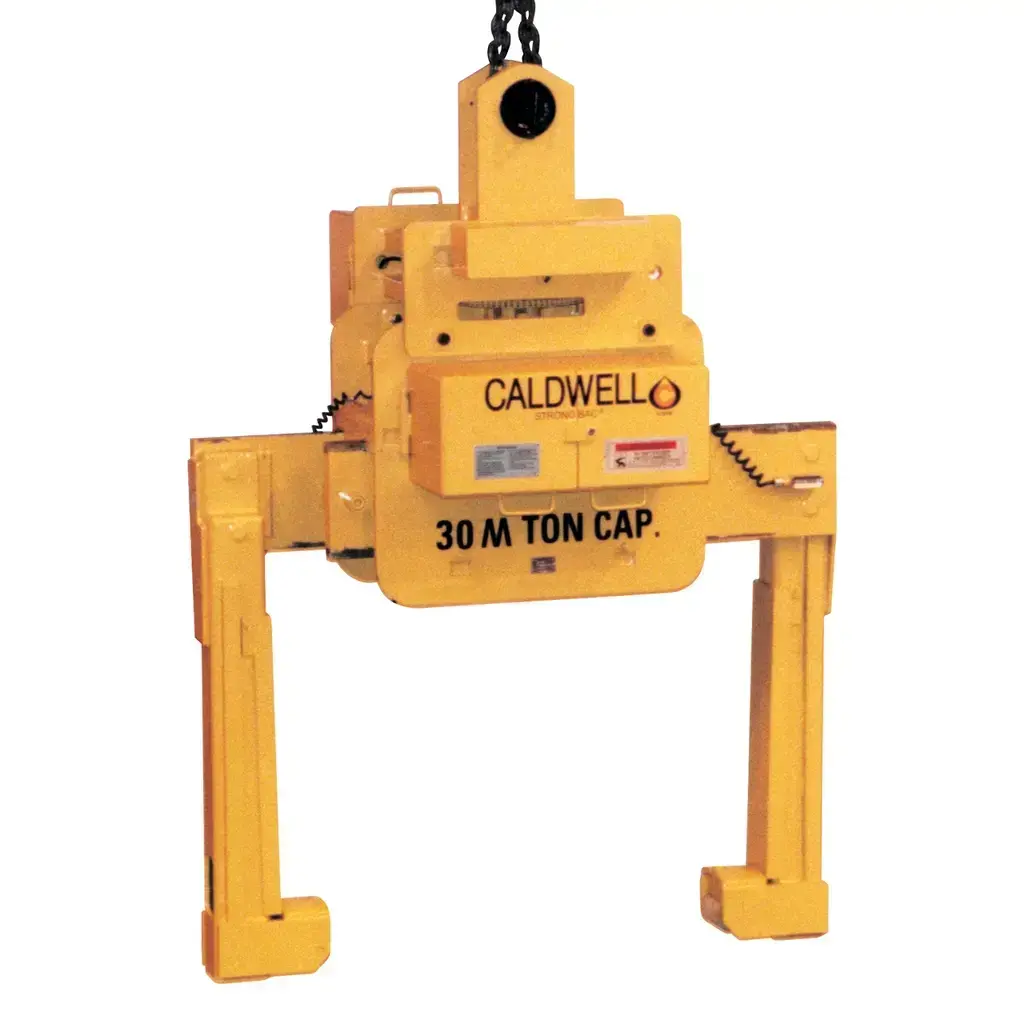

Caldwell Model 85R Motorized Rotating Telescoping Coil Grab

Caldwell Model 85R Motorized Rotating Telescoping Coil Grab

The Caldwell Model 85R Motorized Rotating Telescoping Coil Grab combines the proven performance of the legendary Model 85 with a fully integrated motorized 360° rotation system, allowing operators to lift, rotate, transport, and precisely position heavy steel coils without changing lifting equipment. Built for demanding steel mills, paper mills, service centers, and manufacturing facilities, the Model 85R increases productivity while protecting valuable coil inventory.

Powered telescoping lifting legs automatically adjust to varying coil widths while the motorized rotation system turns loads approximately 360° at 2 RPM for accurate placement. Curved lifting pads, high-impact toe rollers, anti-clamp protection, lockout safety switches, and a heavy-duty torque-limiting drive provide safe, reliable operation during continuous industrial use. The Model 85R is designed to operate from an AC power supply and complies with applicable ASME standards.

Features

Motorized Telescoping Leg Drive

• Fully powered leg adjustment
• Handles multiple coil widths
• Leg travel speed of 2.8 in./second
• Fast positioning
• Increased production efficiency
• Reduced operator fatigue
• Smooth, accurate operation

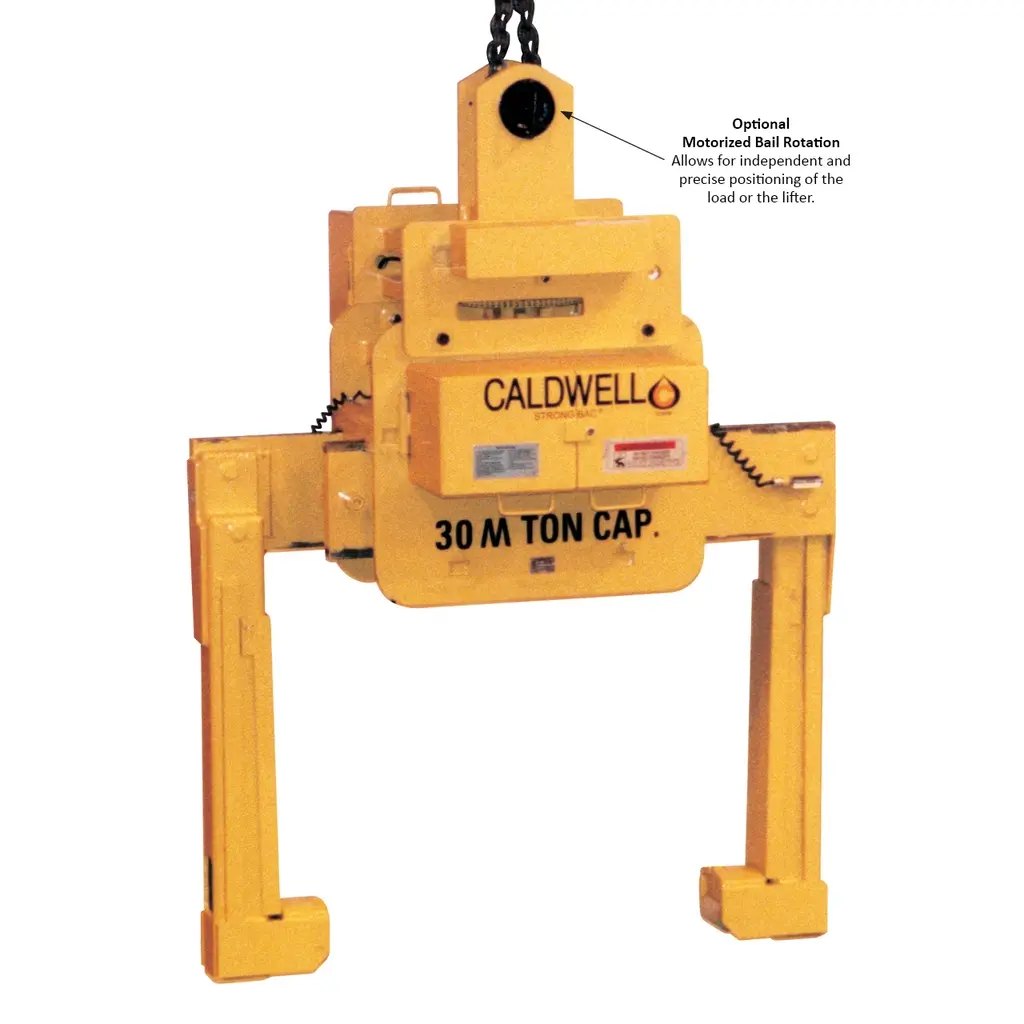

Motorized 360° Rotation

• Powered continuous rotation
• Approximately 2 RPM
• Precise coil positioning
• Eliminates manual rotation
• Improves production workflow
• Better load placement
• Ideal for manufacturing operations

Narrow Aisle Design

• Maximizes warehouse storage
• Compact overall footprint
• Ideal for close aisle operation
• Easier maneuvering
• Improves floor space utilization

Coil Protection

• Curved lifting pads
• High-impact plastic toe rollers
• Reduces coil damage
• Prevents foot contact with coils

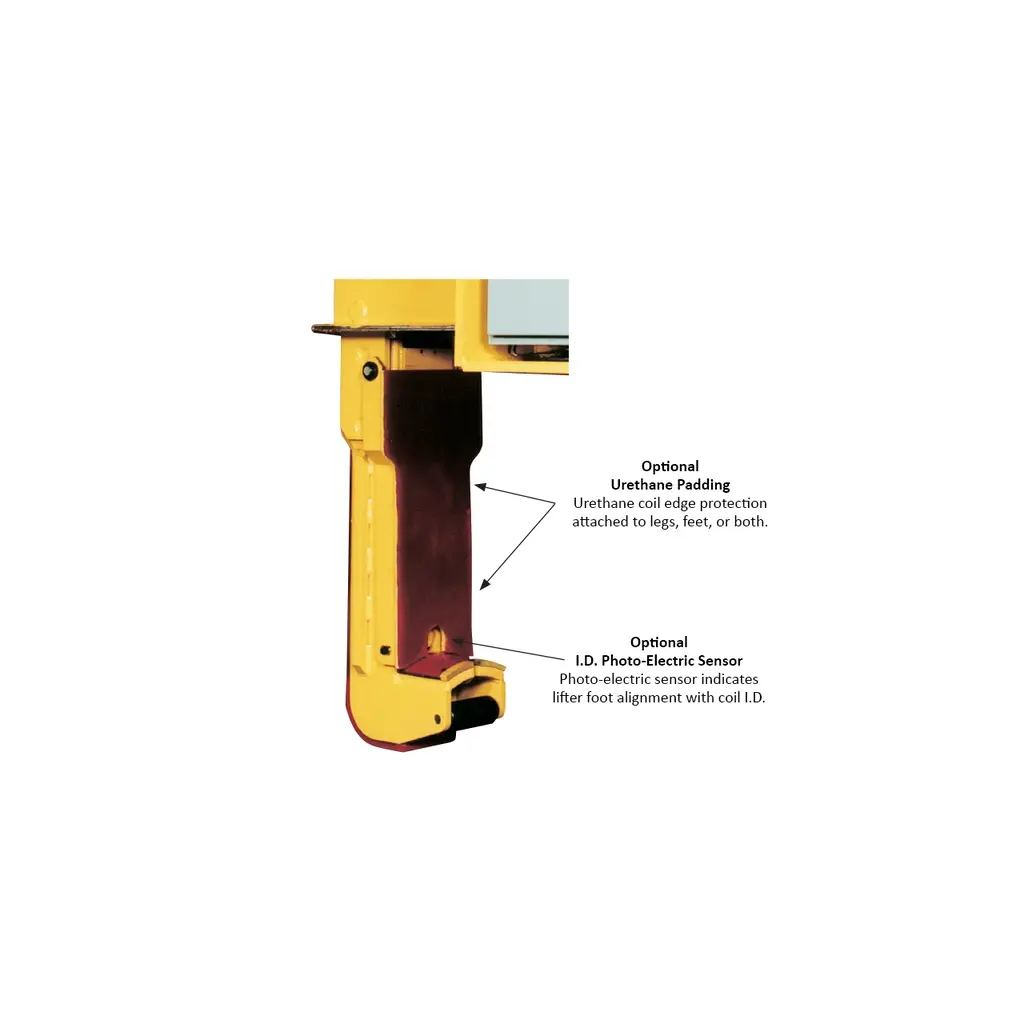

• Optional protective padding available

Heavy-Duty Drive Protection

• Torque-limiting drive protection
• Protects against overload
• Reliable operation
• Long service life
• Reduced maintenance

Anti-Clamp Safety

• Anti-clamp limit switch
• Prevents excessive closing pressure
• Protects finished coils
• Improves operator safety
• Reduces product damage

Lockout Safety System

• Prevents unintended leg opening
• Secure lifting operation
• Positive safety control
• Improved workplace safety

Heavy-Duty Construction

• Alloy steel lifting pin bail
• Heavy-duty welded construction
• Easily replaceable slide wear guides
• Easy maintenance access
• Industrial-grade components

AC Powered Operation

• Operates on AC electrical power
• Continuous-duty industrial motor
• Reliable commercial performance
• Low maintenance design

ASME Compliant

• Designed to applicable ASME standards
• Commercial below-the-hook lifting device
• Engineered for industrial environments

Benefits

• Lift and rotate coils with one machine
• Powered telescoping leg adjustment
• Powered 360° rotation
• Protects finished steel coils
• Reduces operator effort
• Maximizes warehouse space
• Heavy-duty industrial construction
• Designed for continuous production
• Long equipment life

Technical Specifications

Available Models

*Model 85R-30-72 is rated for 33 tons.

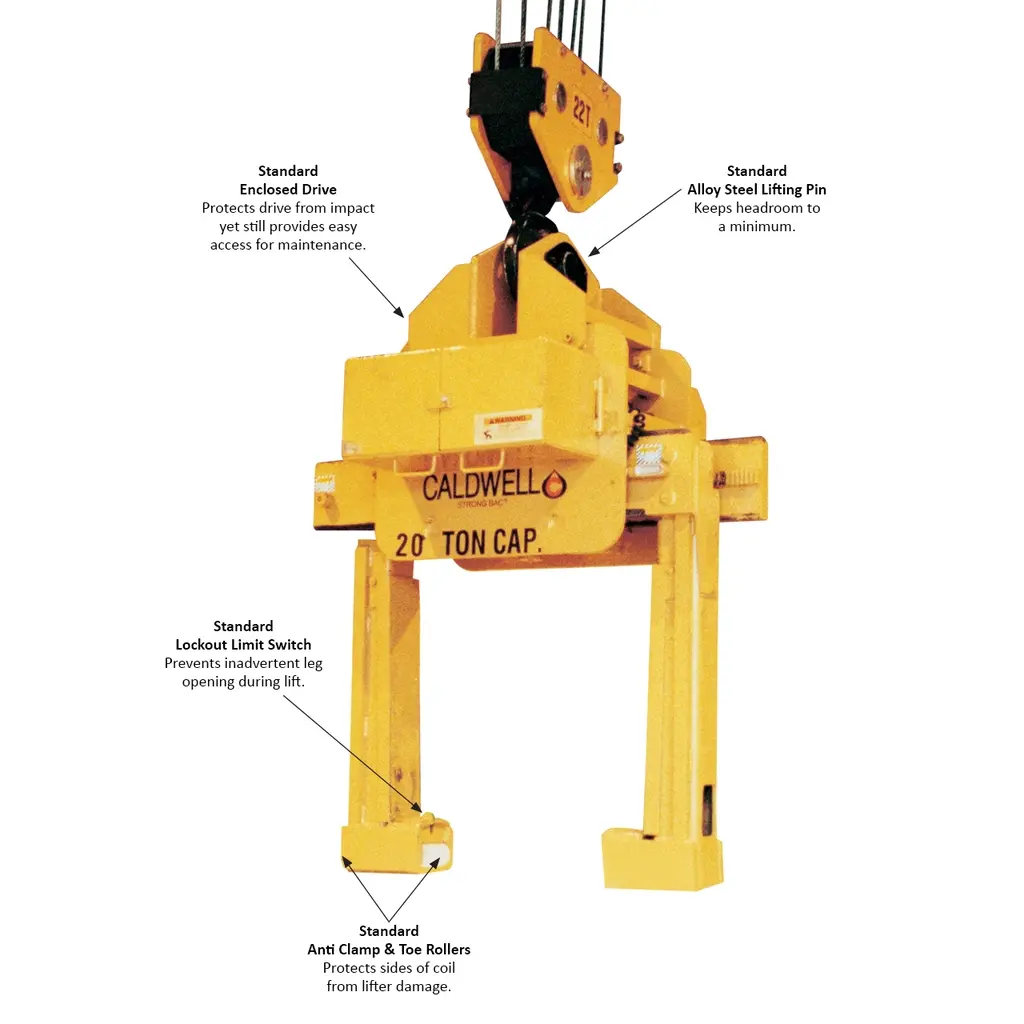

Standard Equipment

• Motorized telescoping leg drive
• Motorized 360° rotation
• Curved lifting pads
• High-impact plastic toe rollers
• Torque-limiting drive protection
• Anti-clamp limit switch
• Lockout limit switch
• Alloy steel pin bail
• Replaceable slide wear guides
• Heavy-duty welded construction
• AC-powered drive system

Common Applications

• Steel mills
• Paper mills
• Steel service centers
• Coil processing facilities
• Manufacturing plants
• Roll forming operations
• Automotive manufacturing
• Heavy fabrication
• Warehouses
• Distribution centers

Industries Served

• Primary metals
• Steel processing
• Paper manufacturing
• Automotive
• Manufacturing
• Industrial fabrication
• Warehousing
• Heavy equipment manufacturing
• Material handling
• Distribution

Advantages Over Standard Coil Grabs

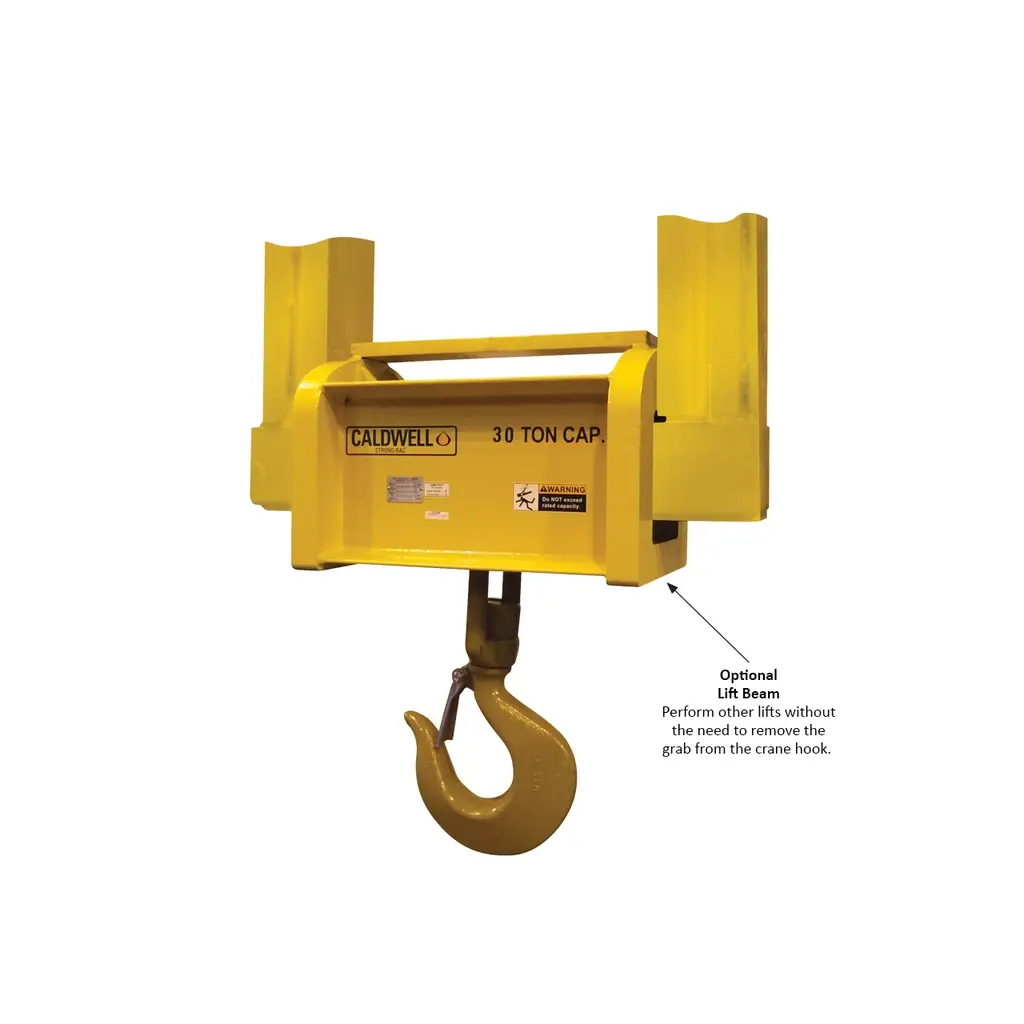

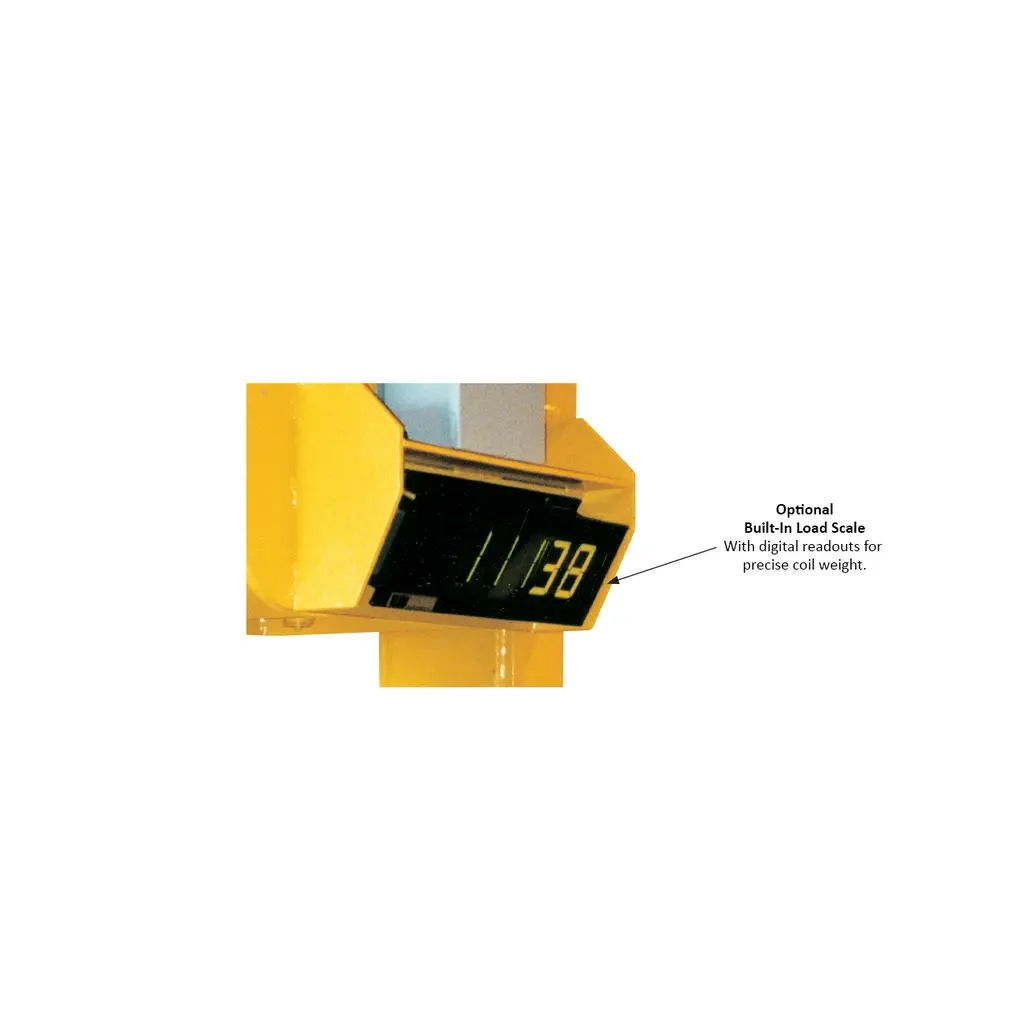

Optional Configurations

• Mill-duty construction for extreme temperatures
• Higher lifting capacities
• Custom controls
• Protective padding
• Special electrical configurations
• Application-specific engineering

Safety Information

• Verify the load does not exceed the rated capacity.
• Fully engage the telescoping legs before lifting.
• Confirm the lockout system is active before transporting the load.
• Inspect the rotation system, lifting pads, drive components, and safety switches before each use.
• Ensure the crane is centered over the load.
• Follow OSHA and applicable ASME lifting standards.
• Never lift personnel.

Frequently Asked Questions

What is the Caldwell Model 85R used for?

The Model 85R is designed to lift, rotate, and position heavy steel coils using powered telescoping legs and a motorized 360° rotation system.

What capacities are available?

The Model 85R is available in 20-ton, 25-ton, and 33-ton standard capacities.

How fast does the rotation system operate?

The motorized rotation system rotates the load at approximately 2 RPM, allowing controlled positioning of heavy coils.

How fast do the lifting legs adjust?

The powered telescoping legs travel at approximately 2.8 inches per second, providing quick adjustment for different coil widths.

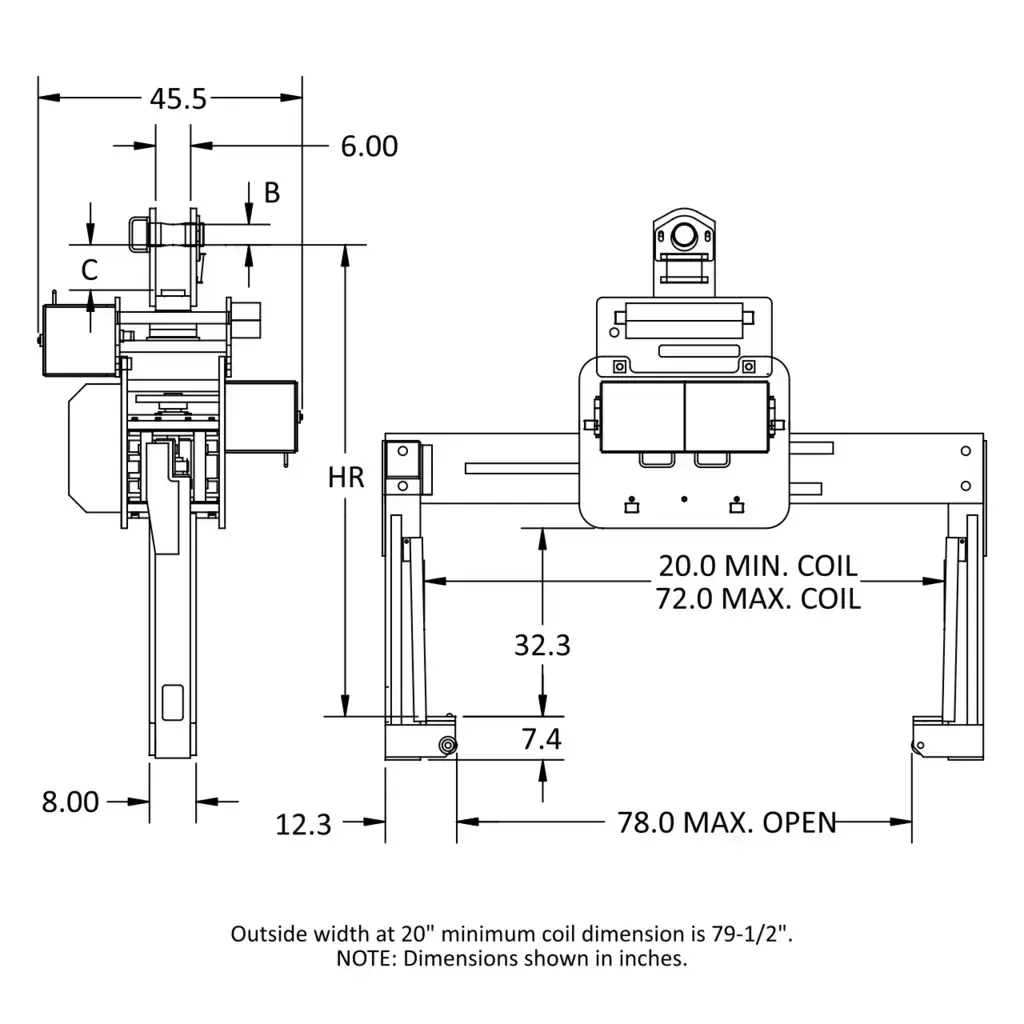

What coil widths can the Model 85R handle?

Standard models accommodate coil widths from 20 inches to 72 inches.

What industries commonly use the Model 85R?

The 85R is widely used in steel mills, paper mills, steel service centers, manufacturing plants, and heavy industrial material handling operations where powered rotation and high-capacity coil handling improve productivity.
