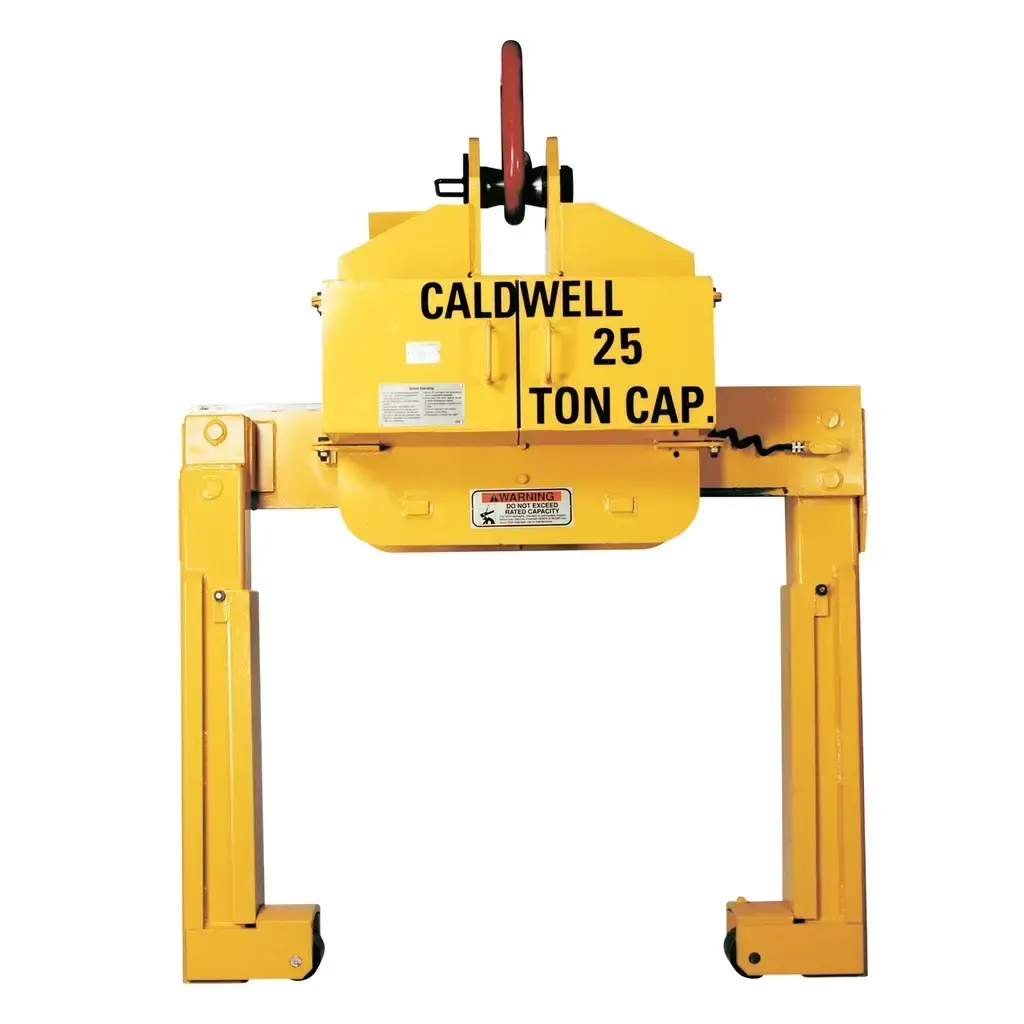

Caldwell Model 85 Motorized Telescoping Coil Grab

The Caldwell Model 85 Motorized Telescoping Coil Grab is one of Caldwell's most proven and customizable coil lifting systems for safely handling heavy steel coils in demanding industrial environments. Designed for high-production operations, the Model 85 features a motorized telescoping leg drive that rapidly adjusts to varying coil widths while maximizing productivity and reducing operator effort. Stock models are available in capacities up to 33 tons, with custom configurations available for even higher capacities and specialized applications.

Its compact, two-sided design is ideal for narrow aisle stacking, helping facilities maximize valuable floor space. Curved lifting pads, high-impact toe rollers, anti-clamp protection, and a heavy-duty torque-limiting drive system help protect valuable coils while providing dependable operation. The Model 85 is also field-upgradeable to a rotating configuration and can be customized with built-in load scales, photo-electric sensors, indicator lights, urethane padding, severe-duty packages, and lift beams.

Features

Motorized Telescoping Leg Drive

• Fully motorized leg adjustment
• Fast automatic positioning
• Leg travel speed of 2.8 in./second
• Reduces operator effort
• Increases production efficiency
• Ideal for high-volume operations
• Smooth, precise movement

Narrow Aisle Design

• Maximizes storage density
• Ideal for narrow warehouse aisles
• Improves floor space utilization
• Compact two-sided construction
• Easier maneuverability
• Excellent for steel service centers

Coil Protection

• Curved lifting pads
• High-impact plastic toe rollers
• Reduces coil edge damage
• Prevents foot contact with coils
• Protects finished materials
• Optional urethane padding available

Heavy-Duty Drive Protection

• Heavy-duty torque-limiting drive
• Prevents overload damage
• Protects drive during maximum open/closed travel
• Long service life
• Reduced maintenance

Anti-Clamp Protection

• Anti-clamp limit switch
• Prevents excessive closing pressure
• Protects coil surfaces
• Improves lifting safety
• Reduces product damage

Lockout Safety System

• Lockout limit switch
• Prevents inadvertent leg opening
• Secure lifting operation
• Increased operator confidence
• Enhanced workplace safety

Heavy-Duty Construction

• Alloy steel lifting pin bail
• Enclosed drive system
• Easily replaceable slide wear guides
• Easy maintenance access
• Industrial welded construction
• Built for continuous operation

AC Powered Operation

• Operates on AC electrical power
• Reliable industrial drive system
• Designed for continuous-duty environments
• Low maintenance

Field Upgradeable

• Upgradeable to rotating configuration
• Expandable as production needs grow
• Modular design philosophy
• Long-term investment protection

ASME Compliant

• Designed to comply with applicable ASME standards
• Commercial below-the-hook lifting equipment
• Industrial safety design

Benefits

• Fast motorized operation
• One lifter handles multiple coil widths
• Maximizes warehouse space
• Protects expensive coils
• Reduces operator fatigue
• Heavy-duty industrial construction
• Easily customized
• Upgradeable for future needs
• Long service life

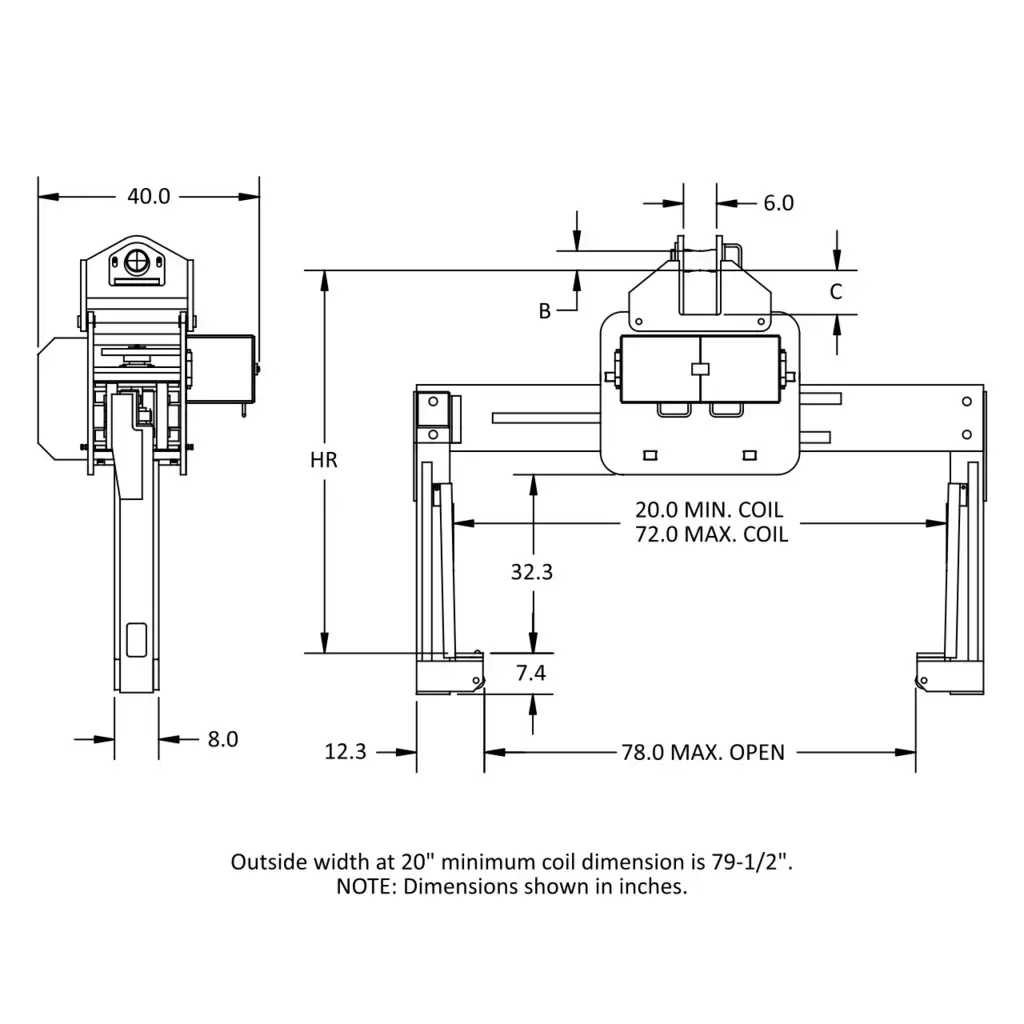

Technical Specifications

Available Models

Standard Equipment

• Motorized telescoping leg drive
• Alloy steel lifting pin bail
• Enclosed drive housing
• Curved lifting pads
• High-impact toe rollers
• Anti-clamp limit switch
• Lockout limit switch
• Torque-limiting drive protection
• Replaceable slide wear guides
• AC-powered drive system

Optional Features

• Motorized bail rotation
• Built-in digital load scale
• Indicator lights
• Urethane padding on legs and feet
• Photo-electric coil ID sensor
• Lift beam attachment
• Severe-duty drive package
• Variable frequency drive (VFD)
• NEMA 12 electrical enclosure
• Parking and maintenance stand
• Custom capacities
• Custom controls

Common Applications

• Steel mills
• Steel service centers
• Coil processing facilities
• Automotive manufacturing
• Metal fabrication
• Appliance manufacturing
• Warehouses
• Distribution centers
• Heavy industrial production
• Roll forming operations

Industries Served

• Steel processing
• Primary metals
• Manufacturing
• Automotive
• Heavy fabrication
• Warehousing
• Distribution
• Industrial processing
• Mining
• Heavy equipment manufacturing

Frequently Asked Questions

What is the Caldwell Model 85 used for?

The Model 85 is a motorized telescoping coil grab designed for lifting and transporting heavy steel coils while automatically adjusting to varying coil widths.

What capacities are available?

Standard capacities are 15, 20, 25, and 33 tons, with custom higher-capacity models available.

How fast do the lifting legs move?

The motorized telescoping legs operate at approximately 2.8 inches per second, allowing quick adjustment between coil sizes.

How does the Model 85 protect steel coils?

The lifter uses curved lifting pads, high-impact toe rollers, anti-clamp limit switches, and optional urethane padding to minimize damage to finished coils.

Can the Model 85 be customized?

Yes. It is one of Caldwell's most customizable coil lifters and can be equipped with motorized rotation, load scales, indicator lights, photo-electric sensors, severe-duty drive packages, lift beams, and many other options.

Does the Model 85 comply with industry standards?

Yes. The Model 85 is designed to comply with applicable ASME standards for below-the-hook lifting devices
