MV5500 Dust Collector is best suited for collecting concrete or asphalt dust and debris from mid- to large-sized scarifiers, concrete grinders, and concrete shavers.

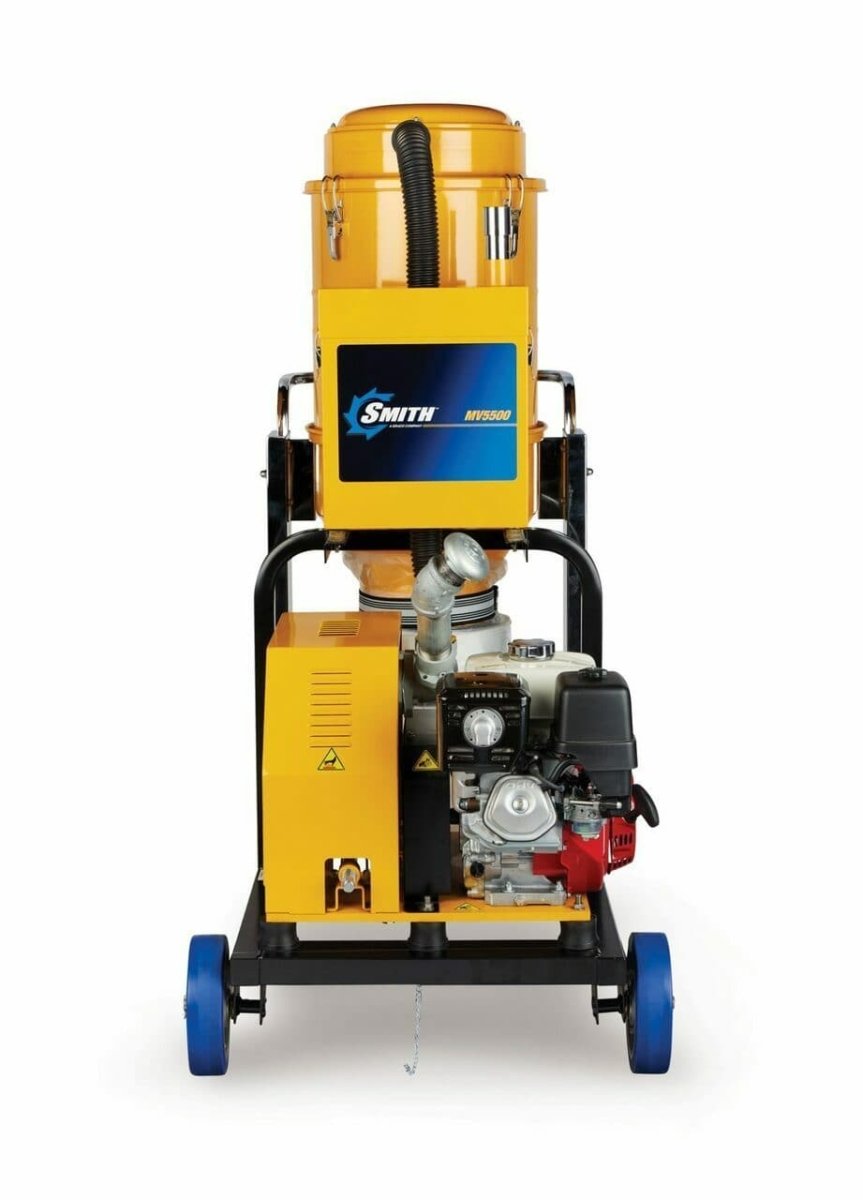

The SMITH MV5500 is a portable, industrial-grade, non-clogging, automatic-filter-cleaning dust collector, with connection bracket for using with debris separator.

Power
MV-5500.H13 13 HP Honda gasoline engine
Airflow
Maximum Airflow - 295 cfm (501 m³/h)
Vacuum Pressure

No flow - 148" H2O (276 mm Hg, 0.37 bar)

Maximum Air Power (no hose) - 2045 air-watts

Filtration
99.3% at 0.3 μm particle size
Applications
Best suited for collecting concrete or asphalt dust and debris from mid- to large-sized scarifiers, concrete grinders, and concrete shavers.
What's Included
  • Storage box
  • 3" x 33' (75mm x 10m) collection hose
  • Y-adaptor hose connection
  • (4) 2" (50mm) connectors
  • Vacuum wand
  • Floor nozzle
  • Elbow pipe connector
  • 3" (75mm) stainless coupler
  • Round brush
  • Floor brush
  • (20) vacuum collection bags (LDPE 20"x32")
  • Velcro bag strap
  • 7 non-woven fabric: 4.5"OD x 21.5"L
  • 2 - PTFE filters: 5" OD x 2.6 ID x 11.25" L
Accessories
  • Cyclone separator (MVSA, MV-SC)
  • Filter bags, set of 7 (PN: MV5500.10)
  • Filter (PN: MV5500.11)
Size / Weight

575 lbs (260 kg)

72 x 48 x 35 in (183 x 122 x 89 cm)
