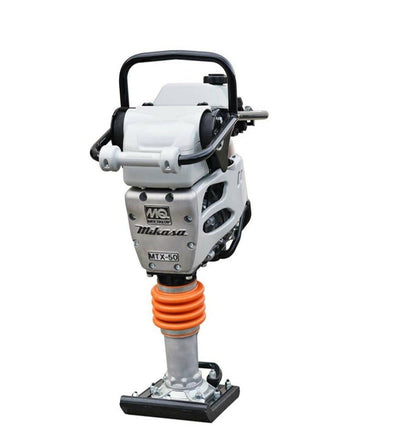

MTX50HD Rammer

Honda GX100 Engine, 2,316 lb impact force, 10.4 in shoe

For applications requiring even greater productivity from enhanced operator comfort, Multiquip's Mikasa MTX50HD 4-cycle rammer is the answer. Now in a lighter package with all the MTX features you have come to appreciate it is certain to become the industry standard for lightweight rammers.

MTX-Series rammers are renowned for performance and ease of operation.
The MTX-Series includes the features most preferred by contractors such as:

  • Cyclonic air cleaners that capture 98% of airborne dust particles
  • Long-lasting laminated wood and steel shoe
  • Low vibration handles for operator comfort
  • Combination hour meter/tachometer
  • Durable guards to protect the engine from damage
  • Redesigned fuel tank to meet EPA standards for evaporative emissions
Unit Specifications
Blows Per Min. Up to 695*
Impact Force 2,316 lbs 1,051 kgf
Shoe Jump Height 2.8 in 70 mm
Shoe Dimensions (LxW) 13.4 x 10.4 in
x mm
Travel Speed Per Min. 55.8 ft 17 m
Fuel Tank Capacity 2.7 qt 2.5 L
Dimensions & Weights
Overall Length 28.1 in 714 mm
Overall Width 13.8 in 350 mm
Overall Height 40.7 in 1,025 mm
Operating Weight 129 lb 59 kg
Engine Specifications
Engine Make/Model Honda GX100
Start Method Recoil
Engine Power 2.8 HP 2.1 kW
Engine RPM 4,100
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
