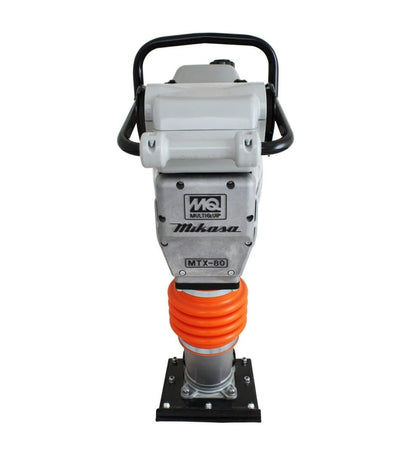

MTX80HDR Rammer with new Honda Engine and 3,505 Pounds of Impact Force

Honda GXR120 Engine, 3,505 lb impact force, 11.2 in shoe

Multiquip's Mikasa MTX-Series rammers now utilize the all new Honda GXR120 engine. The GXR120 is a high output OHC engine, designed specifically for rammer applications. MTX80HDR is ideal for high productivity with 3,505 lbs. of force combined with a 11.2" wide shoe.

MTX-Series rammers are renowned for performance and ease of operation. The MTX-Series includes the features most
preferred by contractors such as:

  • Cyclonic air cleaners that capture 98% of airborne dust particles
  • Long-lasting laminated wood and steel shoe
  • Low vibration handles for operator comfort
  • Combination hour meter/tachometer
  • Durable guards to protect the engine from damage
  • Redesigned fuel tank to meet EPA standards for evaporative emissions

Unit Specifications
Blows Per Min. Up to 678*
Impact Force 3,505 lbf 1590 kgf
Shoe Jump Height 3.1 in 79 mm
Shoe Dimensions (LxW) 13.4 x 11.2 in
340 x 285 mm
Travel Speed Per Min. 49.2 ft 15 m
Fuel Tank Capacity 2.7 qt 2.5 L
Notes: *Variable speed impact — up to maximum impact force.
Dimensions and Weights
Overall Length 31.0 in 788 mm
Overall Width 14.4 in 365 mm
Overall Height 40.4 in 1027 mm
Operating Weight 181 lb 82 kg
Engine Specifications
Engine Make/Model Honda GXR120
Start Method Recoil
Engine Power 3.6 HP 2.7 kW
Engine RPM 4100
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
