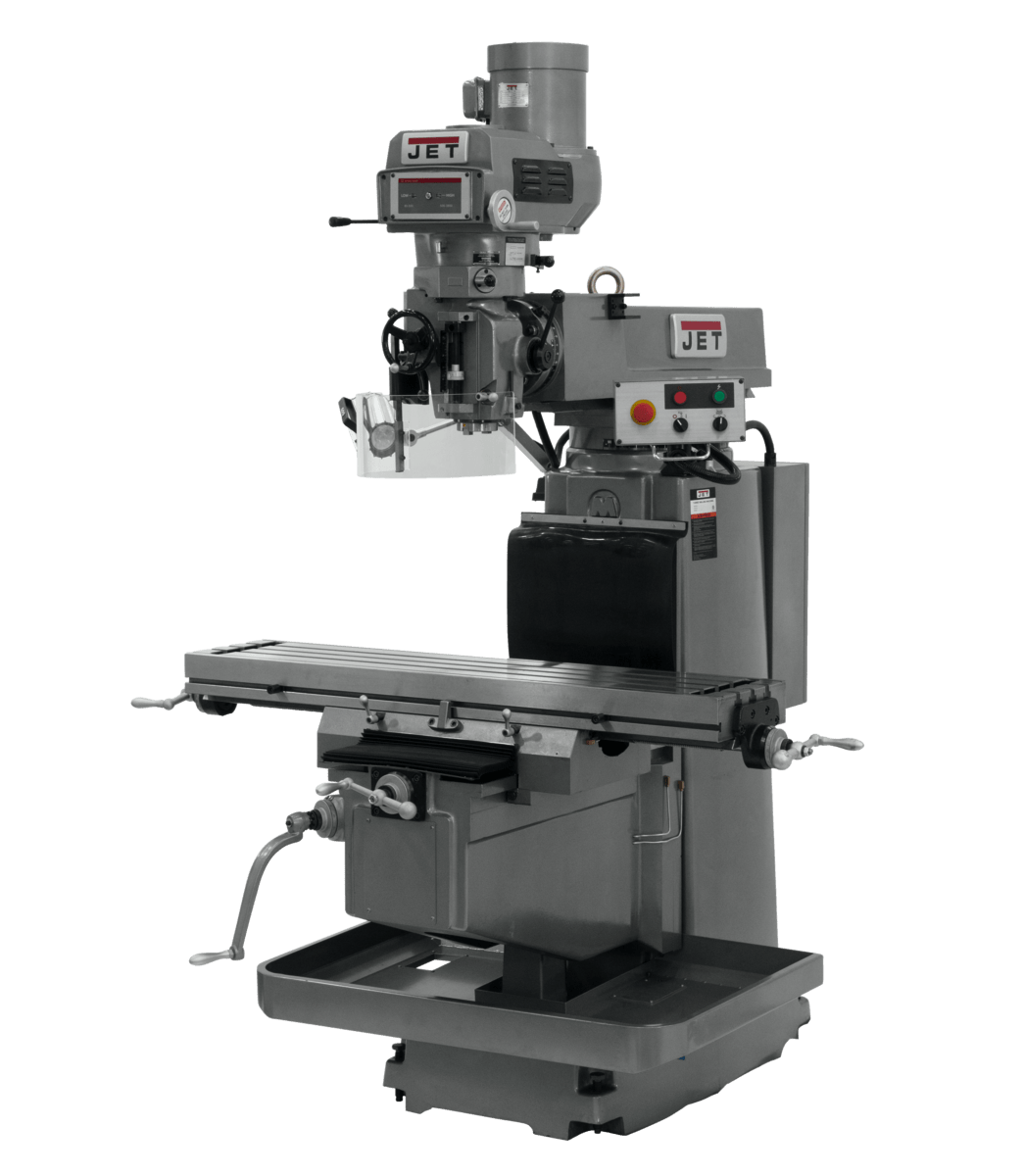

JTM-1254VS with 3-Axis ACU-RITE G-2 MILLPOWER CNC
SKU: JT9-691941
The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency.
JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. CSA/CUS Certified. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.
Features
- 12.1" High resolution display (1024 x 768) with 3D graphics
- 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
- Adjustable gibs throughout
- Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
- Available offline software
- Estimated run time feature
- Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
- Three Precision ground t-slots
- Two 115V outlets on electrical box for Powerfeeds only
- USB + Ethernet compatible
Specs
| Stock Number | 691941 |
|---|---|
| Column Width (In.) | 14-1/4 |
| Distance Spindle to Column (Max.) (In.) | 27-3/4 |
| Max Distance Spindle to Table (In.) | 23 |
| Motor (HP) | 5HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 104-1/4 x 79-7/8 x 92-1/8 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 4-1/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Saddle Width (In.) | 25-5/8 |
| Spindle Taper (In. x TPI) | NST #40 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 15-1/3 |
| Table Longitudinal Travel (In.) | 33-7/8 |
| Table Size (L x W) (In.) | 12 x 54 |
| Travel of Knee (In.) | 19-1/4 |
| Travel of Ram (In.) | 25 |
| Weight (Lbs.) | 3696 |
| Work Table Weight Capacity (Lbs.) | 925 |
