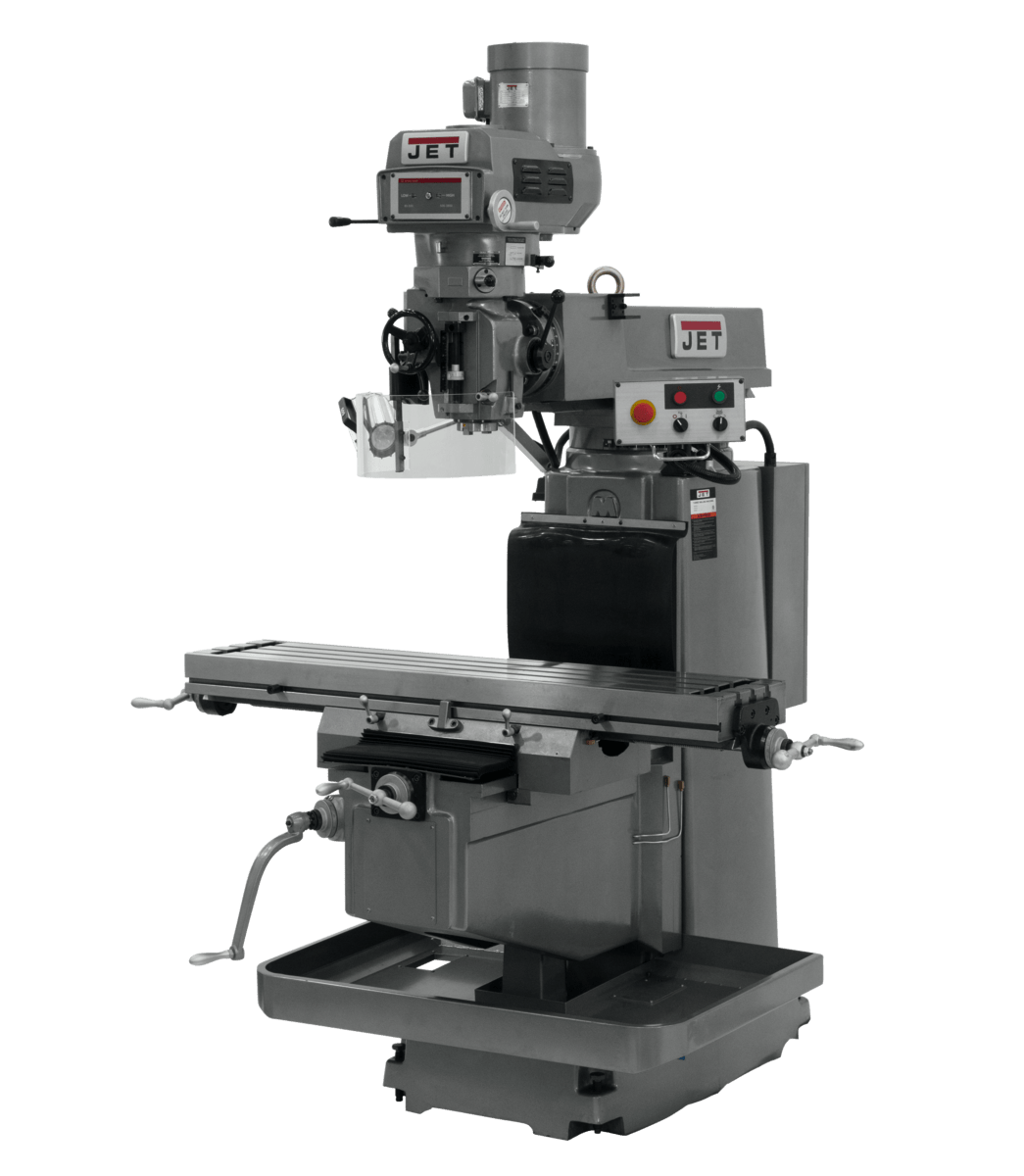

JTM-1254VS with 3-Axis ACU-RITE G-2 MILLPOWER CNC with Air Power Drawbar

by Jet
SKU 691942
Save $11,955.29 Save $11,955.29
Original price $65,454.29
Original price $65,454.29 - Original price $65,454.29
Original price $65,454.29
Current price $53,499.00
$53,499.00 - $53,499.00
Current price $53,499.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls.

The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. CSA/CUS Certified. All the features you've come to expect backed by the industry-leading JET Two Year Warranty

  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
  • Adjustable gibs throughout
  • Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
  • Available offline software
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Three Precision ground t-slots
  • Two 115V outlets on electrical box for Powerfeeds only
  • USB + Ethernet compatible
Specs
More Information
Stock Number 691942
Column Width (In.) 14-1/4
Distance Spindle to Column (Max.) (In.) 27-3/4
Max Distance Spindle to Table (In.) 23
Motor (HP) 5HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.) 104-1/4 x 79-7/8 x 92-1/8
Power Draw Bar Pneumatic
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 4-1/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 80 - 3,800
Saddle Width (In.) 25-5/8
Spindle Taper (In. x TPI) NST #40
Spindle Travel (In.) 5
Style (Type) CNC
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 15-1/3
Table Longitudinal Travel (In.) 33-7/8
Table Size (L x W) (In.) 12 x 54
Travel of Knee (In.) 19-1/4
Travel of Ram (In.) 25
Weight (Lbs.) 3696
Work Table Weight Capacity (Lbs.) 925
