Jet | SKU: JT9-690940

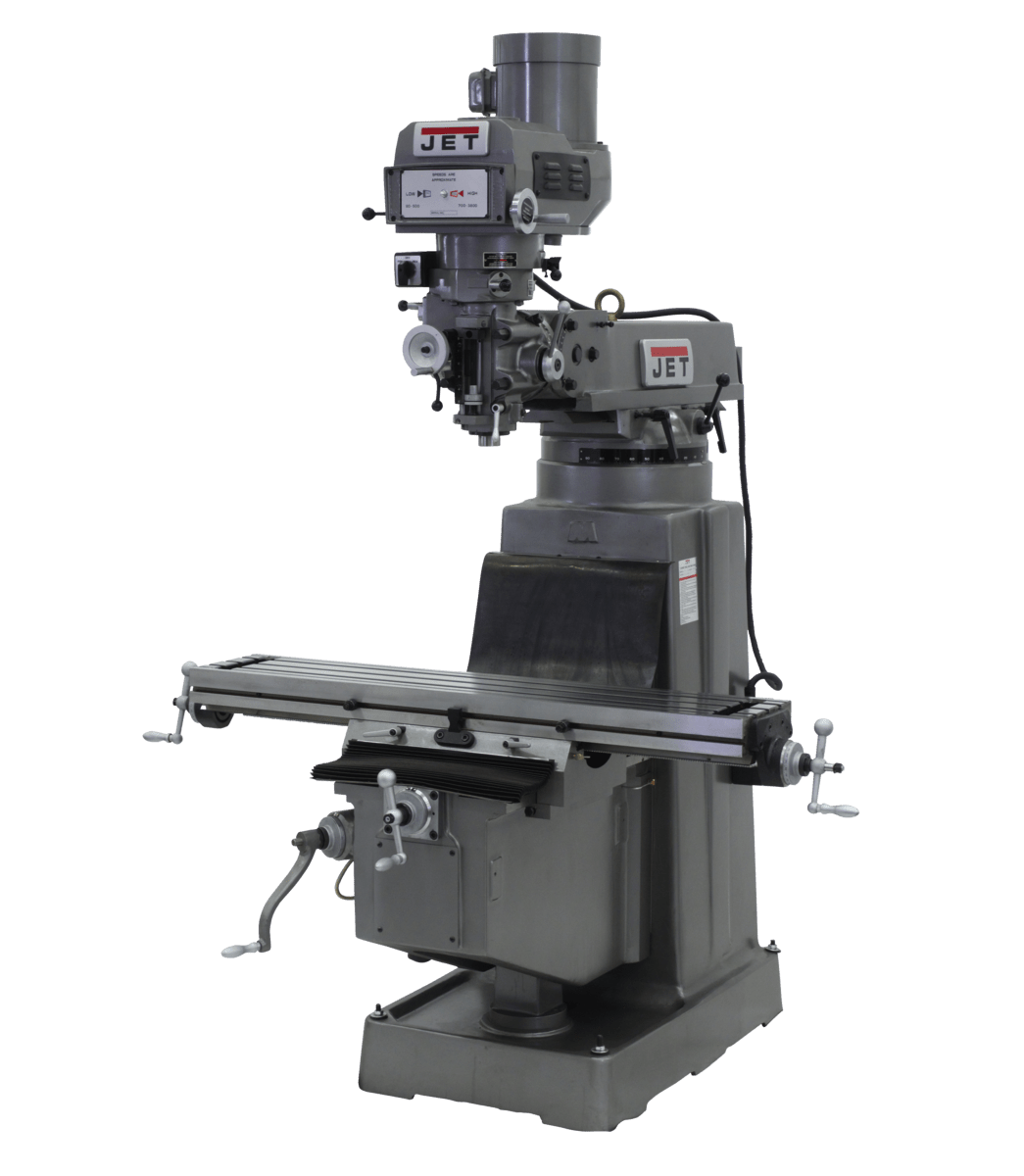

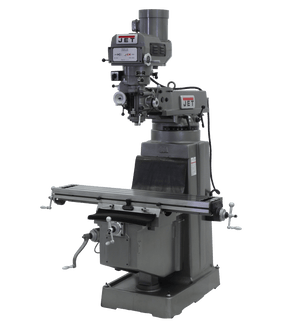

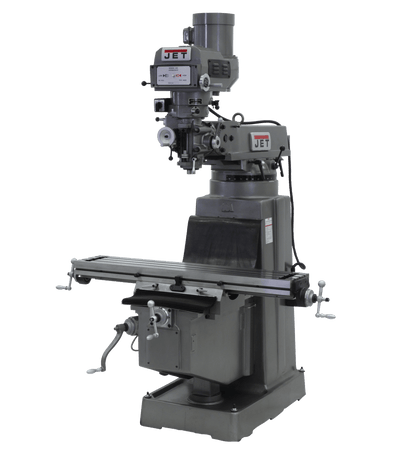

JTM-1050 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC

Name: JTM-1050 Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC
Brand: Jet
SKU: JT9-690940
Price: 44759.00 USD
Availability: InStock

$44,759⁰⁰ ~~$54,989⁶³~~

Shipping calculated at checkout.

Safe & Secure Payments.

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls.

The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

Features

12.1" High resolution display (1024 x 768) with 3D graphics
Available offline software
Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
Estimated run time feature
Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
Powerful DC Servo motor assemblies that include mounting castings and hardware
Precision ground ball screws eliminate backlash for precise lateral movements
USB + Ethernet compatible

Specs

More Information
Stock Number	690940
CNC Package	ACU-RITE MILLPWR® G2
Collet Capacity	1/8 - 7/8
Distance Spindle to Column (Max.) (In.)	26
Max Distance Spindle to Table (In.)	19
Motor (HP)	3 HP, 230/460V, 3Ph
Number of Axis	3
Overall Dimensions (L x W x H) (In.)	96 x 69 x 87
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	70 - 3,800
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Style (Type)	CNC
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	15-1/4
Table Longitudinal Travel (In.)	35
Table Size (L x W) (In.)	10 x 50
Travel of Knee (In.)	14-1/4
Travel of Ram (In.)	20-1/2
Weight (Lbs.)	3200
Work Table Weight Capacity (Lbs.)	720
