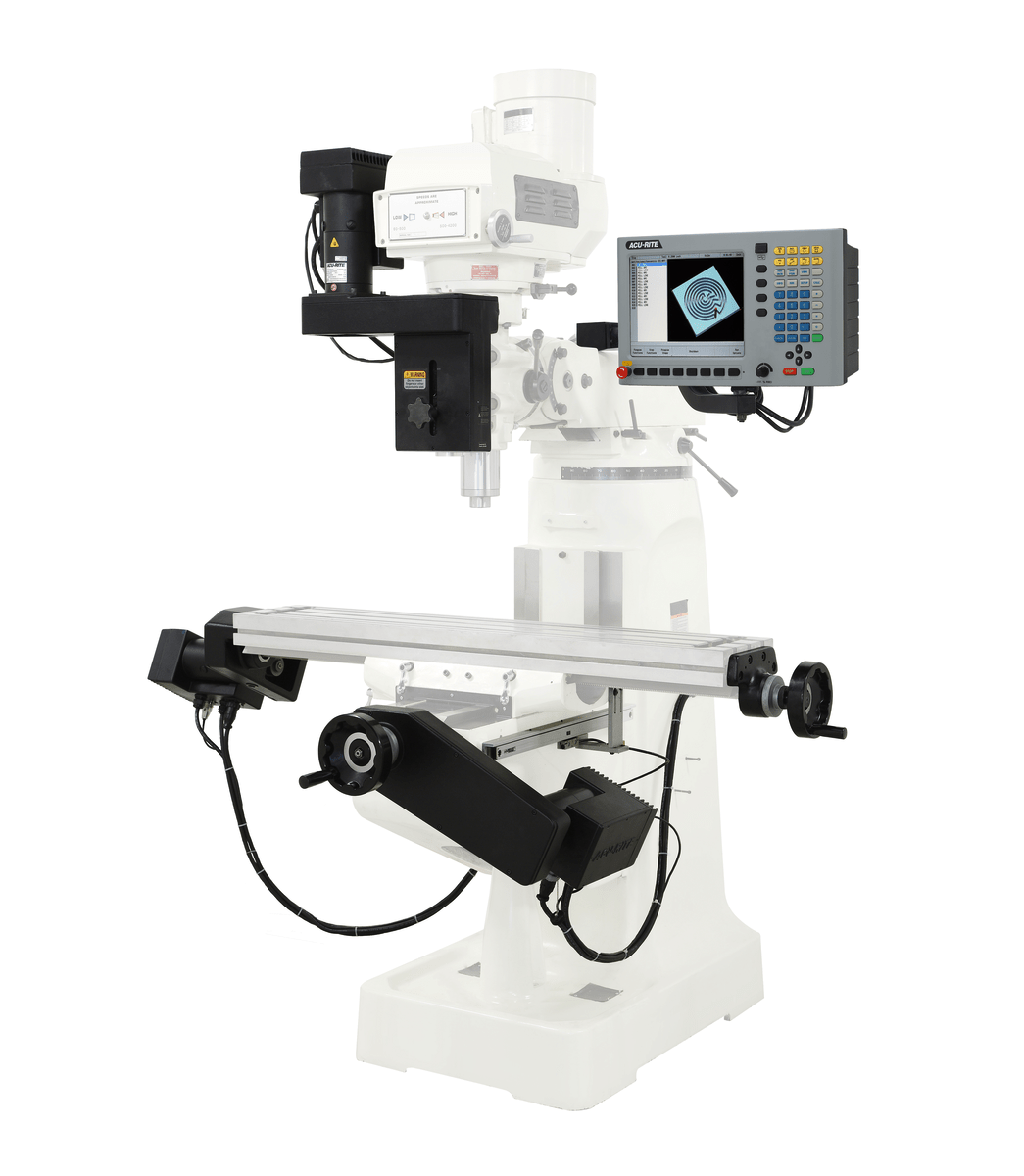

JTM-4VS Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC
JTM-4VS Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Safe & Secure Payments.
CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps.
JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

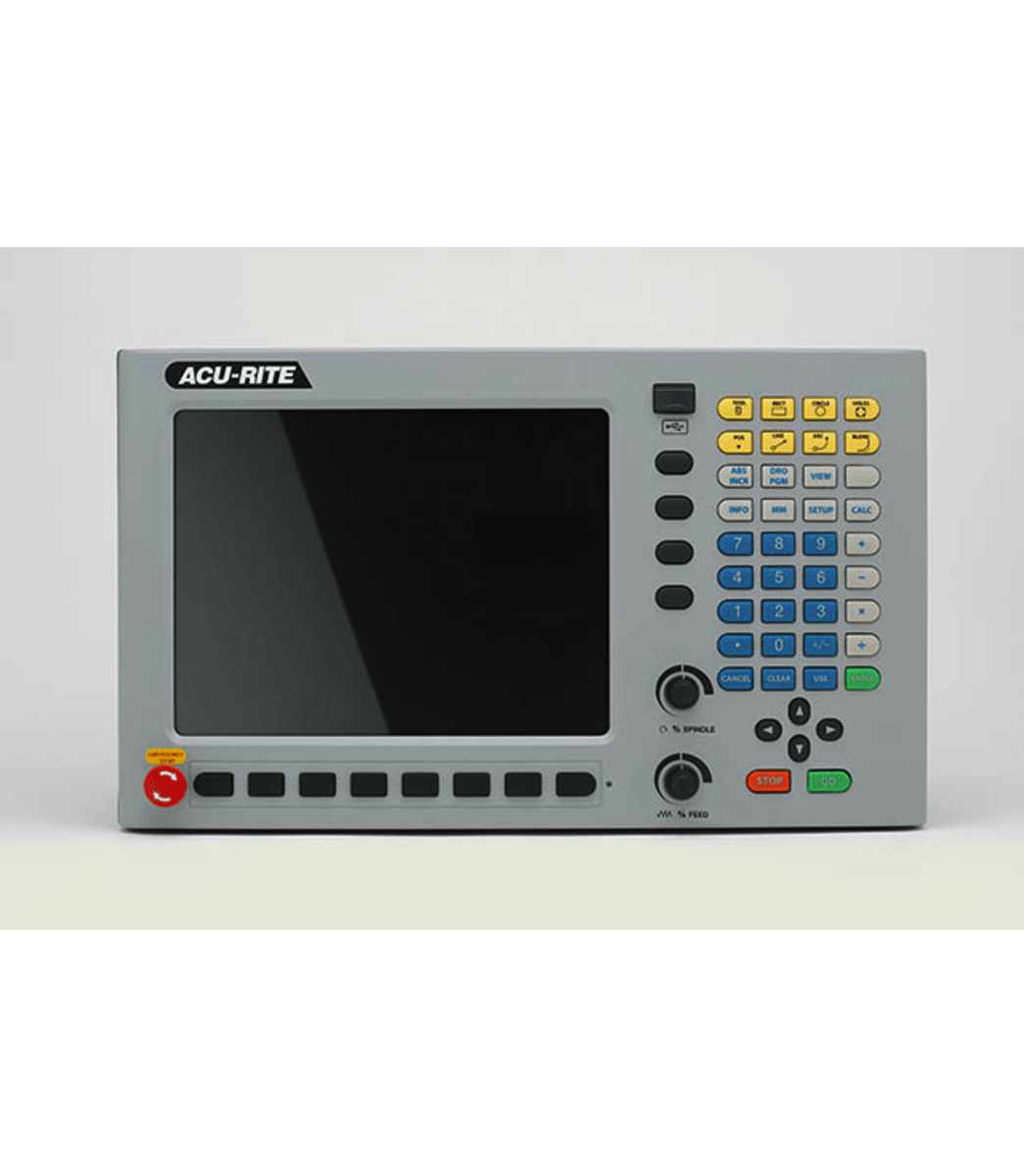

- 12.1" High resolution display (1024 x 768) with 3D graphics
- Available offline software
- Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
- Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
- Estimated run time feature
- Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously

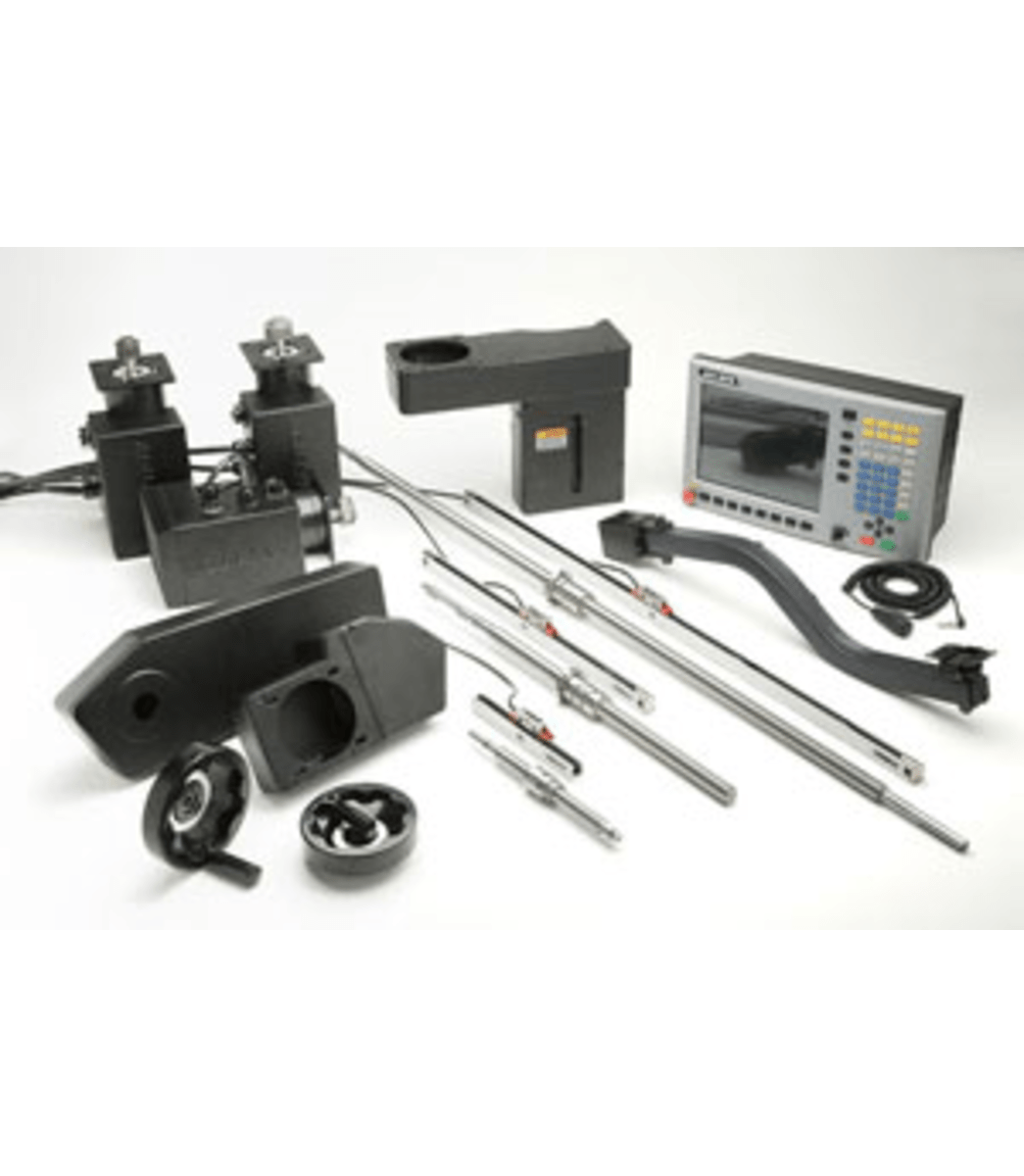

- Powerful DC Servo motor assemblies that include mounting castings and hardware
- Precision ground ball screws eliminate backlash for precise lateral movements
- USB + Ethernet compatible
Specs
Stock Number | 690938 |
---|---|
CNC Package | ACU-RITE MILLPWR® G2 |
Collet Capacity | 1/8 - 7/8 |
Distance Spindle to Column (Max.) (In.) | 19 |
Max Distance Spindle to Table (In.) | 17-1/2 |
Motor (HP) | 3 HP, 230/460V, 3Ph |
Number of Axis | 2 |
Overall Dimensions (L x W x H) (In.) | 66 x 63 x 85 |
Prop 65 | Cancer and Reproductive Harm |
Quill Diameter (In.) | 3-3/8 |
Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
Range of Spindle Speeds (RPM) | 60 - 4,200 |
Spindle Taper (In. x TPI) | R-8 |
Spindle Travel (In.) | 5 |
Style (Type) | CNC |
T-Slot Centers (In.) | 2-1/2 |
Table Cross Travel (In.) | 12 |
Table Longitudinal Travel (In.) | 34 |
Table Size (L x W) (In.) | 9 x 49 |
Travel of Knee (In.) | 14-1/2 |
Travel of Ram (In.) | 13-3/8 |
Weight (Lbs.) | 2420 |
Work Table Weight Capacity (Lbs.) | 660 |
