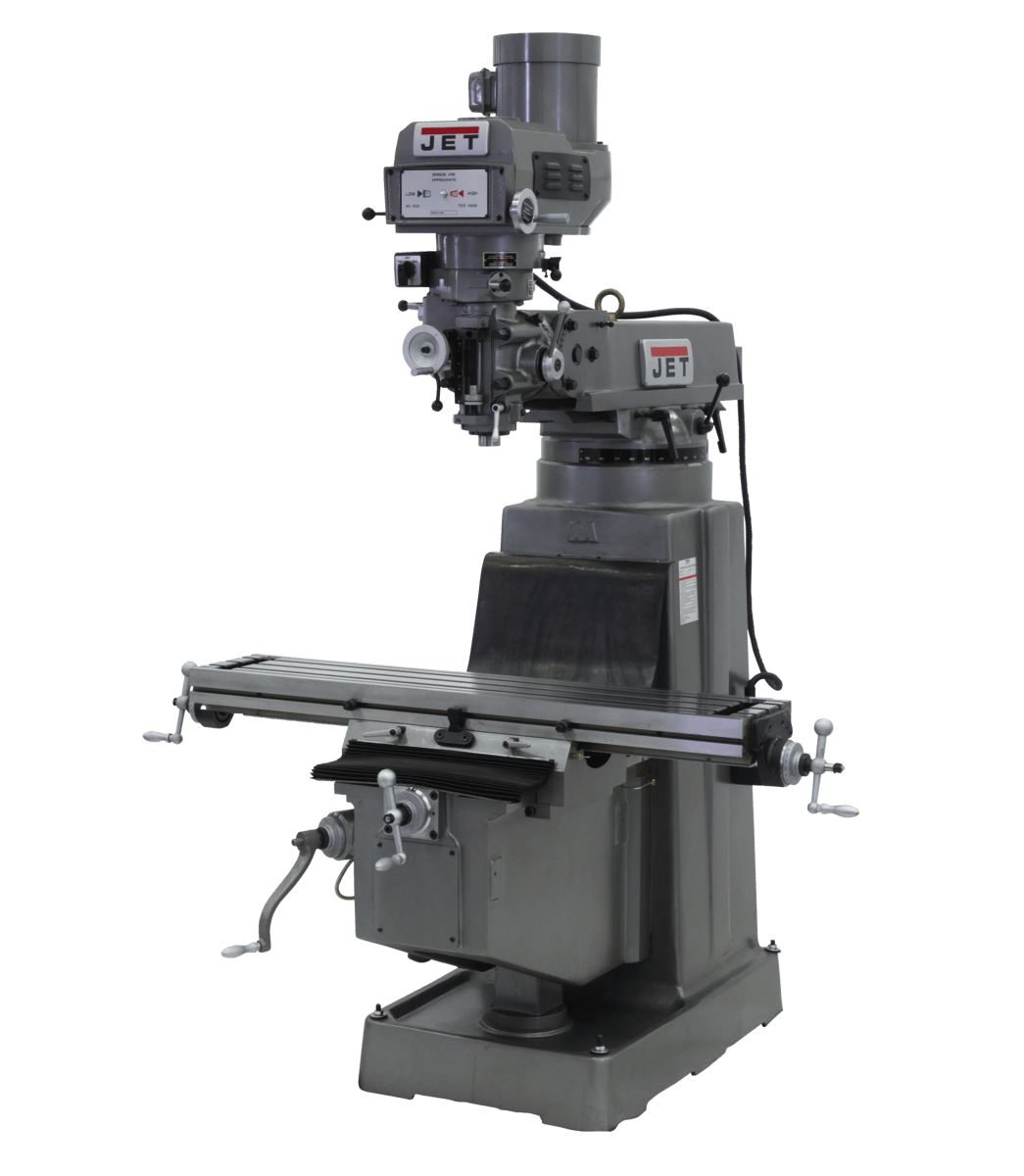

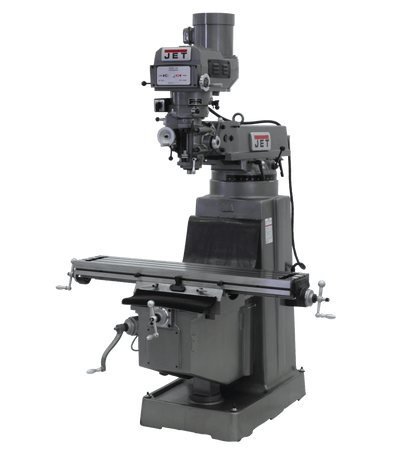

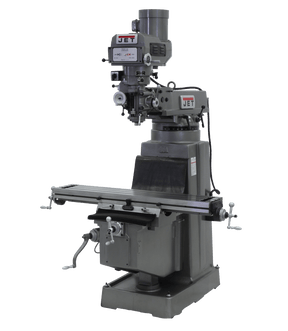

JTM-1050 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC
Skip to content

JTM-1050 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC

by Jet
SKU JT9-690930
Save $11,000.91 Save $11,000.91
Original price $59,129.91
Original price $59,129.91 - Original price $59,129.91
Original price $59,129.91
Current price $48,129.00
$48,129.00 - $48,129.00
Current price $48,129.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls.

The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

Features

  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • Available offline software
  • Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Precision ground ball screws eliminate backlash for precise lateral movements
  • USB + Ethernet compatible
Specs
More Information
Stock Number 690930
CNC Package ACU-RITE MILLPWR® G2
Collet Capacity 1/8 - 7/8
Distance Spindle to Column (Max.) (In.) 26
Max Distance Spindle to Table (In.) 19
Motor (HP) 3 HP, 230/460V, 3Ph
Number of Axis 2
Overall Dimensions (L x W x H) (In.) 96 x 78 x 88
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 70 - 3,800
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) CNC
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 15-1/4
Table Longitudinal Travel (In.) 35
Table Size (L x W) (In.) 10 x 50
Travel of Knee (In.) 14-1/4
Travel of Ram (In.) 20-1/2
Weight (Lbs.) 3200
Work Table Weight Capacity (Lbs.)

720
