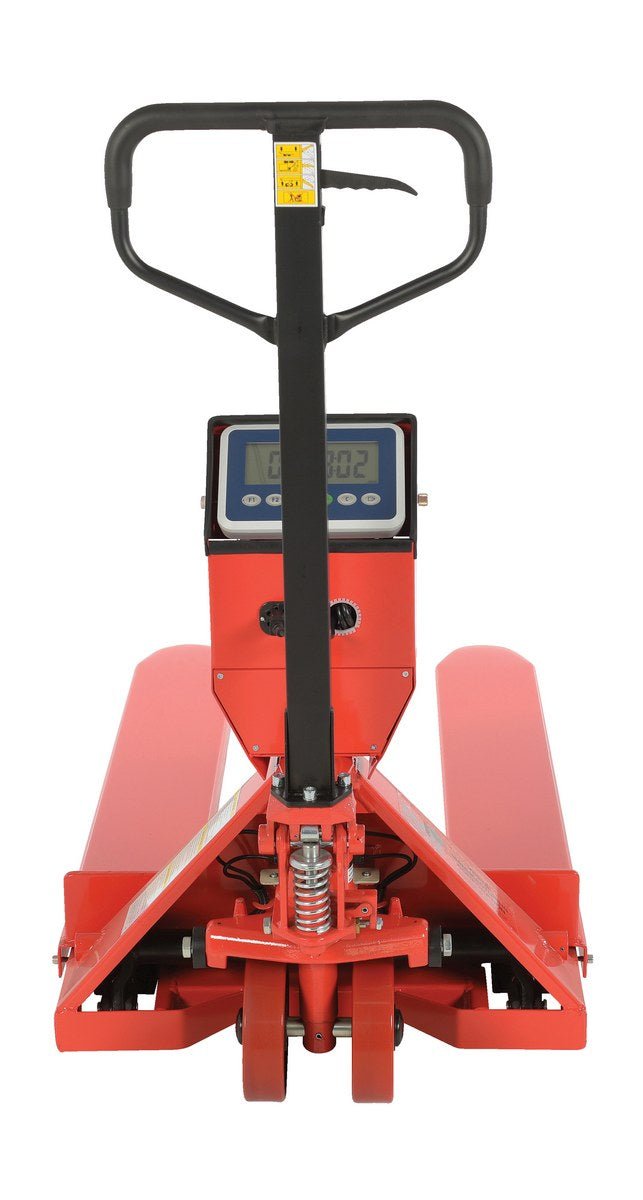

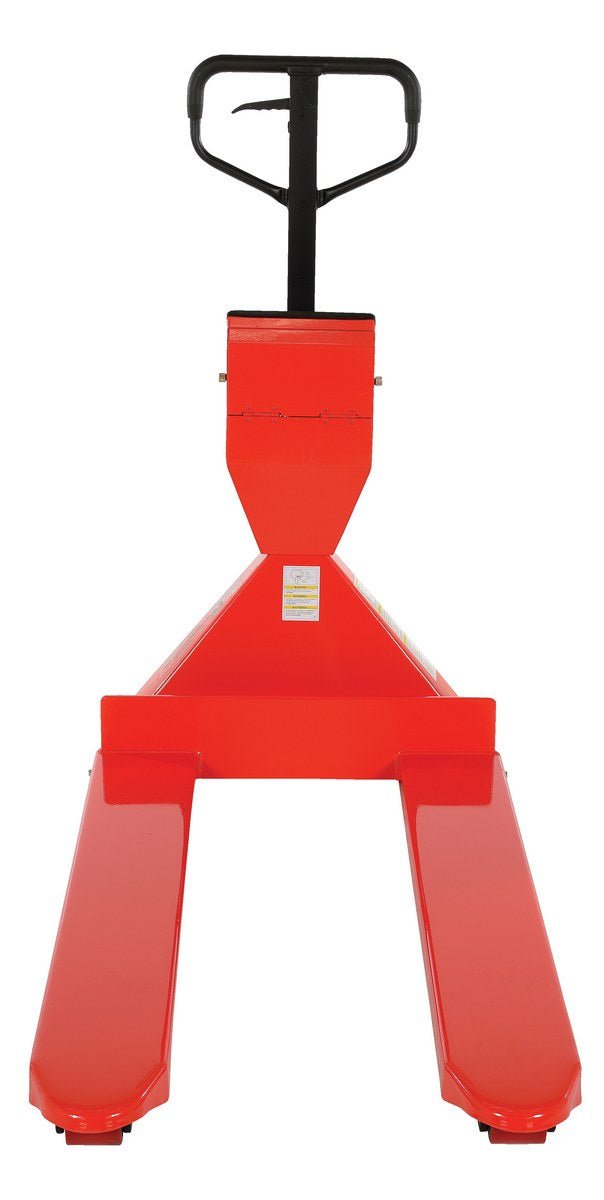

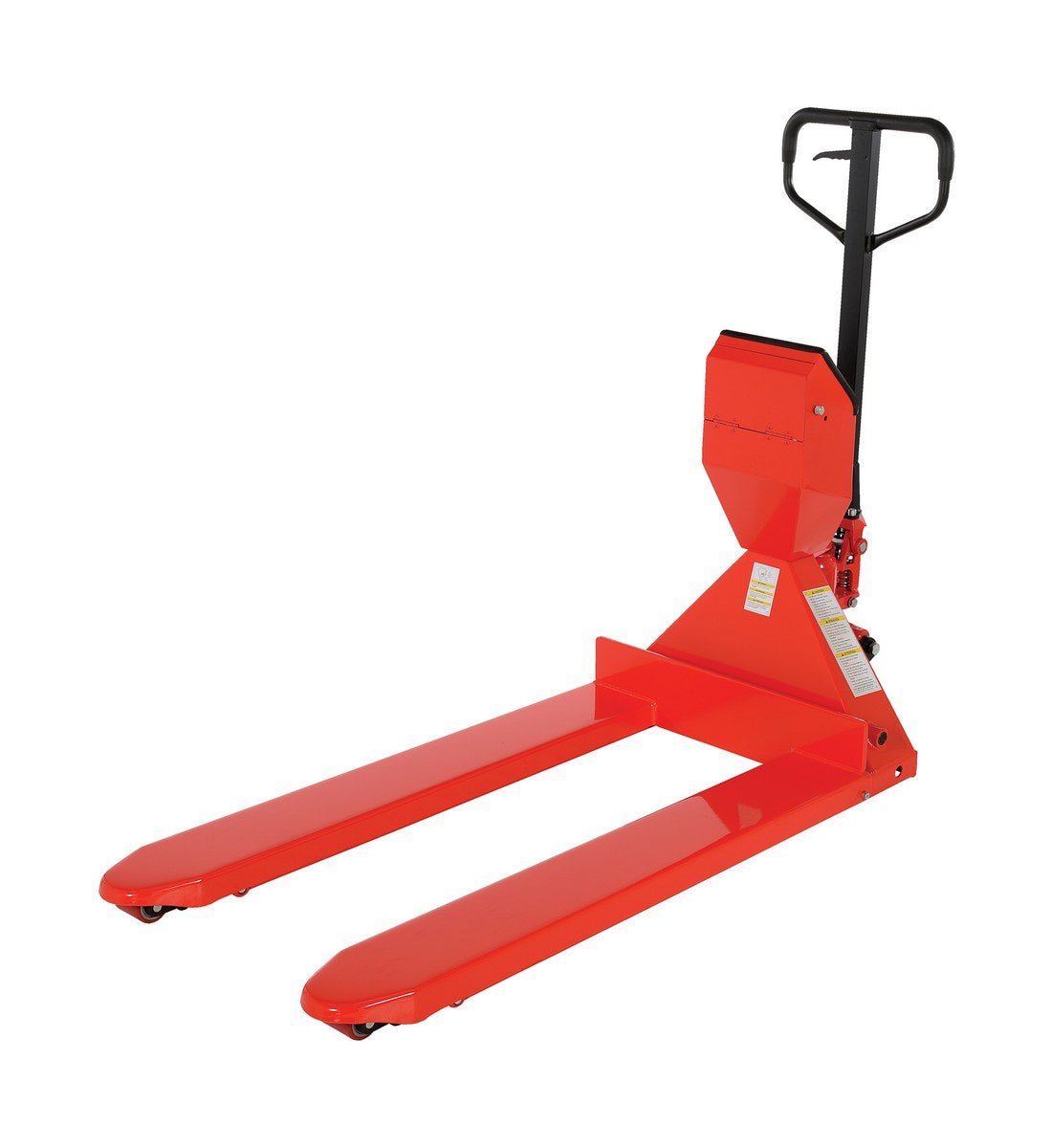

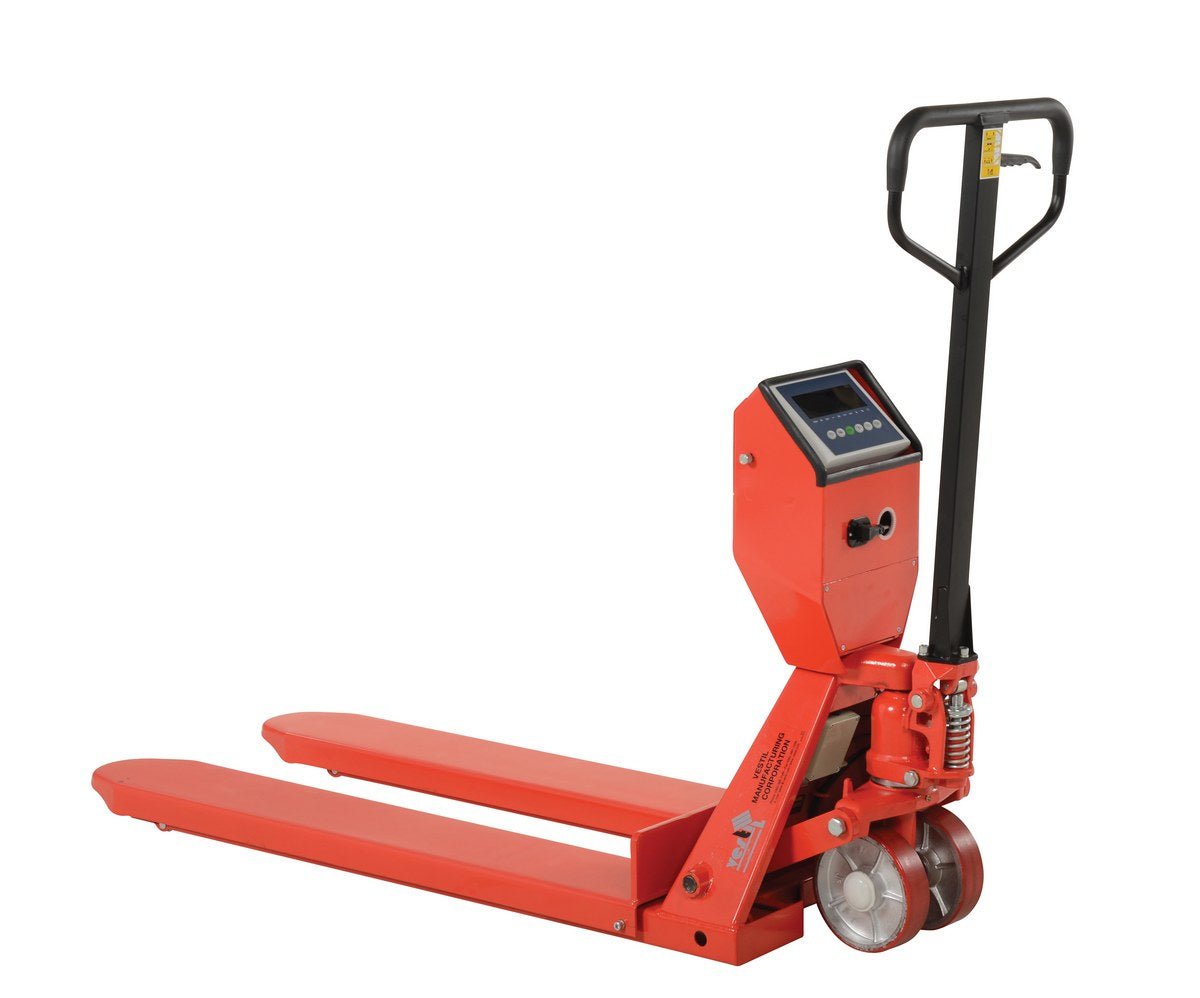

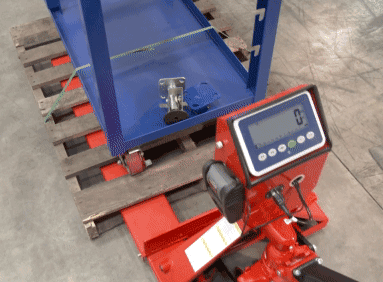

Pallet Trucks with Digital Scale

The Pallet Truck with Digital Scale allows you to weigh your load on the spot for maximum efficiency.

The frame uses heavy-duty steel construction for maximum strength and durability. This model is very user friendly and is suitable for low height lifting. The built-in scale allows you to weigh your load as you are handling it. The scale is selectable in a variety of increments to adjust to the size of your load. It has keyboard calibration and functional setup with automatic zero capabilities. Digital filtering is used to help compensate for vibration and motion to make the Pallet Truck with Digital Scale smooth and accurate. Scale accuracy is +/-0.1% of the applied load. Forks are 7" wide each. Factory calibrated for shipping destination. AC adaptor included. Powered by 6 AA batteries. (Four (4) AA batteries included in units PM-2048-SCL-LP-SS and PM-2748-SCL-LP-SS).

NTEP Pallet Trucks are approved legal for trade, certified for commercial transactions, and are supplied with certificate of compliance.

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate

Pallet Truck with Digital Scale
Model	Image	PDF's	Uniform Capacity (lbs)	Overall Fork Dimensions	Fork Service Range	Wt. (lbs)
PM-2048-SCL-LP		-	5,000	22-3/8"W x 48"L	3" to 7-1/2"	335
PM-2748-SCL-LP			5,000	27-1/2"W x 48"L	3" to 7-1/2"	335
Economy Pallet Truck with Digital Scale
PM-2748-SCL-LP-E		-	5,000	27"W x 48"L	3-1/8" to 7-1/4"	305
Pallet Truck with Scale And Printer
PM-2048-SCL-LP-PT*		-	5,000	22-3/8"W x 48"L	3" to 7-1/2"	335
PM-2748-SCL-LP-PT*			5,000	27-1/2"W x 48"L	3" to 7-1/2"	340
304 Stainless Steel Pallet Truck with Scale
PM-2048-SCL-LP-SS			5,000	21-7/8"W x 45-11/16"L	3-3/8" to 8"	309
PM-2748-SCL-LP-SS		-	5,000	27-1/2"W x4 5-11/16"L	3-3/8" to 8"	375
Legal for Trade Pallet Trucks (NTEP APPROVED)
PM-2146-TL-SCL-LP		-	5,000	21"-46"	3"-7-1/2"	340
PM-2746-TL-SCL-LP			5,000	27"-46"	2-9/16"-7-1/2"	350

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
