Electric Order Picker 216" Lift

EOP22 Series Electric Order Picker — Reliable High-Reach Order Fulfillment for Industrial Environments

The EOP22 Series Electric Order Picker is purpose-built for efficient order picking from racking and storage systems in warehouses, manufacturing floors, and distribution facilities. Available in two lift height configurations — 165" and 216" — this unit is engineered to serve operators who require consistent, high-reach performance across demanding daily cycles. With a 220 lb load capacity and lithium battery power, the EOP22 is a dependable solution for trades professionals and facility managers who need reliable uptime and precision material handling.

Unlike conventional order pickers, the EOP22 Series features a 24V/200Ah Lithium battery system, delivering longer run times and faster recharge cycles compared to traditional lead-acid alternatives. The inclusion of Electronic Power Steering (EPS) and a Curtis® Controller provides precise, responsive handling that reduces operator fatigue during extended shifts.

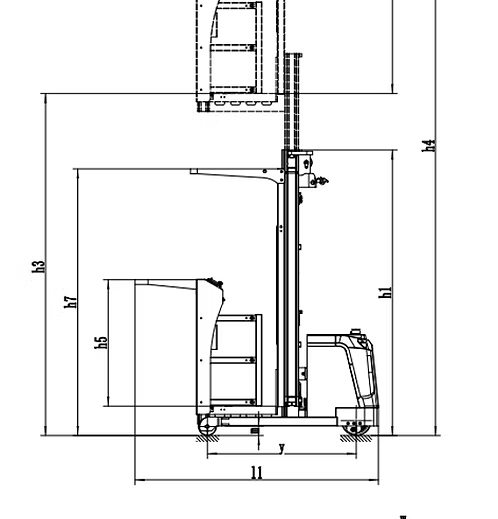

Technical Specifications

Key Features & Benefits

Electronic Power Steering (EPS)

EPS provides smooth, effortless directional control without the mechanical resistance of conventional steering systems. For operators navigating tight aisle configurations over long shifts, this translates directly to reduced fatigue and more accurate positioning at height.

AC Drive Motor

The AC Drive Motor delivers consistent torque and responsive acceleration across the full range of operating conditions. AC motors are known for requiring less maintenance than brush-type DC motors, reducing downtime in high-usage warehouse environments.

Curtis® Controller

The industry-trusted Curtis® Controller provides precise management of drive and lift functions, enabling predictable, repeatable performance. Its programmability allows for fine-tuned operation suited to specific facility requirements.

24V / 200Ah Lithium Battery

The lithium battery system offers superior energy density and faster recharge times compared to conventional lead-acid batteries, supporting longer operational windows and reduced charging infrastructure demands. Lithium chemistry also eliminates the maintenance requirements associated with flooded lead-acid cells.

Polyurethane Tires

Polyurethane tires provide low rolling resistance and excellent durability on smooth warehouse and manufacturing floor surfaces. They are non-marking, making them suitable for facilities with floor cleanliness requirements.

Ergonomic Handle and Controls

The ergonomic handle and control layout is designed to minimize operator strain during repetitive picking tasks. Intuitive control placement supports faster operator onboarding and more consistent throughput.

High-Quality Steel Construction

The EOP22 Series is constructed with high-quality steel and durable components built to withstand various terrains, heavy usage, impacts, and directional changes. This robust build ensures dependable long-term performance in demanding industrial environments.

Common Applications

Warehouse Order Picking

The EOP22 is designed specifically for picking orders from racking systems, allowing operators to efficiently access stored inventory at heights up to 216".

Storage Facility Operations

Suited for use in storage facilities where reliable vertical reach and precise load placement are required on a daily basis.

Manufacturing Floor Material Handling

The unit's durable steel construction and polyurethane tires make it well-suited for manufacturing environments where floor conditions and heavy usage cycles are common.

Distribution Center Fulfillment

Ideal for distribution operations that require consistent, high-volume order picking with minimal downtime, supported by the lithium battery's extended run capability.

Compatible Materials

• Smooth concrete warehouse floors
• Manufacturing floor surfaces
• Standard pallet racking systems
• Industrial storage shelving
