Full Powered Electric Straddle Stacker - DC Motor with 119" Lift

EKKO EB12E Full Powered Electric Straddle Stacker — 2,640 lb Capacity, 119.4" Raised Height

The EKKO EB12E is a full-powered electric straddle stacker engineered to combine the functional versatility of a forklift, reach truck, and walkie stacker into a single compact unit. Designed for contractors, warehouse operators, and trades professionals, it is purpose-built for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and general warehousing applications. With a 2,640 lb load capacity and a raised height of 119.4 inches (9.95 ft), it handles demanding material movement tasks with confidence.

Unlike standard walkie stackers, the EB12E features both fully powered drive and lift motors, adjustable fork width, and adjustable leg width, giving operators the flexibility to adapt to varying pallet sizes and aisle configurations. High-quality steel construction with robotic welding ensures durability under continuous use, impact, and directional changes across varied terrain.

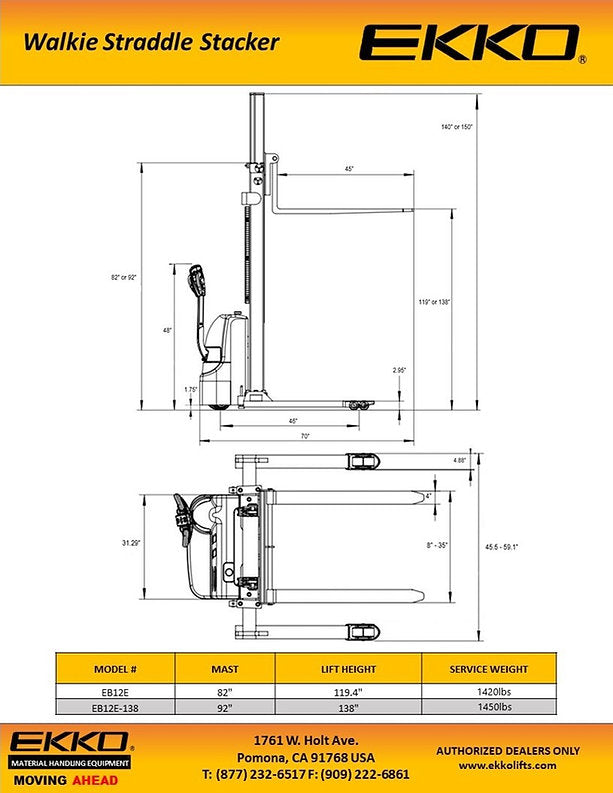

Technical Specifications

Key Features & Benefits

Full Powered Drive and Lift Motors

Both the drive and lift functions are fully powered via independent 24V motors, eliminating the manual effort required by semi-electric alternatives. For contractors moving heavy loads repeatedly throughout a shift, this reduces operator fatigue and increases throughput. The Curtis Controller provides reliable, proven motor management trusted across the material handling industry.

Adjustable Forks and Legs

Fork width adjusts from 8.3 to 33.5 inches and leg width from 45.7 to 59.1 inches, allowing the EB12E to accommodate a wide variety of pallet sizes and load configurations. This adaptability is critical on job sites and in warehouses where standardized pallet dimensions are not always guaranteed.

Steel Construction with Robotic Welding

The frame is fabricated from high-quality steel using robotic welding processes, producing consistent, high-integrity welds throughout. This construction is built to withstand impact, directional changes, and continuous use across varied surfaces and applications.

Polyurethane Wheels

Polyurethane wheels deliver durability and floor protection suited to smooth warehouse floors, loading docks, and manufacturing surfaces. They resist wear and maintain traction during loaded travel and cornering maneuvers.

Internal Charger Included

The built-in internal charger eliminates the need for a separate external charging unit, reducing equipment costs and simplifying charging logistics. Operators can plug in directly at the end of a shift without managing additional hardware.

Ergonomic Handle and Controls

The ergonomic handle and control layout are designed to reduce operator strain during extended use. Intuitive controls allow for efficient operation during loading, unloading, and stacking tasks.

Common Applications

Loading and Unloading Trucks

The EB12E's 2,640 lb capacity and powered drive make it well suited for moving palletized freight on and off delivery trucks at loading docks.

Loading Docks

Adjustable leg and fork widths allow the stacker to navigate dock environments and handle varying pallet configurations efficiently.

Stock Rooms

The compact straddle design and adjustable legs allow the EB12E to operate in tighter storage environments where full-size forklifts cannot maneuver.

Manufacturing Floors

Polyurethane wheels and durable steel construction handle the demands of active manufacturing environments, including frequent directional changes and varied flooring conditions.

Warehousing

With a raised height of 119.4 inches and a 45.3-inch fork length, the EB12E is capable of stacking loads to standard warehouse racking heights.

Compatible Materials

• Standard wooden pallets
• Plastic pallets
• Palletized construction materials
• Boxed and crated goods
• Smooth concrete and warehouse flooring surfaces
• Loading dock surfaces

Frequently Asked Questions

Q: Is the battery included with the EB12E?
A: Yes. The EB12E includes two 12V / 100Ah batteries as part of the standard package.

Q: Does the EB12E require an external charger?
A: No. The EB12E features a built-in internal charger, so no separate external charging unit is required.

Q: Can the fork and leg widths be adjusted to fit different pallet sizes?
A: Yes. Fork width is adjustable from 8.3 to 33.5 inches and leg width from 45.7 to 59.1 inches to accommodate a range of pallet and load configurations.

Q: What is the maximum raised height of the EB12E?
A: The EB12E raises loads to a maximum height of 119.4 inches (9.95 feet).

Q: What warranty does the EB12E carry?
A: The EB12E is covered by a 3-year limited warranty.
