EOP150 Series Electric Order Picker — High-Reach Lithium-Powered Order Picking for Industrial Warehouses

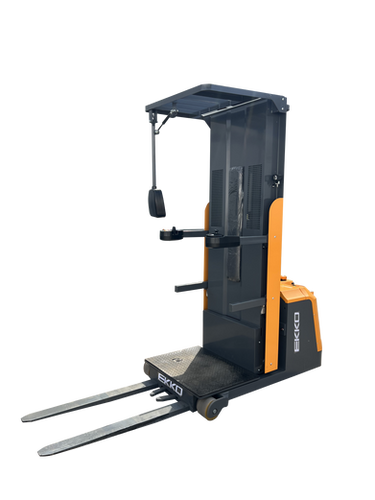

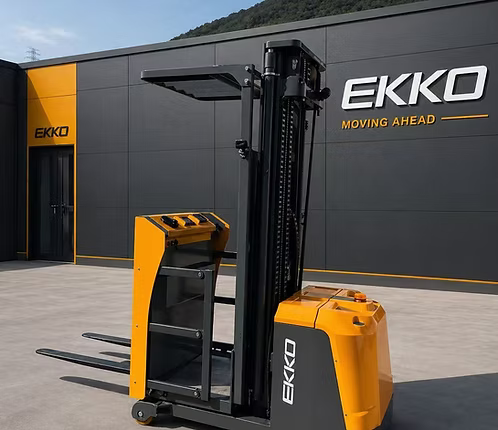

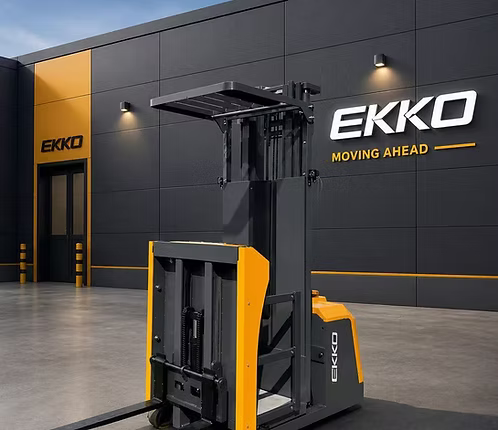

The EOP150 Series Electric Order Picker is a standing-operation, lithium-powered material handling machine engineered specifically for efficient order picking in racking and storage facilities, manufacturing floors, and warehouses. Available in three lift height configurations — 165", 216", and 275" — it supports a load capacity of 1,500 lbs, making it suitable for a wide range of industrial picking applications. The unit is constructed with high-quality steel and durable components designed to withstand heavy usage, impacts, and frequent directional changes.

Unlike lead-acid alternatives, the EOP150 Series runs on a 24V/200Ah lithium battery with a hoist-lift replacement method, reducing downtime and maintenance demands in high-throughput environments. The combination of a Curtis® controller, AC drive motor, and Electric Power Steering (EPS) delivers responsive, consistent performance across multi-shift operations.

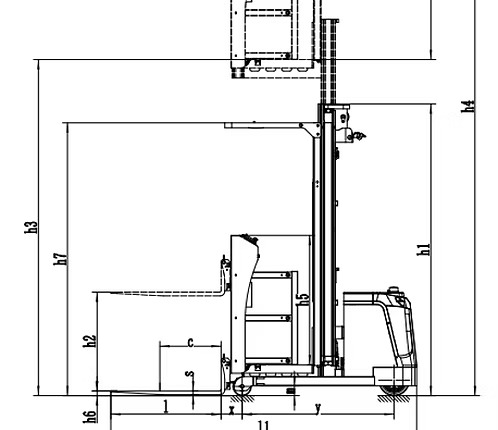

Technical Specifications

Key Features & Benefits

24V / 200Ah Lithium Battery with Hoist-Lift Replacement

The lithium battery configuration offers a more efficient energy profile compared to lead-acid systems, supporting sustained operation across demanding picking cycles. The hoist-lift battery replacement method enables fast swaps without manual handling, minimizing downtime between shifts in high-volume warehouse environments.

Three Lift Height Options: 165" | 216" | 275"

With three available lift heights, the EOP150 Series can be matched to the specific racking heights of a given facility. This flexibility makes it suitable for both mid-rise and high-bay storage configurations without compromising load capacity.

Curtis® Controller with AC Drive Motor

The Curtis® controller paired with an AC drive motor delivers precise, consistent speed and torque management across all four travel speed gears. This combination supports reliable performance and allows operators to match travel speed to the specific demands of narrow aisle or open floor navigation.

Electric Power Steering (EPS)

Electronic Power Steering reduces operator fatigue during extended picking shifts by minimizing the physical effort required for directional changes and tight maneuvering. This is particularly valuable in facilities with narrow aisles, where frequent steering inputs are required throughout a shift.

Electromagnetic Brake System

The electromagnetic brake provides immediate, consistent stopping performance without reliance on mechanical friction components that wear over time. This contributes to predictable braking behavior when operating at elevated heights or in congested warehouse aisles.

Auxiliary Fork and Ergonomic Controls

The auxiliary fork expands the machine's picking versatility, allowing operators to handle a broader range of load configurations directly from racking. Ergonomic handle and control placement supports operator efficiency and reduces strain during repetitive picking tasks.

Common Applications

Warehouse Order Picking from Racking Systems

The EOP150 Series is purpose-built for picking individual SKUs or cases directly from racking, with lift heights up to 275" enabling access to high-bay storage positions.

Distribution Center Fulfillment Operations

In distribution environments where operators must travel across long aisles and pick from multiple rack levels, the four-speed travel control and lithium battery support efficient, consistent throughput.

Manufacturing Floor Parts Retrieval

On manufacturing floors where components are stored in vertical racking adjacent to production lines, the EOP150 Series enables fast vertical access to stored parts without requiring a separate lift crew.

Storage Facility Stock Management

For storage facilities managing a wide variety of stored goods at varying heights, the three available lift height configurations allow the machine to be matched precisely to the facility's racking infrastructure.

Compatible Materials

• Standard palletized loads up to 1,500 lbs
• 1000×1200 mm pallets (114" minimum aisle width)
• 800×1200 mm pallets (118" minimum aisle width)
• Racked goods accessible via auxiliary fork configuration
• Loads within a 20" load center at up to 42" fork length

Frequently Asked Questions

Q: What lift height configurations are available for the EOP150 Series?
A: The EOP150 Series is available in three lift height options: 165" (SKU: EOP150-165LI), 216" (SKU: EOP150-216LI), and 275" (SKU: EOP150-275LI).

Q: What type of battery does the EOP150 Series use?
A: The EOP150 Series is equipped with a 24V / 200Ah lithium battery. The battery uses a hoist-lift replacement method, enabling efficient swaps during multi-shift operations.

Q: What is the maximum load capacity of the EOP150 Series?
A: The EOP150 Series supports a maximum load capacity of 1,500 lbs at a 20" load center.

Q: What are the minimum aisle width requirements for the EOP150 Series?
A: The EOP150 Series requires a minimum aisle width of 114" for 1000×1200 mm pallets and 118" for 800×1200 mm pallets.

Q: What travel speeds does the EOP150 Series support?
A: The machine provides four travel speed gears: 1st gear at 3.10 mph, 2nd gear at 1.55 mph, 3rd gear at 0.75 mph, and 4th gear at 0.37 mph, allowing operators to select appropriate speeds for different aisle and load conditions.
