Full Powered Electric Straddle Stacker - 2,640 lb Capacity at 138" Lift Height

EKKO EB12E-138 Full Powered Electric Straddle Stacker — 2,640 lb Capacity at 138" Lift Height

The EKKO EB12E-138 is a fully powered electric straddle stacker engineered to deliver the combined versatility of a forklift, reach truck, and walkie stacker in a single compact unit. Designed for contractors and trades professionals, it handles loading and unloading tasks on trucks and loading docks, as well as stock room replenishment, manufacturing floor material movement, and warehouse operations. With a 2,640 lb load capacity and an 11.5 ft raised height, it covers the demands of most commercial and industrial lift applications.

Unlike standard walkie stackers that offer fixed fork geometry, the EB12E-138 features fully adjustable forks (8.3"–33.5") and adjustable legs (45.7"–59.1"), giving operators the flexibility to handle varied pallet sizes and aisle widths without swapping equipment. The machine is built from high-quality steel with robotic welding and is driven by durable polyurethane wheels, making it capable of withstanding varied terrain, repeated directional changes, and high-cycle usage environments.

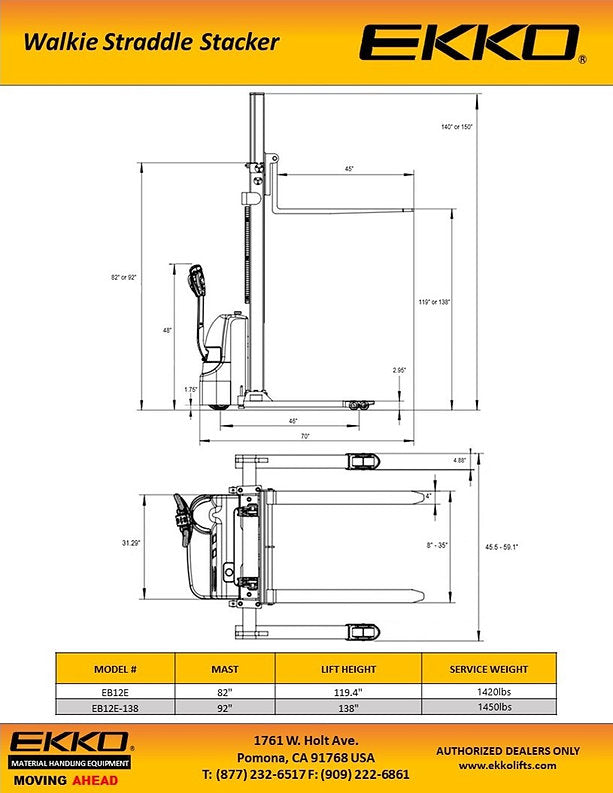

Technical Specifications

Key Features & Benefits

Fully Powered Drive and Lift

Both the drive and lift functions are fully powered — 24V drive motor and 24V lift motor — eliminating the manual pushing effort required by semi-electric alternatives. For contractors operating in large warehouses or across long loading dock runs, this reduces operator fatigue and supports higher throughput over a full shift.

Curtis Controller

The industry-recognized Curtis Controller provides precise, responsive control over drive speed and lift operations. Contractors benefit from smooth acceleration and controlled load handling, which is critical when maneuvering in tight stock rooms or near loading dock edges.

Adjustable Forks and Legs

Fork width adjusts from 8.3" to 33.5" and the straddle legs adjust from 45.7" to 59.1", accommodating a wide range of pallet sizes and aisle configurations. This adjustability reduces the need for multiple machines across different job site or warehouse layouts.

Internal Charger with Included Batteries

The internal charger and two 12V/100Ah batteries are included, so the unit is ready to deploy without sourcing separate charging infrastructure. For contractors who need equipment on-site quickly, this eliminates setup delays and additional equipment costs.

Steel Construction with Robotic Welding

The frame is fabricated from high-quality steel using robotic welding processes, producing consistent, high-strength weld joints throughout. This construction approach supports durability under repeated impact and directional changes typical of active job site or warehouse use.

Polyurethane Wheels

Polyurethane wheels are suited to smooth and semi-smooth indoor surfaces common in warehouses, manufacturing floors, and loading docks. They resist wear under high-cycle use and do not mark or damage finished floor surfaces.

Common Applications

Loading and Unloading Trucks

The EB12E-138's 2,640 lb capacity and 138" lift height make it well-suited for transferring palletized loads to and from truck beds at loading docks.

Loading Dock Operations

Compact straddle stacker geometry and adjustable legs allow the unit to navigate dock leveler transitions and position loads precisely within trailer interiors.

Stock Room Replenishment

The adjustable fork and leg widths enable the operator to work within the narrower aisle configurations common in stock rooms and back-of-house storage areas.

Manufacturing Floor Material Handling

Fully powered drive and lift allow efficient movement of raw materials and finished goods between production stations without operator fatigue on long shifts.

Warehousing

With an 11.5 ft raised height and 2,640 lb capacity, the EB12E-138 can place and retrieve palletized loads on racking systems typical of general warehousing environments.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized boxed goods
• Palletized bagged materials
• Palletized construction supplies
• Smooth and semi-smooth interior concrete floors
• Loading dock and warehouse flooring surfaces

Frequently Asked Questions

Q: Are the batteries and charger included with the EB12E-138?
A: Yes. The unit includes two 12V/100Ah batteries and an internal charger, so no separate charging equipment purchase is required.

Q: What is the maximum lift height of the EB12E-138?
A: The EB12E-138 raises loads to a maximum height of 138 inches (11.5 feet).

Q: Can the fork width be adjusted to fit different pallet sizes?
A: Yes. The forks adjust from 8.3" to 33.5" in width, and the straddle legs adjust from 45.7" to 59.1", accommodating a wide range of standard and non-standard pallet dimensions.

Q: What warranty is included?
A: The EB12E-138 is covered by a 3-year limited warranty.
