Lithium Powered Counterbalanced Walkie Stacker - 3,300 lb Capacity, 130" Lift Height

EKKO EK14-130Li Lithium Powered Counterbalanced Walkie Stacker — 3,300 lb Capacity, 130" Lift Height

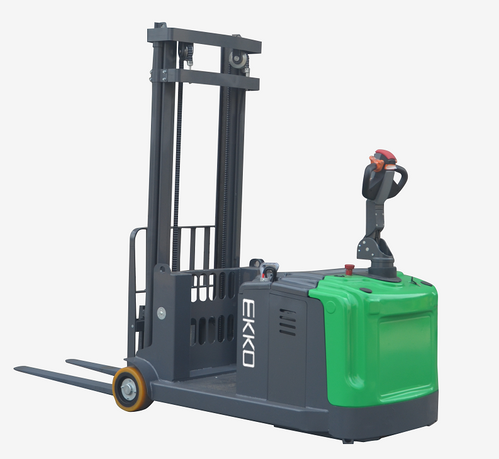

The EKKO EK14-130Li is a lithium-powered counterbalanced walkie stacker combining the versatility of a forklift with the maneuverability of a walkie stacker. Rated for 3,300 lbs at a 24" load center with a lift height of 130" (10.83 ft), it is engineered for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing operations. The unit is constructed from high-quality steel using robotic welding techniques and fitted with durable polyurethane wheels to withstand demanding terrain, heavy usage, and frequent directional changes.

Unlike lead-acid alternatives, the EK14-130Li is equipped with a 24V / 150Ah lithium battery and a 24V / 50A on-board charger included in the package, eliminating the need for a separate charging station purchase. The Curtis Controller delivers consistent performance across the full speed range, and the ergonomic walkie/stand-on handle integrates all primary controls — including tilt, lift, lower, and horn — for efficient single-operator use.

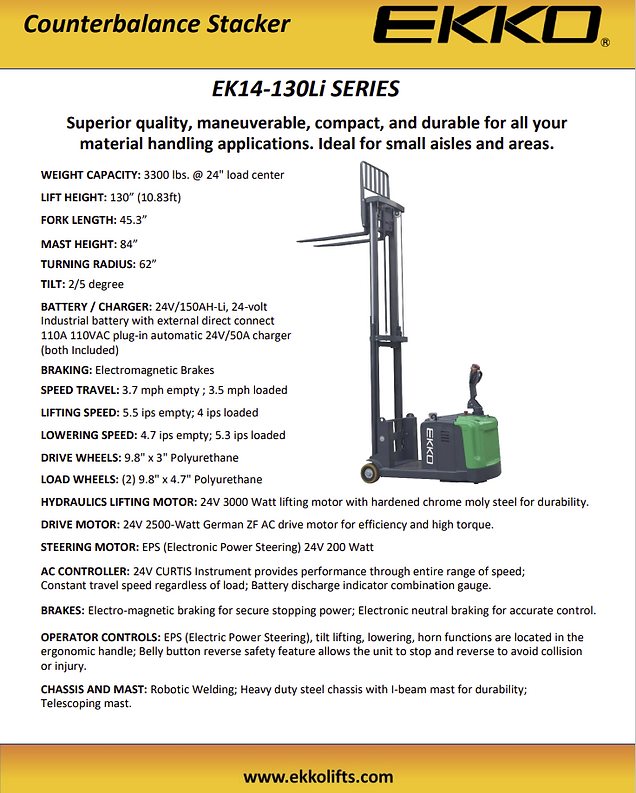

Technical Specifications

Key Features & Benefits

Lithium Battery Power System

The 24V / 150Ah lithium battery provides reliable, maintenance-free power without the watering, equalization, or acid handling required by lead-acid alternatives. A 24V / 50A charger is included, allowing contractors to charge on-site without sourcing additional charging equipment. Lithium chemistry also supports opportunity charging between shifts, reducing downtime on active job sites.

Curtis Controller

The Curtis Controller delivers consistent travel speed across the full load range and provides precise speed modulation, which is critical when positioning loads in tight dock or stock room environments. The controller also integrates with the drive and lift motors to coordinate smooth acceleration and braking response.

Ergonomic Handle and Integrated Controls

Tilt, lifting, lowering, and horn functions are all located in the ergonomic handle, keeping the operator's hands on the controls at all times. The walkie/stand-on operation type gives operators flexibility depending on the distance and frequency of travel required for a given task.

Robotic-Welded Steel Construction

The chassis and mast are fabricated from high-quality steel using robotic welding, producing consistent weld quality and structural integrity across units. This construction is rated to handle 3,300 lbs repeatedly under the impact and directional changes typical of active loading dock and warehouse environments.

Adjustable Forks with Tilt

Fork width adjusts from 8.6 to 28.3 inches to accommodate a wide range of pallet sizes without requiring a tool change or separate attachment. The 2°/5° forward/backward mast tilt allows operators to stabilize loads during transport and engage pallets at varying floor conditions.

Polyurethane Wheels

Both the driving wheels (Ø9.8 × 3.1 in) and front wheels (Ø9.84 × 4.71 in) are polyurethane, providing floor-friendly rolling resistance suited to smooth concrete surfaces common in warehouses, manufacturing floors, and loading docks. Polyurethane construction resists wear and maintains traction without marking sealed floors.

Common Applications

Loading and Unloading Trucks

The 130" lift height and 3,300 lb capacity allow operators to load and unload standard truck beds and containers without a full sit-down forklift. The compact turning radius of 62 inches enables maneuvering within the confined space of a loading dock bay.

Loading Dock Operations

The counterbalanced design eliminates the need for outrigger legs, allowing the forks to enter standard pallets directly on dock levelers and dock floors. The 84" lowered mast height supports operation in areas with overhead obstructions common at dock doors.

Stock Room and Back-of-House Storage

With a 119" minimum aisle width requirement for 1000×1200 crossways pallets, the EK14-130Li fits into the narrower aisles typical of stock rooms and back-of-house retail or distribution areas. The adjustable fork width accommodates different pallet configurations without reconfiguring the machine.

Manufacturing Floor Material Movement

The electric drive and polyurethane wheels make the EK14-130Li suitable for use on manufacturing floors where emissions and floor marking are concerns. The maximum gradeability of 6% loaded supports movement across slight inclines between production areas.

Warehousing and Racking

A lift height of 130" (10.83 ft) allows placement and retrieval from mid-level racking without a full rider forklift. The 2°/5° tilt and 4" free lift assist with precise load placement in racking applications.

Compatible Materials

• Standard wood pallets (GMA and similar sizes)
• Plastic pallets within fork width range (8.6–28.3 in adjustable spread)
• Smooth concrete flooring (warehouses, manufacturing floors, loading docks)
• Sealed or finished floor surfaces (polyurethane wheels are non-marking)
• Graded surfaces up to 6% grade (laden) and 10% grade (unladen)

Frequently Asked Questions

Q: Is the battery and charger included with the EK14-130Li?
A: Yes. The 24V / 150Ah lithium battery and 24V / 50A charger are both included with the unit.

Q: What is the maximum lift height?
A: The EK14-130Li lifts to 130 inches (10.83 ft) with an extended mast height of 155 inches.

Q: Can the forks be adjusted for different pallet sizes?
A: Yes. The fork width is adjustable from 8.6 to 28.3 inches to accommodate a range of standard pallet configurations.

Q: What is the minimum aisle width required?
A: For 1000×1200 pallets positioned crossways, the required aisle width is 119 inches. For 800×1200 pallets positioned lengthways, the required aisle width is 123 inches.

Q: What warranty is provided?
A: The EK14-130Li is covered by a 3-year limited warranty.

Q: What type of controller does the EK14-130Li use?
A: The unit is equipped with a Curtis Controller, which provides consistent performance across the full speed range.
