Semi-Electric Order Picker - 130" Raised Height

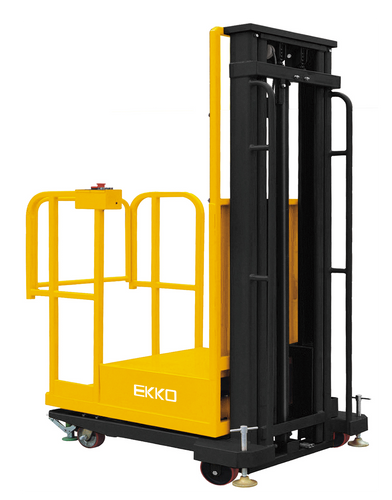

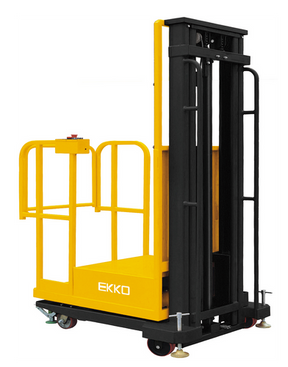

EKKO EOPS20-130 Semi-Electric Order Picker — Efficient High-Reach Retrieval for Warehouses & Distribution Facilities

The EKKO EOPS20-130 is a semi-electric, stand-on order picker engineered for efficient product retrieval from racking, shelving, and storage systems in warehouses, manufacturing floors, and distribution facilities. With a 440 lb load capacity and a maximum lifting height of 130 inches (10.83 ft), it puts operators at the pick level to retrieve items quickly and accurately. The unit is designed for B2B environments where high-cycle, multi-level picking demands a reliable and maneuverable machine.

Unlike manual alternatives, the EOPS20-130 combines electric lift power with manual drive for straightforward operation and reduced operator fatigue. It ships with a 12V/120Ah lead acid battery and an onboard internal charger, eliminating the need for separate charging infrastructure and reducing upfront accessory costs.

Technical Specifications

Key Features & Benefits

130-Inch Powered Lift Height

The electric lift system raises the operator platform to 130 inches, enabling direct access to upper rack levels without ladders or manual climbing. For warehouse and distribution operations with multi-tier racking, this directly reduces retrieval time and operator strain over repeated pick cycles.

Overload Protection

Built-in overload protection prevents the unit from operating beyond its 440 lb rated capacity. This safeguard protects both the equipment and the operator, reducing the risk of mechanical failure during heavy-use shifts.

Safety Brackets & Dual Brakes

Safety brackets and a dual-brake system provide redundant stopping capability, which is critical when operating at elevation. Contractors and warehouse managers can rely on these systems to maintain controlled, secure positioning during picks.

Emergency Stop/Down Button

A dedicated Emergency Stop/Down button allows the operator to immediately halt lift movement or lower the platform in an emergency. This is a standard safety requirement in professional material handling environments and is integrated directly into the operator controls.

Included Battery & Internal Charger

The 12V/120Ah lead acid battery and onboard charger ship with the unit, so operations can begin without sourcing additional charging equipment. The internal charger simplifies facility setup and reduces the number of external components to manage.

Robotic-Welded Steel Construction

The frame is fabricated from high-quality steel using robotic welding for consistent weld integrity throughout the chassis. This construction approach supports durability across varied usage conditions, terrain changes, and directional maneuvers common in active warehouse environments.

Polyurethane Wheels

Polyurethane wheels provide reliable traction and floor protection across typical warehouse and manufacturing surfaces. PU wheels are resistant to wear and chemical exposure, extending the service life of the running gear under regular use.

Common Applications

Warehouse Order Picking

The EOPS20-130 is purpose-built for retrieving items from multi-level warehouse racking systems. The stand-on platform and powered lift allow operators to work efficiently across an entire rack face.

Distribution Center Operations

In distribution facilities with high SKU counts and frequent picks, this unit enables operators to move between rack locations and access upper shelves without changing equipment. Its compact footprint supports navigation in standard aisle widths.

Manufacturing Floor Storage Retrieval

Manufacturing environments with parts stored in elevated bins or racking benefit from the order picker's ability to position operators directly at the pick point. This reduces the need for supplemental lifting equipment on the production floor.

Storage Facility Inventory Management

Self-storage and general storage facilities can use the EOPS20-130 to manage inventory stored at height, with the included battery and charger making it straightforward to deploy without additional infrastructure.

Compatible Materials

• Standard warehouse racking and shelving systems
• Smooth concrete flooring
• Sealed or coated warehouse floors
• Manufacturing floor surfaces suitable for polyurethane wheels

Frequently Asked Questions

Q: Is the battery included with the EOPS20-130?
A: Yes. The unit ships with a 12V/120Ah lead acid battery and an internal charger included at no additional cost.

Q: What is the maximum lifting height of this order picker?
A: The EOPS20-130 reaches a maximum lifting height of 130 inches (10.83 feet).

Q: Is there an external charger required?
A: No. The EOPS20-130 includes an internal charger, so no external charging equipment is needed.

Q: What warranty does the EOPS20-130 carry?
A: The unit is covered by a 3-year limited warranty.

Q: Are there other lifting height options available in this model series?
A: Yes. The EOPS20 series is also available in 157-inch and 177-inch lift height configurations (EOPS20-157 and EOPS20-177).
