Semi-Electric Order Picker - 157" Lift Height

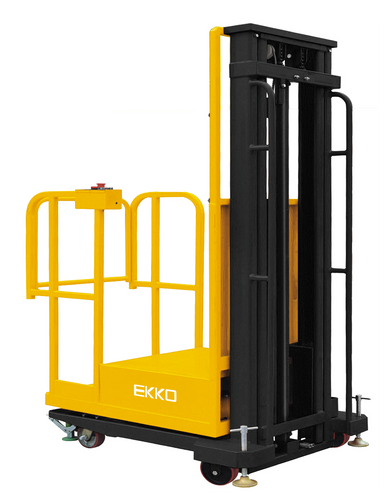

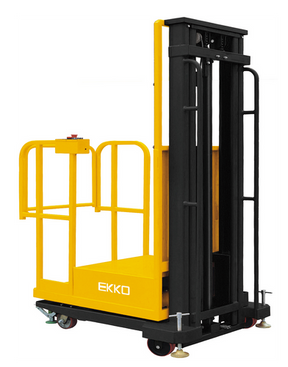

EKKO EOPS20-157 Semi-Electric Order Picker — 440 lb Capacity, 157" Lift Height

The EKKO EOPS20-157 is a semi-electric stand-on order picker engineered for professional order retrieval from racking systems, storage facilities, manufacturing floors, and warehouses. Rated for 440 lbs and a maximum lift height of 157 inches (13.1 ft), it gives operators the vertical reach needed to access high-bay racking without relying on manual ladders or separate lift equipment. The unit ships with a 12V/120Ah battery and an internal charger, making it ready to deploy directly into your operation.

Unlike manual alternatives, the EOPS20-157 combines electric lifting with operator-controlled travel, reducing fatigue and improving pick cycle efficiency across high-density storage environments. Robotic-welded steel construction and polyurethane wheels ensure durability across varied floor conditions and directional changes without compromising maneuverability in tight aisle configurations.

Technical Specifications

Key Features & Benefits

Electric Lift with Internal Charger Included

The 1.6 KW lift motor powers the platform to a full 157-inch raised height, eliminating the manual effort of traditional stackers. The included 12V/120Ah battery and integrated internal charger mean there are no additional charging infrastructure costs at time of purchase — plug in anywhere a standard outlet is available.

Comprehensive Safety System

Overload protection prevents the unit from lifting beyond its rated 440 lb capacity, reducing the risk of equipment damage or operator injury. Safety brackets, dual brakes, and an emergency stop/down button provide multiple layers of protection for operators working at height in active warehouse environments.

Robotic-Welded Steel Construction

The frame is built from high-quality steel using robotic welding, delivering consistent weld quality and structural integrity throughout the mast and chassis. This construction approach supports reliable performance across repeated load cycles and varied usage conditions.

Polyurethane Wheels for Durability and Floor Protection

Polyurethane wheels resist wear and provide good traction on smooth warehouse floors without marking surfaces. The robust drive system is designed to handle various terrains, usage conditions, and frequent directional changes encountered in active picking operations.

Compact Footprint for Aisle Navigation

At 33.46 inches wide and 51.18 inches long, the EOPS20-157 is sized to work within standard racking aisle configurations. The stand-on operation positions the operator close to the racking face, minimizing reach distance during picks at elevated heights.

3-Year Limited Warranty

The EOPS20-157 is backed by a 3-year limited warranty, providing contractors and facility operators with documented coverage on a piece of capital equipment that sees daily use. This warranty term reflects confidence in the unit's long-term durability under normal operating conditions.

Common Applications

Warehouse Order Picking

Designed specifically for retrieving orders from multi-level racking systems, the EOPS20-157 allows a single operator to access shelving up to 13.1 feet without a ladder or separate lift platform.

Storage Facility Operations

In bulk storage environments, the unit efficiently retrieves items stored at height, reducing the time per pick cycle compared to manual methods.

Manufacturing Floor Parts Retrieval

On manufacturing floors where components are stored on elevated shelving, the order picker enables operators to quickly retrieve parts needed for assembly lines or work cells.

Distribution Center Fulfillment

The combination of electric lift and manual travel makes the EOPS20-157 well-suited to fulfillment operations where operators move frequently between pick locations across a facility floor.

Compatible Materials

• Smooth concrete warehouse floors
• Sealed or coated industrial flooring
• Standard warehouse racking and shelving systems
• Pallet storage configurations accessible within 440 lb load limits

Frequently Asked Questions

Q: Is the battery and charger included with the EOPS20-157?
A: Yes. The unit includes a 12V/120Ah battery and an integrated internal charger — no separate charger purchase is required.

Q: What is the maximum lift height of this order picker?
A: The EOPS20-157 lifts to a maximum height of 157 inches (13.1 feet).

Q: What is the rated load capacity?
A: The EOPS20-157 is rated for 440 lbs. The unit includes overload protection to prevent operation beyond this limit.

Q: What type of wheels does this unit use?
A: The unit is equipped with polyurethane (PU) wheels, with a driving wheel size of Φ9.84×5 in and bearing wheel size of Φ5.9×3.23 in.

Q: What warranty does the EOPS20-157 carry?
A: The unit is covered by a 3-year limited warranty.
