Semi-Electric Order Picker - Tallest · 177"(14.75) Lift

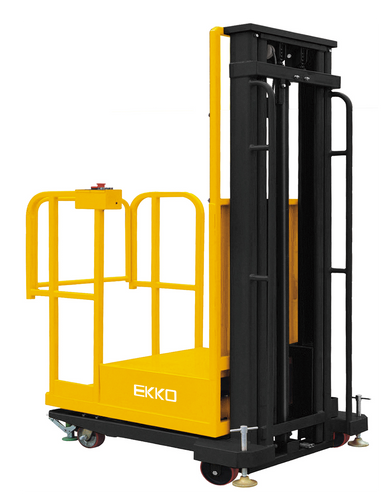

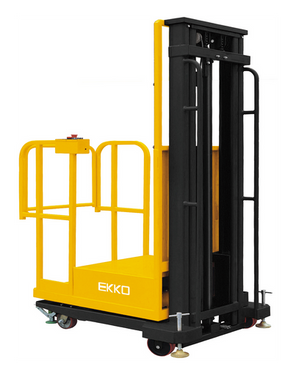

EKKO EOPS20-177 Semi-Electric Order Picker — Reach Up to 14.75 ft for Efficient Warehouse Order Retrieval

The EKKO EOPS20-177 is a semi-electric, stand-on order picker engineered for professionals who need reliable, high-reach retrieval in racking systems, storage facilities, manufacturing floors, and warehouses. With a rated load capacity of 440 lbs and a maximum lifting height of 177 inches (14.75 ft), it provides the reach and power needed to access upper-tier storage efficiently. Built on a steel frame with robotic welding, this unit is designed for durability under the demands of daily commercial and industrial use.

Unlike manual alternatives, the EOPS20-177 combines powered lifting with a stand-on operator platform, reducing operator fatigue and improving throughput in high-cycle picking environments. The included 12V/120Ah lead acid battery and internal charger eliminate the need for additional charging infrastructure, making deployment straightforward from day one.

Technical Specifications

Key Features & Benefits

177-Inch Powered Lift Height

The 1.6 KW lift motor elevates the operator platform to a full 177 inches (14.75 ft), providing access to upper rack levels without ladders or manual climbing. For contractors and warehouse operations managing dense vertical storage, this reach directly translates to faster retrieval and reduced downtime.

Steel Construction with Robotic Welding

The frame is fabricated from high-quality steel using robotic welding processes, ensuring consistent weld integrity and long-term structural durability. This level of construction quality holds up to the repetitive stress of daily order picking across varied usage conditions.

Overload Protection & Safety Systems

The EOPS20-177 includes overload protection, safety brackets, dual brakes, and an Emergency Stop/Down button. These features give operators immediate control in unexpected situations and help protect both personnel and inventory from incidents caused by excessive loading or mechanical failure.

Included Battery and Internal Charger

The 12V/120Ah lead acid battery ships with the unit, and the internal charger means no separate charging station is required. This reduces upfront infrastructure costs and allows the machine to be charged wherever a standard outlet is accessible.

Polyurethane Wheels for Smooth Operation

Polyurethane wheels deliver low rolling resistance and floor-friendly performance on smooth warehouse and facility surfaces. The robust drive system is constructed to handle various terrains, directional changes, and typical usage conditions found in commercial storage environments.

3-Year Limited Warranty

EKKO backs the EOPS20-177 with a 3-year limited warranty, providing contractors and facility managers with added confidence in their investment over the long term.

Common Applications

Warehouse Order Picking

Designed specifically for order picking workflows, the EOPS20-177 allows operators to efficiently retrieve items from racking systems up to nearly 15 feet high without leaving the platform.

Storage Facility Retrieval

Ideal for storage facilities with multi-level racking, where manual retrieval would be slow or unsafe at elevation.

Manufacturing Floor Inventory Access

Supports manufacturing environments where parts or materials are stored on elevated shelving and need to be retrieved quickly to keep production lines moving.

Distribution and Fulfillment Centers

The stand-on operation and 8 km/h travel speed support efficient movement across large distribution floor layouts, reducing the time between pick locations.

Compatible Materials

• Boxed goods and packaged products up to 440 lbs
• Palletized or shelved inventory on standard racking systems
• Loose or bagged materials within load capacity
• Smooth and semi-smooth warehouse floor surfaces (suited to polyurethane wheels)

Frequently Asked Questions

Q: Is the battery included with the EOPS20-177?
A: Yes. The unit ships with a 12V/120Ah lead acid battery and an internal charger included.

Q: What is the maximum lifting height of this order picker?
A: The EOPS20-177 lifts to a maximum height of 177 inches (14.75 ft).

Q: What safety features are built into the unit?
A: The machine includes overload protection, safety brackets, dual brakes, and an Emergency Stop/Down button.

Q: What type of wheels does the EOPS20-177 use?
A: It uses polyurethane (PU) wheels, with a driving wheel size of Φ9.84×5 in and bearing wheel size of Φ5.9×3.23 in.

Q: What warranty is included?
A: The EOPS20-177 comes with a 3-year limited warranty.
