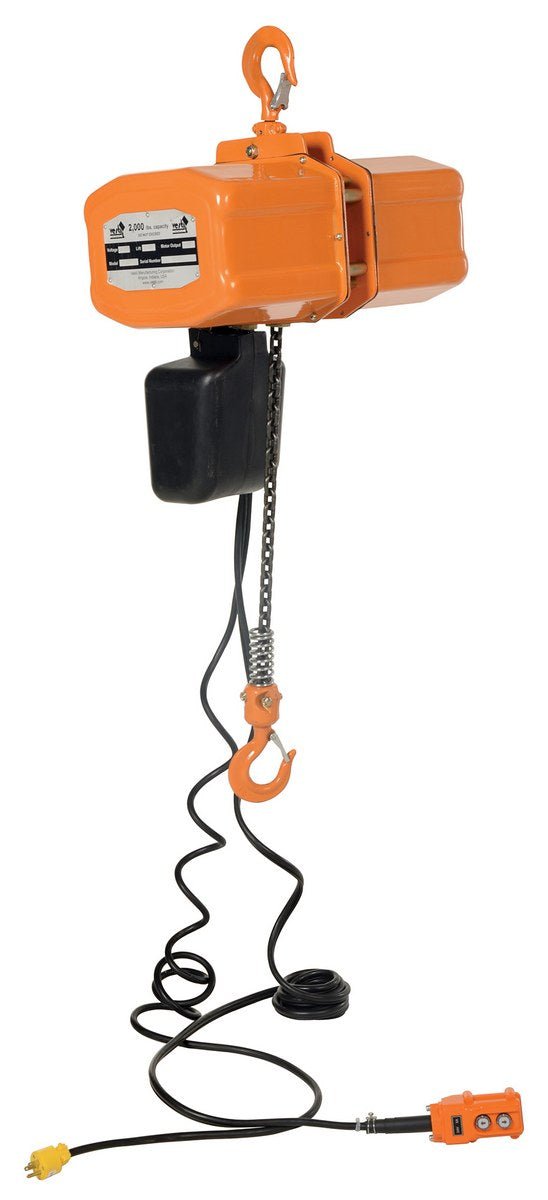

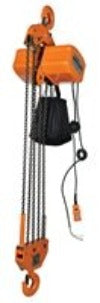

Chain Hoists with Chain Container

This compact hoist features a high efficiency motor with convenient 2H4V push-button operation. Single or three phase power available. Unit is dust and water resistant, load limit fitted, and features a 4:1 safety factor. Chain container included.

Features & Specifications

Economy Chain Hoist with Chain Container
Model	Image	Capacity (lbs)	Feet Per Minute	Head Room	Lift (Feet)	Power	Wt (lbs)
H-1000-1		1,000	17	21-7/16"	15	1 Phase	182
H-2000-1		2,000	17	22-13/16"	15	1 Phase	194
H-4000-1		4,000	8-1/2	21-7/16"	15	1 Phase	205
H-6000-1		6,000	5-1/2	29-1/8"	15	1 Phase	215
H-10000-1		10,000	3-1/2	31-1/8"	15	1 Phase	342
H-1000-3		1,000	20-1/2	21-7/16"	15	3 Phase	185
H-2000-3		2,000	17	22-13/16"	15	3 Phase	189
H-4000-3		4,000	16	21-7/16"	15	3 Phase	198
H-6000-3		6,000	6-7/8	29-1/8"	15	3 Phase	215
H-10000-3		10,000	3-1/4	31-1/8"	15	3 Phase	342
