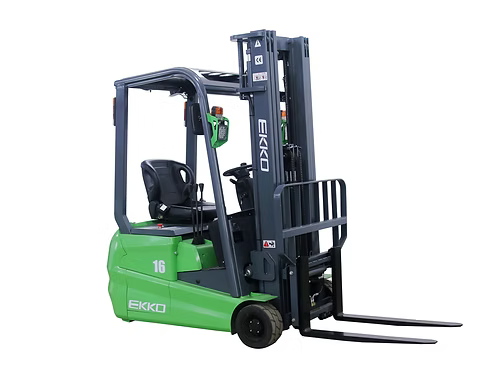

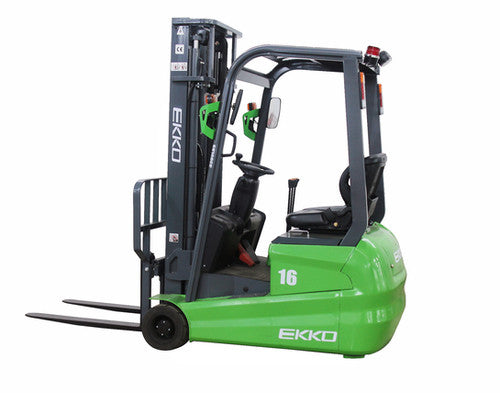

EKKO EK16A-189Li 3-Wheel Lithium Forklift — 3,500 lb Capacity for Tight Indoor Spaces

The EKKO EK16A-189Li is a 3-wheel lithium-electric counterbalanced forklift built for contractors and warehouse operators who need reliable lifting performance in confined environments. With a 3,500 lb load capacity and a 189-inch (15.75 ft) maximum lift height, it handles demanding material movement tasks in loading docks, stock rooms, manufacturing floors, and warehouses. This unit is recommended for indoor use on flat surfaces and is engineered for operations where aisle space is limited and budget discipline matters.

Unlike lead-acid alternatives, the EK16A-189Li runs on a 24V / 200Ah lithium battery with an included 24V / 50A charger, eliminating the maintenance overhead and downtime associated with watering, equalizing, and swapping traditional batteries. The compact 3-wheel layout, 58.9-inch turning radius, and hydraulic power steering allow precise maneuvering in tight aisles where larger 4-wheel forklifts cannot operate efficiently.

Key Features & Benefits

24V Lithium Battery System with Included Charger

The 24V / 200Ah lithium battery delivers consistent power throughout the charge cycle without the voltage drop common in lead-acid systems. The included 24V / 50A charger means contractors don't need to source or purchase charging equipment separately, reducing startup cost and complexity.

Side-Shifting Forks with Wide Adjust Range

Forks adjust from 7.9 to 26 inches in width and include side-shift capability, allowing operators to precisely position loads without repositioning the entire machine. This reduces cycle time during truck loading and unloading and minimizes product handling errors in tight rack configurations.

Zapi® Controller

The Zapi® controller manages drive and lift functions with precision, providing smooth acceleration and responsive performance across operating conditions. Zapi is a recognized name in industrial electric vehicle control, and its inclusion on this forklift reflects a component-level commitment to durability and serviceability.

Hydraulic Power Steering (HPS)

Hydraulic power steering reduces operator fatigue during extended shifts, especially in environments that require frequent direction changes and close-quarters maneuvering. Combined with the 3-wheel layout and compact overall length of 65 inches, HPS makes this forklift practical in confined stock rooms and narrow warehouse aisles.

Steel Construction with Robotic Welding

The frame is fabricated from high-quality steel using robotic welding processes, producing consistent, high-integrity weld joints throughout the chassis. This construction approach supports the unit's durability under heavy usage, impacts, and frequent directional changes in demanding work environments.

Free Lift and Mast Tilt

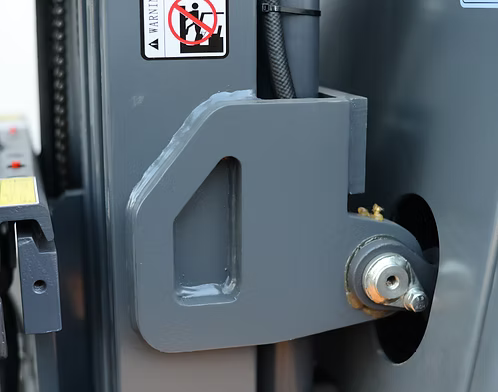

A 31.5-inch free lift height allows the forks to raise without extending the mast, which is critical when working under overhead obstructions such as dock doors or low ceilings. The 3° forward / 6° backward mast tilt provides load stability during transport and improved control during placement.

Common Applications

Loading and Unloading Trucks

The 3,500 lb capacity and 42.1-inch fork length make this forklift well-suited for moving palletized freight on and off trucks at loading docks.

Warehouse Racking and Order Fulfillment

With a 189-inch maximum lift height and side-shifting forks, operators can place and retrieve loads at height in standard warehouse rack systems.

Stock Room Operations

The compact turning radius of 58.9 inches and 3-wheel configuration allow this forklift to navigate the narrow aisles and constrained layouts typical of stock rooms.

Manufacturing Floor Material Handling

The rider-operated design and cushion tire configuration support efficient movement of raw materials and finished goods across flat manufacturing floor surfaces.

Loading Dock Staging

The free lift capability allows operators to raise loads without mast extension, which is particularly useful when staging materials near dock doors with limited overhead clearance.

Compatible Materials

• Palletized goods and boxed freight
• Bagged materials (cement, aggregate, etc.)
• Steel, lumber, and construction materials on pallets
• Racked warehouse inventory
• Flat, hard indoor surface floors (concrete, sealed, or smooth finished surfaces)

Product Documents

• EKKO Lifts Line Card (PDF)

Technical Specifications

Frequently Asked Questions

Q: Is a charger included with this forklift?
A: Yes. The EK16A-189Li includes a 24V / 50A charger as standard equipment.

Q: Can this forklift be used outdoors?
A: No. The EK16A-189Li is recommended for indoor use on flat surfaces only. The cushion tire configuration is not suited for uneven or outdoor terrain.

Q: What is the maximum lift height?
A: The maximum lifting height is 189 inches (15.75 ft), with a free lift height of 31.5 inches that allows the forks to rise without extending the mast.

Q: Does the forklift have side-shifting forks?
A: Yes. The forks include side-shift capability and adjust in width from 7.9 to 26 inches.

Q: What warranty does this forklift carry?
A: The EK16A-189Li is covered by a 3-Year Limited Warranty.
