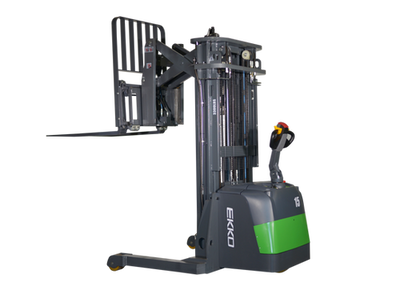

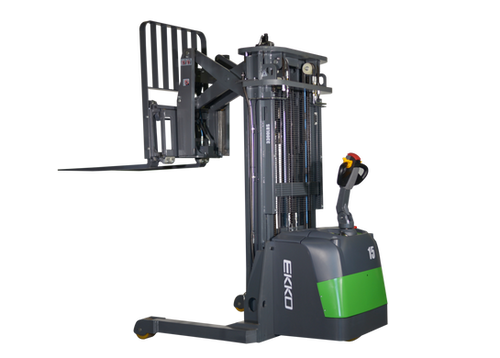

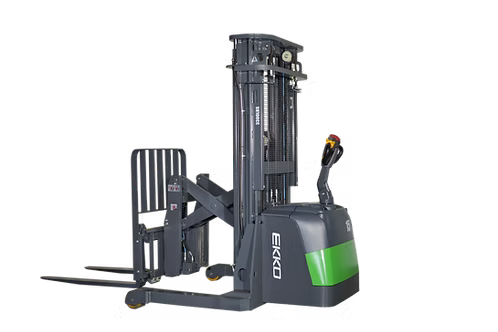

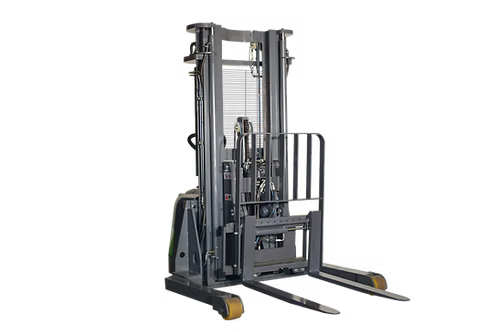

EKKO ER15-138Li Walkie Reach Truck — 3,300 lb Capacity with 138" Lift Height

The EKKO ER15-138Li Walkie Reach Truck combines the functionality of a forklift, reach truck, and walkie stacker into a single compact electric unit. Rated for 3,300 lb loads with a lifting height of 138 inches (11.5 ft), it is engineered for contractors and trades professionals operating in loading docks, stockrooms, manufacturing floors, and warehousing environments. The 19.7-inch reach distance and integrated side shift and tilt functions provide the positional flexibility required for precise pallet placement in tight spaces.

Unlike standard walkie stackers that lack reach capability, the ER15-138Li extends forks outward 19.7 inches to access racking without repositioning the machine. The 24V/200Ah lithium battery with an included 24V/50A charger eliminates the acid maintenance and slow charge cycles associated with lead-acid alternatives, reducing downtime on active job sites.

Key Features & Benefits

Lithium Battery System with Included Charger

The 24V/200Ah lithium battery delivers consistent power throughout the charge cycle and ships with a 24V/50A charger included. Contractors avoid the additional procurement cost of a separate charger and benefit from faster charge acceptance compared to conventional lead-acid configurations.

Side Shift and Tilt Functionality

Integrated side shift and tilt allow the operator to fine-tune fork position without moving the truck itself. This is critical when loading pallets onto racking or aligning with truck beds where repositioning the machine is impractical.

AC Drive Motor with Curtis Instrument Controller

The AC 1.5 KW drive motor paired with a Curtis Instrument controller delivers precise, responsive speed control across varying load conditions. The EPS (Electronic Power Steering) AC speed control steering motor reduces operator fatigue during extended shift use.

High-Strength Steel Construction with Robotic Welding

The frame is fabricated from high-quality steel using robotic welding processes, producing consistent, repeatable weld quality throughout the chassis. This construction is designed to withstand impact, directional changes, and the repeated loading cycles typical of high-frequency warehouse and dock operations.

Polyurethane Wheels

Polyurethane wheels are suited for smooth indoor surfaces including concrete warehouse floors and loading dock environments. They resist marking and provide the rolling resistance characteristics appropriate for walkie reach truck applications.

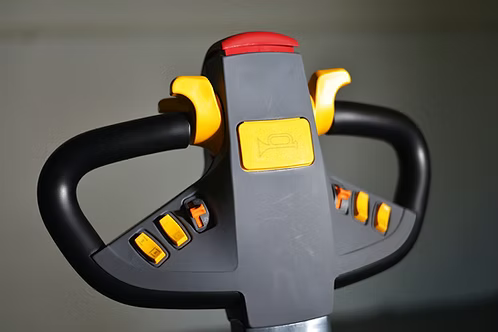

Ergonomic Handle and Controls with Lift Control Valve

The ergonomic handle integrates operator controls for drive and lift functions, reducing the physical demand on the operator. The dedicated lift control valve provides precise hydraulic control over mast movement during load placement.

Common Applications

Loading and Unloading Trucks

The 3,300 lb capacity and 19.7-inch reach allow operators to place or retrieve pallets from truck beds efficiently, with side shift providing fine alignment without repositioning the unit.

Loading Dock Operations

The compact overall width of 32.3 inches (body) and 59.1 inches (legs) makes the ER15-138Li maneuverable in loading dock lanes where space between trailers and dock walls is limited.

Stockroom and Warehouse Racking

A 138-inch lift height combined with 19.7-inch reach enables operators to stock and retrieve pallets from elevated racking positions, reducing the need for a separate stand-up rider reach truck in lower-density storage environments.

Manufacturing Floor Material Handling

The electric drive and polyurethane wheels make this unit appropriate for indoor manufacturing environments where emission-free operation and floor surface protection are required.

Compatible Materials

• Standard pallets (wood, plastic) within 3,300 lb load limit
• Smooth concrete warehouse and dock floors
• Indoor manufacturing floor surfaces
• Standard pallet racking systems accessible within 138-inch lift height

Technical Specifications

Frequently Asked Questions

Q: Is a charger included with the ER15-138Li?
A: Yes. A 24V/50A charger is included with the unit.

Q: Does the battery need to be purchased separately?
A: No. The 24V/200Ah lithium battery is included.

Q: What is the maximum lifting height?
A: The ER15-138Li lifts to 138 inches (11.5 feet).

Q: Does this unit have side shift and tilt?
A: Yes. Both side shift and tilt are standard on the ER15-138Li.

Q: What type of floors is this truck designed for?
A: The polyurethane wheels are suited for smooth indoor surfaces such as concrete warehouse and loading dock floors.
