Stand-Up Narrow Aisle Reach Truck - 196" Lift Height

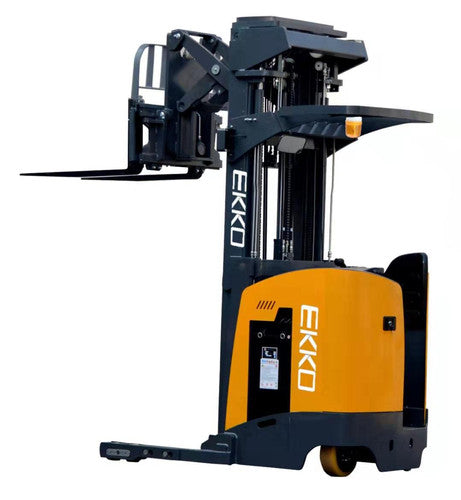

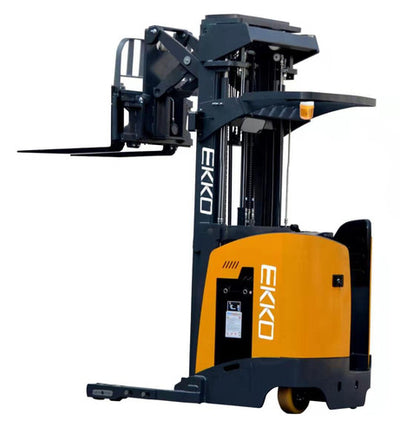

EKKO EK18RRL Stand-Up Narrow Aisle Reach Truck — 4,000 lb Capacity with 196" Triple Mast

The EKKO EK18RRL is a stand-up rider reach truck engineered for high-density warehouse environments, combining the functionality of a forklift, reach truck, and walkie stacker in a single compact machine. With a 4,000 lb load capacity and a 196" (16.33 ft) lifting height on a triple mast, it is purpose-built for loading docks, stock rooms, manufacturing floors, and narrow-aisle warehousing. Its compact footprint and 75" turning radius make it well-suited for confined spaces where standard counterbalanced forklifts cannot maneuver effectively.

Unlike conventional walkie stackers or sit-down forklifts, the EK18RRL pairs a German-engineered 48V AC drive motor with a Curtis Instrument controller for consistent travel speed regardless of load, and ships complete with a 48V/420Ah industrial battery and a 48V/65A, 480V charger — eliminating the added cost and lead time of sourcing power components separately.

Key Features & Benefits

196" Triple Mast with Free Lift

The triple-stage mast reaches 196" (16.33 ft) with a 53.15" free lift, allowing operators to elevate loads before the mast itself begins to extend — critical in low-clearance environments like trailers and dock areas. The lowered mast height of 96.42" keeps overall machine profile manageable when traveling through doorways and under overhead obstructions.

German AC Drive Motor with Curtis Instrument Controller

The 48V / 6,000W German AC drive motor delivers high torque and efficiency across the full speed range, while the Curtis Instrument controller maintains constant travel speed regardless of load weight. This combination reduces operator fatigue during extended shifts and helps protect drivetrain components from load-induced stress.

Side-Shifting Forks with 3-Way Valve

Integrated side-shifting forks controlled via a 3-way valve allow operators to precisely align loads with racking without repositioning the entire truck. Fork adjust width spans 7.9" to 35.04", accommodating a wide range of pallet sizes and load configurations encountered across warehousing and manufacturing applications.

EPS Electronic Power Steering

The electronic power steering (EPS) system reduces the physical effort required to steer in tight aisles and during repeated directional changes, improving operator comfort and control. EPS also supports more precise maneuvering in narrow-aisle environments where minor steering corrections are frequent.

48V / 420Ah Industrial Battery & 480V Charger Included

The EK18RRL ships with a 48V / 420Ah industrial battery and a 48V / 65A, 480V charger included — no additional procurement required. Having the complete power system matched from the factory ensures compatibility and simplifies commissioning on jobsite or in the warehouse.

Heavy-Duty Steel Construction with Robotic Welding

The chassis and mast are fabricated from heavy-duty steel using robotic welding processes, producing consistent, high-strength weld joints throughout. This construction approach is designed to withstand the impact, terrain variation, and repetitive directional changes common in active warehousing and industrial environments.

Common Applications

Narrow-Aisle Warehousing

The EK18RRL's 75" turning radius and compact overall width of 54.72" allow it to operate in tight racking configurations where standard forklifts cannot safely maneuver, maximizing usable storage density.

Loading Docks & Truck Loading/Unloading

With a 53.15" free lift and 196" maximum lift height, the truck can load and unload trailers efficiently without raising the mast in low-overhead dock environments, reducing the risk of contact with trailer ceilings.

Manufacturing Floors

The stand-up rider configuration and ergonomic operator controls make frequent mount/dismount cycles faster, supporting the repetitive material moves typical of production line replenishment and staging operations.

Stock Rooms & Distribution Centers

Adjustable forks (7.9"–35.04" spread) and side-shifting capability allow rapid handling of varied pallet and load types, reducing cycle times when pulling or putaway tasks require precise rack alignment.

High-Bay Racking Retrieval

The 196" lift height with a triple mast enables operators to reach upper racking tiers in high-bay storage facilities, supporting full vertical utilization of available storage space.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Boxed and crated goods
• Industrial racking systems (standard pallet rack)
• Flat, hard indoor surfaces (concrete, sealed floors)
• Loading dock environments (smooth dock floors and trailer beds)

Product Documents

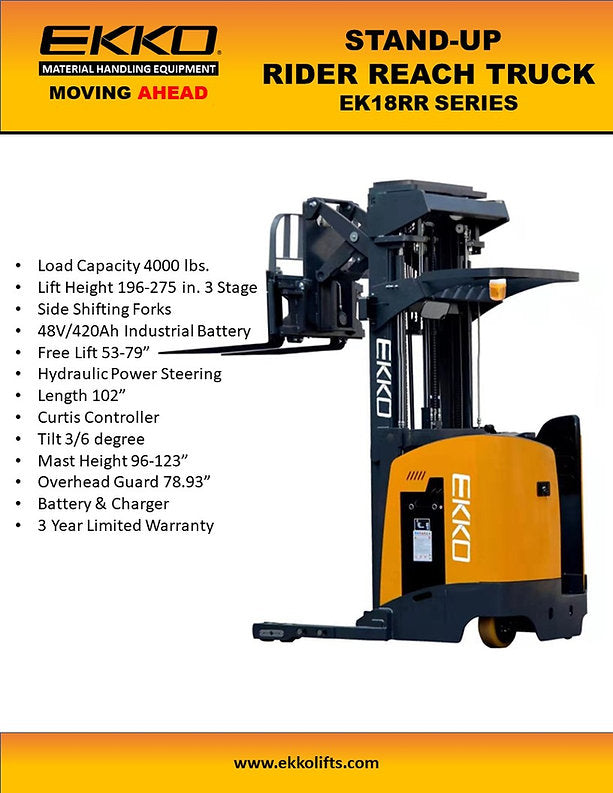

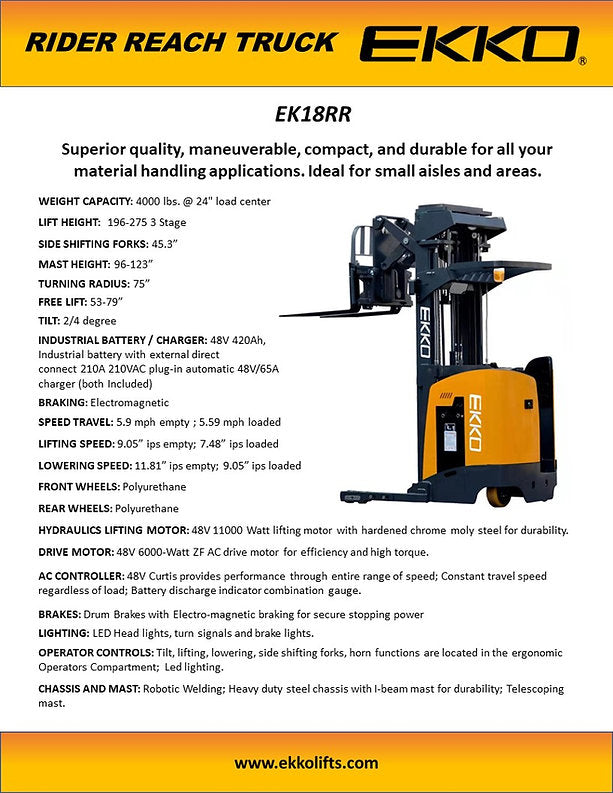

• EK18RRL Product Brochure (PDF)
• EKKO Full Line Card (PDF)

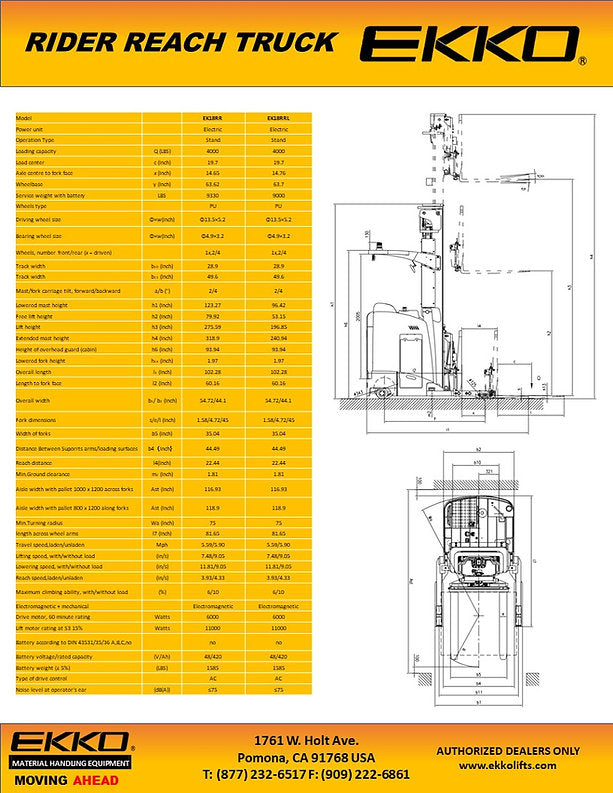

Technical Specifications

Frequently Asked Questions

Q: Are the battery and charger included with the EK18RRL?
A: Yes. The EK18RRL ships complete with a 48V / 420Ah industrial battery and a 48V / 65A, 480V charger — both are included in the purchase.

Q: What is the maximum lift height and mast type?
A: The EK18RRL uses a triple-stage mast and lifts to a maximum height of 196" (16.33 ft).

Q: Does the truck have free lift capability?
A: Yes. The EK18RRL provides 53.15" of free lift, allowing loads to be raised before the mast begins to extend — useful in low-clearance areas such as trailer interiors and dock environments with overhead obstructions.

Q: What fork spread does the EK18RRL support?
A: The adjustable forks span from 7.9" to 35.04" in width, accommodating a broad range of standard pallet sizes and load footprints.

Q: What type of drive motor is used, and why does it matter?
A: The truck uses a 48V / 6,000W German-engineered AC drive motor paired with a Curtis Instrument controller. The AC motor delivers consistent torque and the Curtis controller maintains constant travel speed regardless of load, supporting predictable performance across varying duty cycles.

Q: What warranty does the EK18RRL carry?
A: The EK18RRL is covered by a 3-year limited warranty.
