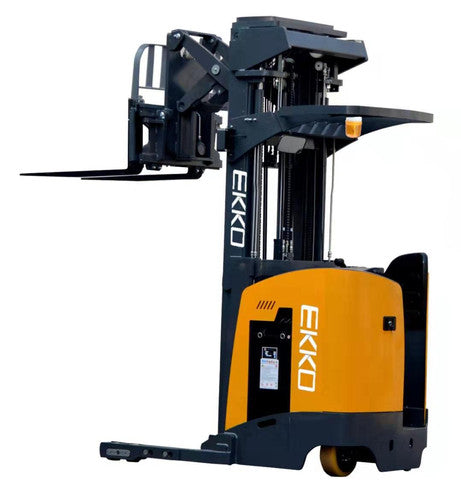

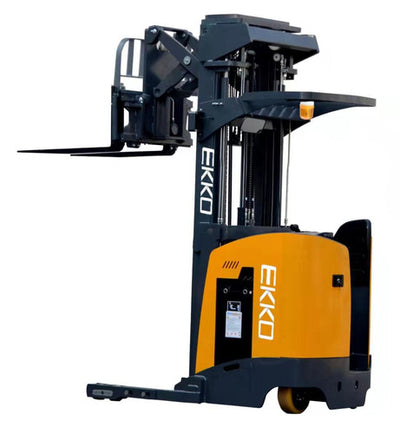

EKKO EK18RR Stand-Up Narrow Aisle Reach Truck — 4,000 lb Capacity, Up to 335" Lift Height

The EKKO EK18RR Stand-Up Narrow Aisle Reach Truck combines the versatility of a forklift, reach truck, and walkie stacker into a single, high-performance electric material handling unit. Rated for 4,000 lb load capacity and available in lift heights of 275" or 335", it is engineered for professional use in loading docks, stock rooms, manufacturing floors, and warehouse environments. Built from high-quality steel with robotic welding, the EK18RR is designed to withstand demanding terrain, heavy usage, impact, and frequent directional changes.

Unlike a standard walkie stacker or sit-down forklift, the EK18RR's narrow aisle stand-up design delivers full reach truck functionality — including side-shifting forks, free lift, and tilt — in tighter operational footprints. The triple mast configuration paired with a German AC drive motor and Curtis Instrument Controller gives contractors and warehouse operators precise, reliable performance across a wide range of applications.

Key Features & Benefits

Triple Mast with Free Lift and High Reach Heights

The triple mast design allows the EK18RR to reach lift heights of 275" or 335", making it suitable for high-bay racking systems common in warehousing and manufacturing. Free lift capability means the forks can be raised without extending the mast height, allowing operation in areas with overhead obstructions such as dock doors and low-clearance structures.

Side Shifting Forks with Adjustable Fork Width

Side-shifting forks allow operators to fine-tune load positioning without repositioning the entire truck, reducing cycle times and improving pallet placement accuracy. The adjustable fork width of 7.9" to 35" accommodates a wide variety of pallet sizes and load configurations, adding flexibility across different job site or warehouse environments.

German AC Drive Motor with Curtis Instrument Controller

The German AC drive motor delivers consistent, efficient power suited for continuous industrial use. Combined with the Curtis Instrument Controller, operators benefit from precise speed and torque management, which is critical for controlled load handling in narrow aisle environments and on uneven surfaces.

Electronic Power Steering (EPS)

EPS reduces operator fatigue during extended shifts by providing smooth, responsive steering with minimal physical effort. In narrow aisle applications where frequent turns and precise maneuverability are required, EPS directly contributes to safer and more efficient operation.

48V / 420Ah Battery with 48V / 65A, 480V Charger Included

The 48V / 420Ah battery provides substantial runtime for full-shift operations without requiring mid-shift battery swaps. The included 48V / 65A, 480V charger means no additional charging equipment needs to be sourced separately, reducing setup costs and getting the unit operational faster.

Steel Construction with Robotic Welding

The EK18RR is built from high-quality steel using robotic welding processes, ensuring consistent weld integrity and structural durability throughout the frame. This construction standard is designed to withstand impact, directional changes, and the rigors of daily use in commercial and industrial settings.

Polyurethane Wheels

Polyurethane wheels are well-suited for smooth indoor surfaces such as warehouse concrete floors, offering durability and floor protection. They provide reliable traction and reduce rolling resistance for efficient drive performance.

Ergonomic Handle and Controls

The ergonomic handle and control layout is designed to support operator comfort and efficiency during extended use. Intuitive placement of controls supports quicker response times and reduces operator error in fast-paced environments.

Common Applications

Warehouse High-Bay Racking

With lift heights up to 335" and a 22.44" reach distance, the EK18RR is built for placing and retrieving pallets in tall racking systems where vertical storage density is critical.

Loading Docks

The combination of 4,000 lb load capacity and free lift capability makes the EK18RR well-suited for loading and unloading trucks at dock height, allowing efficient transfer of heavy palletized freight.

Narrow Aisle Stock Rooms

The stand-up narrow aisle design allows the EK18RR to operate efficiently in tighter aisle configurations where conventional counterbalanced forklifts cannot maneuver, making it ideal for organized stock room environments.

Manufacturing Floors

On manufacturing floors where components and materials need to be moved between workstations and storage areas, the EK18RR's reach truck capability and adjustable fork width support flexible load handling.

General Warehousing and Material Handling

For general warehousing operations requiring consistent pallet movement, inventory restocking, and load positioning, the EK18RR delivers the combined functionality of a forklift, reach truck, and walkie stacker in one unit.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Metal pallets and skids
• Palletized boxed goods and cartons
• Palletized building materials and construction supplies
• Palletized industrial components and equipment

Product Documents

• EKKO Lifts Line Card (PDF)

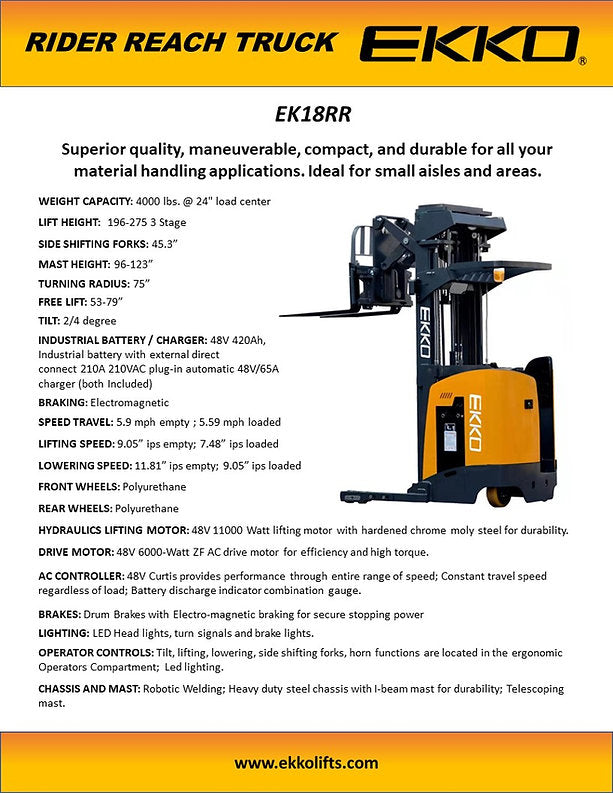

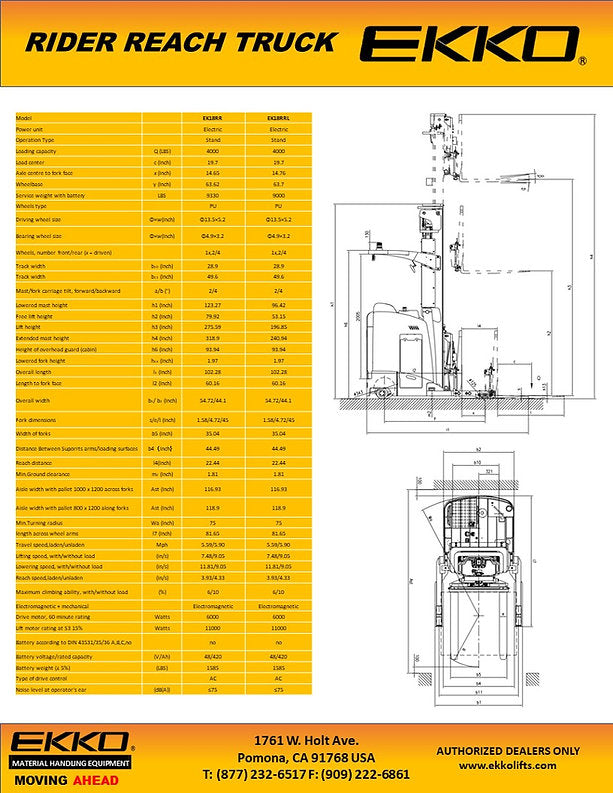

Technical Specifications

Frequently Asked Questions

Q: What is the maximum lift height of the EK18RR?
A: The EK18RR is available in two lift height configurations: 275" and 335", depending on the model variant selected.

Q: Is a charger included with the EK18RR?
A: Yes. The EK18RR includes both the 48V / 420Ah battery and a 48V / 65A, 480V charger. No separate charging equipment purchase is required.

Q: What is the reach distance of the EK18RR?
A: The EK18RR has a reach distance of 22.44", allowing it to extend into racking systems from the aisle without repositioning the truck.

Q: What fork width range does the EK18RR support?
A: The forks are adjustable from 7.9" to 35" in width, accommodating a variety of pallet sizes and load types.

Q: What warranty does the EK18RR carry?
A: The EK18RR is backed by a 3 Years Limited Warranty.
