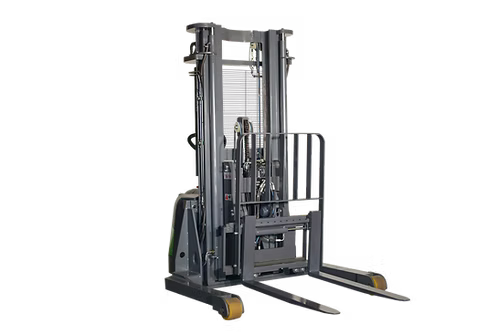

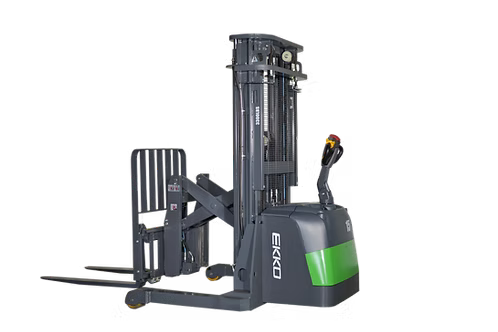

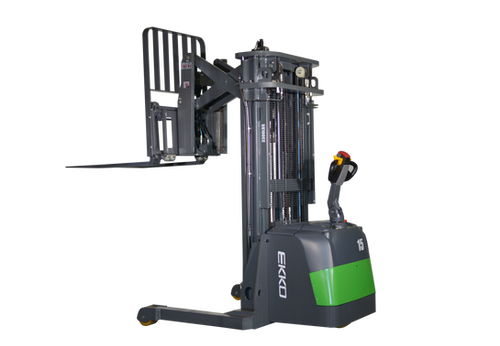

Walkie Reach Truck - 3,300 lb Capacity with 177" Lift Height

EKKO ER15-177Li Walkie Reach Truck — 3,300 lb Capacity with 177" Lift Height

The EKKO ER15-177Li Walkie Reach Truck combines the functionality of a forklift, reach truck, and walkie stacker into a single compact, electric-powered unit built for demanding commercial and industrial environments. With a 3,300 lb load capacity and a lifting height of 177 inches (14.75 ft), it is engineered for loading and unloading trucks, working loading docks, stocking shelves in warehouses, and maneuvering through manufacturing floors and stock rooms. The walkie-style design allows a single operator to control the unit on foot, making it well-suited for facilities where rider forklifts are impractical or space-constrained.

Unlike standard walkie stackers, the ER15-177Li incorporates a 19.7" reach distance, side shift, and tilt — capabilities typically found only on full-sized rider reach trucks — giving contractors and warehouse operators far greater flexibility in pallet placement and load alignment without the footprint or cost of a larger machine. The 24V/200Ah lithium battery with an included 24V/50A charger eliminates battery maintenance associated with lead-acid alternatives and delivers consistent runtime throughout the shift.

Technical Specifications

Key Features & Benefits

177" Lift Height with 60.2" Free Lift

At 14.75 feet of maximum lift height, the ER15-177Li reaches high-bay racking configurations that most walkie stackers cannot access. The 60.2" free lift allows the operator to raise the load without extending the mast, which is critical for working in areas with limited overhead clearance such as truck trailers and low-ceiling stockrooms.

Reach Distance with Side Shift and Tilt

The 19.7" reach distance enables the forks to extend into a rack without repositioning the entire machine, improving cycle efficiency in narrow-aisle environments. Side shift and tilt give operators the ability to fine-tune load alignment precisely, reducing the risk of rack damage and improving pallet seating accuracy.

24V / 200Ah Lithium Battery with Included Charger

The lithium battery eliminates the watering, equalization charges, and acid maintenance required by lead-acid units, reducing downtime and total cost of ownership. The included 24V/50A charger means the machine is ready to deploy immediately upon delivery without additional procurement.

Curtis Instrument Controller with EPS (Electronic Power Steering)

The Curtis Instrument Controller is an industry-recognized platform that provides precise drive and lift control while enabling straightforward diagnostics and serviceability. AC speed-control electronic power steering reduces operator fatigue during extended shifts and provides responsive, consistent steering feel across varying load conditions.

Steel Construction with Robotic Welding

The full steel frame constructed with robotic welding delivers consistent weld quality and structural integrity suited to high-cycle industrial use. This build quality supports repeated use across varied terrain, impact events, and directional changes without compromising frame rigidity.

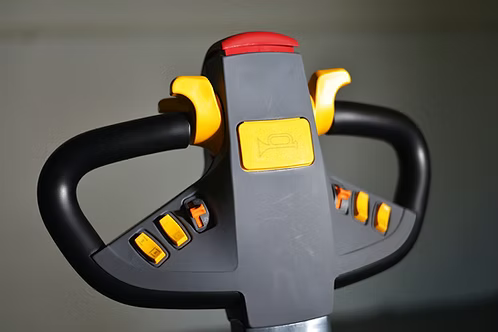

Ergonomic Handle and Controls with Lift Control Valve

The ergonomic handle design and operator-accessible lift control valve allow a single worker to manage load placement efficiently while maintaining control and awareness of the machine's position. This configuration minimizes physical strain during long operating sessions in warehouse and distribution environments.

Common Applications

Loading and Unloading Trucks

The combination of free lift and compact overall length allows the ER15-177Li to operate inside truck trailers, staging and retrieving palletized loads without requiring a full rider forklift on the dock.

Loading Dock Operations

The machine's turning radius and walkie format make it practical for high-frequency dock work where space between trailers and building entry points is limited.

Warehouse High-Bay Racking

With 177" of lift height, the ER15-177Li can place and retrieve pallets in multi-level racking systems, making it a capable single-unit solution for warehouses that need both ground-level and elevated storage access.

Manufacturing Floor Material Handling

On manufacturing floors where materials must be moved between production stations and storage areas, the walkie reach truck's compact footprint and electric drive allow it to operate in aisles and spaces that larger equipment cannot navigate.

Stock Room Replenishment

The side shift and tilt features allow precise positioning of product on storage shelves without repeated machine repositioning, supporting efficient stock room replenishment cycles.

Compatible Materials

• Standard palletized loads up to 3,300 lb
• Polyurethane wheel-compatible smooth and semi-smooth concrete floors
• Warehouse racking systems within 177" lift range
• Standard pallet dimensions compatible with 45.3" fork length and 32.2" fork width
• Truck trailer flooring (facilitated by free lift capability)

Frequently Asked Questions

Q: Is the charger included with the ER15-177Li?
A: Yes. A 24V/50A charger is included with the machine at no additional cost.

Q: Does this unit include a battery?
A: Yes. A 24V/200Ah lithium battery is included.

Q: What is the maximum lifting height of the ER15-177Li?
A: The maximum lifting height is 177 inches (14.75 feet).

Q: Does this reach truck have side shift and tilt?
A: Yes. Both side shift and tilt are standard on the ER15-177Li.

Q: What type of wheels does the ER15-177Li use?
A: The machine is equipped with polyurethane wheels, which are suited for smooth and semi-smooth interior floor surfaces.

Q: What controller is used on this unit?
A: The ER15-177Li uses a Curtis Instrument Controller, a widely recognized platform in the electric lift equipment industry.
