EKKO EK20TLP Liquid Propane 4-Wheel Forklift – 4,000 lb Capacity with Tier 4 EPA/CARB 4 Compliance

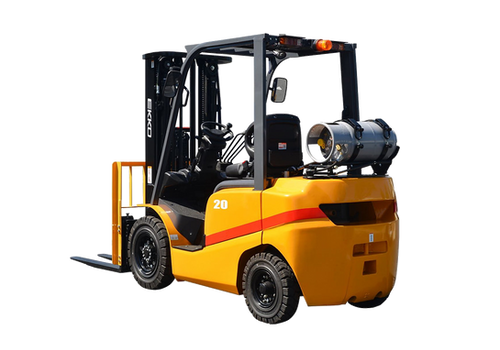

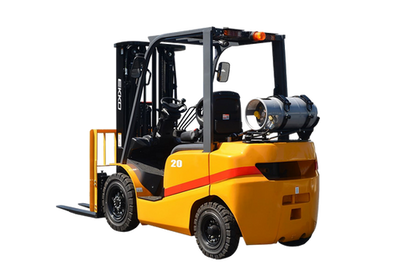

The EKKO EK20TLP is a liquid propane (LPG) 4-wheel counterbalanced forklift engineered for demanding material handling, warehousing, and distribution environments. With a 4,000 lb load capacity at a 24-inch load center and a maximum lift height of 185 inches, it is built to handle heavy loads at height in both indoor and outdoor applications. Power comes from a Kubota or PSI 2.4L engine rated at 63 HP @ 2,700 RPM, meeting Tier 4 EPA and CARB 4 emissions standards for operation in regulated environments. Solid pneumatic tires and a hydraulic floor-pedal service brake deliver reliable traction and stopping power on job-site surfaces.

The EK20TLP differentiates itself through a combination of operator comfort engineering, premium hydraulic components, and factory-installed attachments not always found at this price point. A Cascade® Side Shift and a Shimadzu® 4-Way Valve (Pre-Plumbed) come standard, reducing the need for aftermarket add-ons and allowing immediate productive deployment.

Key Features & Benefits

Tier 4 EPA / CARB 4 Compliant Engine

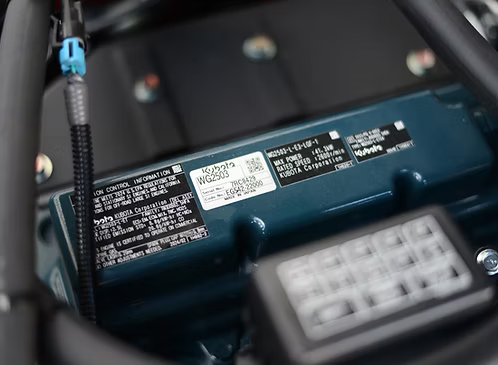

The Kubota or PSI 2.4L engine meets both Tier 4 EPA and CARB 4 emissions regulations, making the EK20TLP suitable for use in California and other emissions-sensitive regions. At 63 HP @ 2,700 RPM, it delivers the power needed for consistent lift cycles without sacrificing compliance. Contractors working on regulated job sites can deploy this unit without risk of emissions-related work stoppages.

Cascade® Side Shift — Standard Equipment

A Cascade® Side Shift is included as standard, allowing operators to laterally reposition loads without repositioning the entire forklift. This improves pallet placement precision and reduces cycle times in tight staging areas. Having it factory-installed eliminates the cost and downtime of sourcing and retrofitting a third-party attachment.

Shimadzu® 4-Way Valve (Pre-Plumbed)

The Shimadzu® 4-Way Valve comes pre-plumbed from the factory, providing an optimized hydraulic circuit ready for auxiliary attachments. This reduces installation labor and ensures hydraulic integrity from day one. The pre-plumbed configuration supports a more energy-efficient hydraulic system with lower fuel consumption during operation.

Enhanced Operator Comfort and Ergonomics

The cab features a semi-suspension seat, small-diameter steering wheel, electro-hydraulic direction changing, and an automobile-type double combined switch to reduce operator fatigue during extended shifts. A cushion connection and full-suspension cab design absorbs drivetrain and surface vibrations. The heightened overhead guard with a large arc-shape front leg increases visibility and headroom for the operator.

Mast Dampening System

A lowering damping device inside the lifting system reduces mast shock and vibration during load descent, minimizing noise caused by goods contacting the ground. This protects both the load and the lift structure over repeated cycles. It also contributes to a quieter operating environment in warehouse and distribution settings.

Solid Pneumatic Tires for Mixed-Surface Operation

The 7.00-12-12PR front and 6.00-9-10PR rear solid pneumatic tires provide the puncture resistance of solid construction combined with the cushioning profile of a pneumatic tire footprint. This makes the EK20TLP suitable for operation on both warehouse floors and rougher outdoor job-site surfaces. A 4.3-inch minimum ground clearance at the mast further supports uneven terrain traversal.

Common Applications

Warehouse Material Handling

With a 185-inch lift height and 4,000 lb capacity, the EK20TLP is suited for racking, stacking, and retrieving palletized loads in warehouse environments. The Cascade® Side Shift enables precise pallet placement without full truck repositioning.

Distribution Center Operations

Designed for warehousing and distribution, the EK20TLP supports high-throughput load movement between staging, storage, and dock areas. Travel speeds of up to 11.8 mph unloaded support efficient cross-floor transit.

Loading Dock and Trailer Loading

The 43.7-inch free lift height allows operators to raise loads to working height without extending the mast, useful in trailer interiors and areas with overhead clearance constraints. The overall length with forks of 141.8 inches should be considered when planning dock approach angles.

Outdoor and Mixed-Surface Job Sites

Solid pneumatic tires and 4.3 inches of ground clearance at the mast allow operation on construction sites and staging yards where surfaces are uneven or debris is present. LPG power eliminates the dependency on charging infrastructure in locations without reliable electrical supply.

Heavy Material Staging and Positioning

The 4,000 lb rated capacity and 42.1-inch fork length accommodate standard industrial pallet sizes and heavy construction materials. The small turning radius and flexible steering support maneuvering in congested staging areas.

Compatible Materials

• Palletized construction materials (block, brick, bagged goods)
• Lumber and sheet goods on standard pallets
• Steel and heavy industrial materials within 4,000 lb capacity
• Warehouse racking loads at up to 185-inch lift height
• Bulk bagged materials (concrete, aggregate, sand)
• Equipment and machinery on pallets or skids within rated capacity

Technical Specifications

Frequently Asked Questions

Q: Is the EK20TLP approved for use in California?
A: Yes. The engine meets CARB 4 regulations, making the EK20TLP compliant for operation in California and other CARB-regulated jurisdictions.

Q: Does the side shift come standard or is it an optional add-on?
A: The Cascade® Side Shift is included as standard equipment on the EK20TLP.

Q: Is the hydraulic valve pre-plumbed for auxiliary attachments?
A: Yes. The Shimadzu® 4-Way Valve comes pre-plumbed from the factory, allowing auxiliary attachment connection without additional hydraulic installation work.

Q: Can this forklift be used outdoors on rough surfaces?
A: The EK20TLP is equipped with solid pneumatic tires and has 4.3 inches of ground clearance at the mast, which supports operation on uneven or debris-covered outdoor surfaces typical of construction and staging environments.

Q: What engine options are available?
A: The EK20TLP is available with either a Kubota or PSI 2.4L LPG engine, both rated at 63 HP @ 2,700 RPM.
