4-Wheel Electric Lithium Forklift - 5,000 lb Capacity with 185" Lift Height

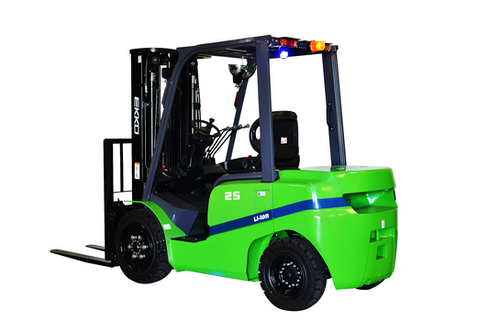

EK25GT-Li & EK25GT-212LI 4-Wheel Electric Lithium Forklift — 5,000 lb Capacity for Heavy-Duty Material Handling

The EK25GT-Li and EK25GT-212LI are seated, 4-wheel electric forklifts engineered for contractors and trades professionals requiring dependable 5,000 lb lift capacity across demanding work environments. Powered by an 80V / 205Ah lithium battery with an InMotion® controller, these machines deliver consistent performance on loading docks, manufacturing floors, stockrooms, and warehouses. Available in two mast configurations — 185" lift height (EK25GT-Li) and 212" lift height (EK25GT-212LI) — they cover a wide range of vertical reach requirements in a single platform.

Unlike conventional lead-acid electric forklifts, the lithium battery system eliminates watering and acid maintenance cycles, while solid pneumatic tires provide the terrain durability needed on jobsites with uneven or rough surfaces. Steel construction with robotic welding ensures frame integrity under heavy usage, repeated impacts, and directional changes.

Key Features & Benefits

80V / 205Ah Lithium Battery System

The lithium battery delivers 80 volts of drive power with a 205Ah capacity, supporting sustained operation on demanding material handling shifts. Charging is handled by a 3-phase 480V charger, with optional 220V and 110V charger configurations available for sites where 480V service is unavailable.

InMotion® Controller

The InMotion® controller manages drive and lift functions, providing precise, responsive control during loaded and unloaded travel. Consistent laden and unladen traveling speeds of 9.3 mph help maintain predictable cycle times across operations.

Cascade® Side Shift

The integrated Cascade® side shift allows operators to laterally adjust the forks without repositioning the entire machine, improving placement accuracy when stacking or loading. This reduces time spent on micro-positioning and minimizes wear on the drivetrain from repeated repositioning maneuvers.

Shimadzu® 4-Way Valve

The Shimadzu® 4-way hydraulic valve controls lift, tilt, and side-shift functions with reliable, precise hydraulic response. Using a branded industrial-grade valve supports long service life and consistent hydraulic performance under continuous use.

Solid Pneumatic Tires

Solid pneumatic tires handle the varied surface conditions found on construction sites, loading docks, and warehouse floors without the risk of flats. This reduces unplanned downtime and maintenance associated with air-filled tires in environments with debris or rough surfaces.

Steel Construction with Robotic Welding

The frame is built from high-quality steel using robotic welding processes, producing consistent, high-integrity weld joints throughout the structure. This construction approach supports the durability required for heavy daily usage, directional changes, and load impacts common in contractor and industrial environments.

Dual Mast Height Options

With lift heights of 185" (EK25GT-Li) and 212" (EK25GT-212LI) and a free lift of 43.7", operators can select the mast configuration that matches their specific rack height or clearance requirements. A lowered mast height of 83" on the EK25GT-Li supports operation in facilities with overhead clearance restrictions.

Hydraulic Foot Pedal Service Brake

The hydraulic foot pedal service brake provides controlled, reliable stopping force for a loaded machine weighing up to 8,344 lbs service weight. Hydraulic braking offers consistent brake feel and response regardless of load conditions.

Common Applications

Loading Dock Operations

The 5,000 lb load capacity and 9.3 mph travel speed support fast truck loading and unloading cycles at busy receiving and shipping docks.

Warehouse Racking & Storage

Lift heights of 185" or 212" with Cascade® side shift allow precise pallet placement into elevated racking systems in warehouse environments.

Manufacturing Floor Material Handling

The seated configuration, ergonomic controls, and consistent travel speed support efficient movement of heavy materials and components across manufacturing floor operations.

Stockroom Replenishment

The 43.7" free lift and compact overall width of 45.2" allow operation in tighter interior spaces typical of stockrooms and storage areas.

Truck Loading and Unloading

With a fork length of 42.1" and a load center distance of 24", the forklift is configured to engage standard pallet loads for efficient truck loading and unloading tasks.

Compatible Materials

• Palletized freight and materials up to 5,000 lbs
• Standard pallet loads (24 in load center distance)
• Construction materials on loading docks and warehouse floors
• Manufacturing components and assemblies
• Stockroom inventory on racking systems up to 212" lift height
• Surfaces: warehouse floors, manufacturing floors, loading docks, and varied terrain (solid pneumatic tires)

Technical Specifications

Frequently Asked Questions

Q: What are the two available lift height configurations?
A: The EK25GT-Li provides a maximum lift height of 185 inches, while the EK25GT-212LI reaches 212 inches. Both models share the same 43.7" free lift specification.

Q: What charger voltage is standard, and are other voltages available?
A: The standard charger is a 3-phase 480V unit. Optional 220V and 110V chargers are available for sites that do not have 480V service.

Q: Why are solid pneumatic tires specified on this forklift?
A: Solid pneumatic tires are designed to withstand diverse terrains, heavy usage, and impacts without the risk of flats, making them suitable for both indoor and outdoor jobsite surfaces.

Q: What is the traveling speed of this forklift?
A: The EK25GT-Li and EK25GT-212LI travel at 9.3 mph both laden and unladen, providing consistent cycle times regardless of whether a load is being carried.
