Diesel Forklift with Solid Pneumatic Tires - 4,000 lb Capacity

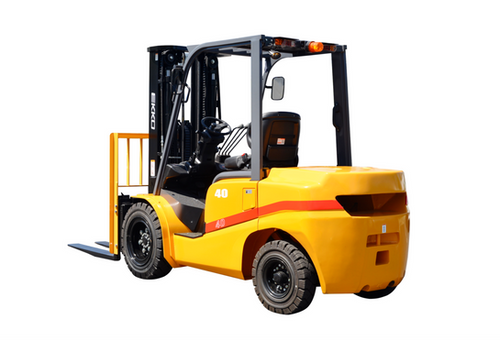

EKKO Diesel Forklift with Solid Pneumatic Tires — Heavy-Duty Material Handling for Demanding Job Sites

The EKKO Diesel Forklift series is engineered for contractors and trades professionals who require reliable, high-capacity material handling in warehousing, distribution, and construction environments. Available in five models — EK20D, EK25D, EK30D, EK35D, and EK40D — these machines deliver load capacities ranging from 4,000 to 8,500 lbs, powered by a Tier 4 EPA-compliant Mitsubishi 4EG engine rated at 49 HP @ 2,250 RPM. Solid pneumatic tires provide the durability needed for rough or uneven surfaces without the risk of flats. This series is built to handle the full spectrum of material handling demands across a wide range of jobsite and facility conditions.

Unlike many competitors, the EKKO diesel forklift comes standard with a Cascade® Side Shift and a Shimadzu® 4-Way Valve that is pre-plumbed from the factory, eliminating costly add-on retrofits and reducing downtime. The combination of a heightened overhead guard with a large arc-shaped front leg, a multifunctional suspended seat, and an impedance composited muffler sets this unit apart in operator comfort and noise reduction.

Key Features & Benefits

Tier 4 EPA-Compliant Mitsubishi 4EG Engine

The Mitsubishi 4EG engine delivers 49 HP at 2,250 RPM while meeting Tier 4 EPA emissions standards, making this forklift compliant for use in regulated work environments. Contractors can operate with confidence knowing the unit meets current emissions requirements without sacrificing power output.

Solid Pneumatic Tires

Solid pneumatic tires (7.00-12-12PR front / 6.00-9-10PR rear) provide the cushioning and traction of a pneumatic tire without the risk of punctures or flats. This makes the forklift well-suited for outdoor yards, loading docks, and mixed-surface jobsites where downtime from tire failure is not acceptable.

Cascade® Side Shift — Standard Equipment

The Cascade® Side Shift is included as standard on all models, allowing operators to laterally adjust the forks without repositioning the entire machine. This improves placement precision and speeds up load cycles in tight staging areas and warehouse aisles.

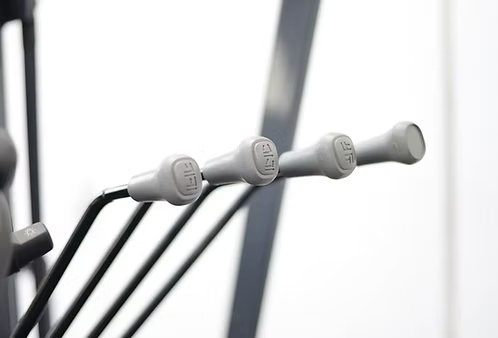

Shimadzu® 4-Way Valve — Pre-Plumbed from Factory

The Shimadzu® 4-Way Valve arrives pre-plumbed, meaning the hydraulic circuit for attachment use is ready without additional shop labor or parts. This saves contractors time and cost when adding specialized forks or attachments in the field.

Enhanced Operator Environment

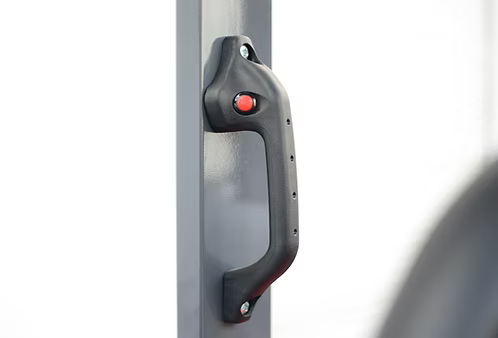

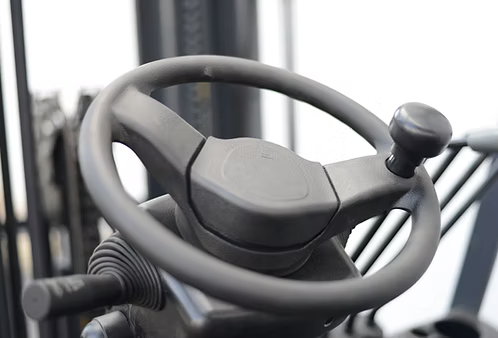

The enlarged operation space features a heightened overhead guard with a large arc-shaped front leg for improved visibility and structural protection. The multifunctional suspended seat reduces vibration transmitted to the operator and provides balanced weight support, reducing fatigue over long shifts. The adjustable steering wheel mechanism is positioned for easy reach, and the impedance composited muffler reduces overall sound output during operation.

High Lift Height and Free Lift Capability

With a maximum lift height of 185 inches and a free lifting height of 43.7 inches, these forklifts can service tall racking systems while still maneuvering in low-clearance areas without raising the mast. The mast overall height of 83 inches and overall height with forks lifted of 225 inches give contractors the clearance data needed to plan for facility entry and storage configurations.

Common Applications

Warehouse Material Handling

The EK series is purpose-built for warehousing operations, capable of lifting loads up to 8,500 lbs to rack heights of 185 inches. The Cascade® Side Shift enables precise pallet placement without repeated repositioning.

Distribution Center Operations

Fast traveling speeds — 10.6 mph loaded and 11.8 mph unloaded — support high-throughput distribution environments where cycle time directly impacts productivity.

Construction Site Material Movement

Solid pneumatic tires and a minimum ground clearance of 4.3 inches at the mast make these forklifts capable of navigating the uneven, debris-covered surfaces typical of active construction sites.

Loading Dock and Freight Staging

With an overall length of 144.6 inches with forks and a wheelbase of 62.9 inches, the EK series is sized for standard loading dock use, efficiently transferring freight between trucks and storage areas.

Multi-Attachment Operations

The pre-plumbed Shimadzu® 4-Way Valve enables the forklift to run hydraulic attachments without additional plumbing work, making it adaptable for specialized material handling tasks on the same machine.

Compatible Materials

• Palletized freight and packaged goods
• Construction materials (lumber, pipe, steel, block, bagged materials)
• Bulk containers and crates
• Mixed-surface yards (gravel, asphalt, concrete)
• Standard warehouse racking and shelving systems
• Loading dock and truck trailer floors

Technical Specifications

Frequently Asked Questions

Q: What load capacities are available across the EK diesel forklift models?
A: The five models cover load capacities of 4,000 lbs (EK20D), 5,000 lbs (EK25D), 6,000 lbs (EK30D), 7,000 lbs (EK35D), and 8,500 lbs (EK40D), all at a 24-inch load center.

Q: Is the Side Shift included as standard equipment or an add-on?
A: The Cascade® Side Shift is included as standard equipment on all EK diesel forklift models.

Q: Does this forklift meet current EPA emissions requirements?
A: Yes. The Mitsubishi 4EG engine is Tier 4 EPA compliant, meeting current emissions standards for diesel-powered industrial equipment.

Q: Why are solid pneumatic tires used instead of cushion tires?
A: Solid pneumatic tires provide the ride cushioning and traction profile of a pneumatic tire without the risk of flats, making them appropriate for outdoor surfaces, loading docks, and mixed-terrain jobsite conditions where cushion tires would be unsuitable.

Q: Is the 4-Way Valve already installed and plumbed from the factory?
A: Yes. The Shimadzu® 4-Way Valve comes pre-plumbed from the factory, so no additional hydraulic installation is required before running compatible attachments.
