Liquid Propane 4 Wheel Forklift | 5,000 lb Capacity

EKKO EK25TLP Liquid Propane 4-Wheel Forklift — 5,000 lb Capacity with Tier 4 EPA/CARB 4 Compliance

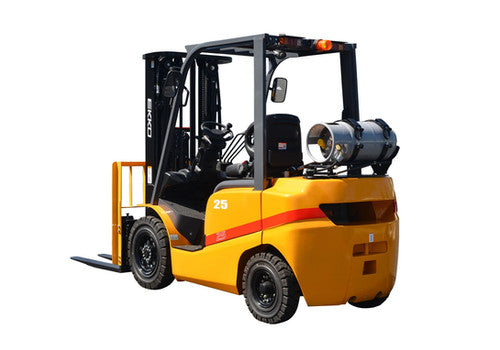

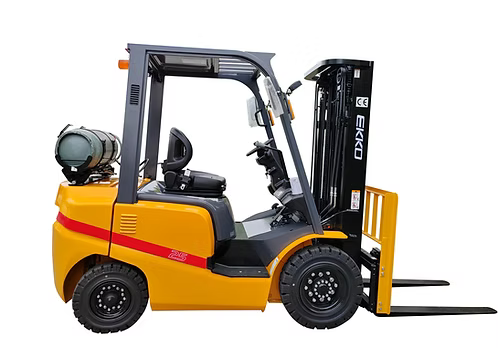

The EKKO EK25TLP is a liquid propane (LPG) 4-wheel counterbalanced forklift engineered for demanding material handling, warehousing, and distribution operations. Rated at 5,000 lbs load capacity with a 24-inch load center and a maximum lift height of 185 inches, it is built to handle heavy loads in both indoor and outdoor environments. Powered by a Kubota or PSI 2.4L engine producing 63 HP at 2,700 RPM, this unit delivers consistent performance across high-cycle applications. Its Tier 4 EPA and CARB 4 emissions compliance makes it suitable for use in regulated markets and environmentally sensitive jobsites.

The EK25TLP differentiates itself through its combination of a Cascade® Side Shift, a Shimadzu® 4-Way Valve (Pre-Plumbed), and solid pneumatic tires — features that together enhance load control, attachment versatility, and stability on rough or uneven surfaces. The optimized hydraulic system is designed for lower fuel consumption compared to less efficient propane units, reducing operating costs over time.

Key Features & Benefits

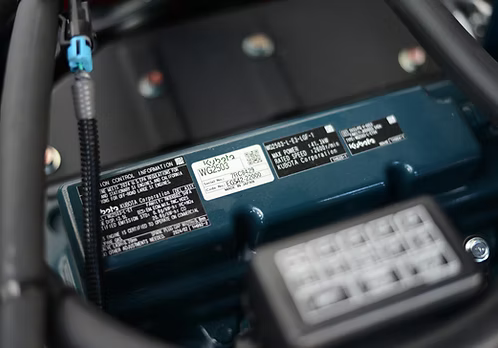

Kubota or PSI 2.4L LPG Engine — 63 HP @ 2,700 RPM

The high-output propane engine delivers strong lifting and travel performance across sustained, high-cycle operations. At 63 HP, operators can maintain productive travel speeds of up to 10.6 mph loaded and 11.8 mph unloaded, keeping job site throughput high. The engine meets Tier 4 EPA and CARB 4 emissions standards, making it compliant for use in California and other regulated regions.

Cascade® Side Shift

The factory-installed Cascade® Side Shift allows operators to laterally adjust fork position without repositioning the entire truck, improving load placement accuracy and reducing cycle times. This is especially valuable in tight rack aisles and staging areas where precise pallet alignment is critical.

Shimadzu® 4-Way Valve (Pre-Plumbed)

The pre-plumbed Shimadzu® 4-Way Valve enables attachment-ready hydraulic functionality right out of the box, reducing the cost and downtime associated with aftermarket hydraulic plumbing. Contractors requiring specialized attachments — such as rotators, clamps, or push-pulls — can integrate them immediately without additional hydraulic modification.

Solid Pneumatic Tires — 7.00-12-12PR / 6.00-9-10PR

Solid pneumatic tires eliminate the risk of flats while still providing the cushioning and outdoor traction characteristics of pneumatic-style tires. This makes the EK25TLP well-suited for mixed-surface environments including loading docks, construction sites, and warehouses with rough flooring.

Enhanced Operator Comfort and Reduced Vibration

The unit features a semi-suspension seat, a small-diameter steering wheel, and electro-hydraulic directional control with an automobile-type combined switch — all designed to reduce operator fatigue during extended shifts. Cushion connections and a whole-suspension cab design absorb truck vibrations, while a lowering damping device inside the lifting system reduces mast shock and minimizes noise from load descent.

Heightened Overhead Guard with Large Arc-Shape Front Leg

The enlarged and heightened overhead guard with a large arc-shaped front leg increases visibility and operator headroom, improving both safety and sightlines during travel and lifting. The design also contributes to a more comfortable operating environment over long work cycles.

Optimized Hydraulic System for Fuel Efficiency

The optimized hydraulic system is engineered to reduce unnecessary energy draw from the LPG engine, resulting in lower fuel consumption during normal operation. For contractors running multiple shifts, reduced propane consumption directly translates to lower operating costs.

Small Turning Radius for Flexible Maneuvering

The compact turning radius allows the EK25TLP to navigate tight warehouse aisles, loading dock areas, and congested job site layouts with minimal repositioning. Combined with a 62.9-inch wheelbase and 45.2-inch overall width, the truck is designed for environments where space is at a premium.

Common Applications

Warehouse Material Handling

With a 5,000 lb capacity and 185-inch lift height, the EK25TLP is well-suited for stacking palletized goods in standard warehouse racking systems. The Cascade® Side Shift enables precise pallet placement without repeated truck repositioning.

Distribution Center Operations

High travel speeds — up to 11.8 mph unloaded — allow for fast movement between staging areas and loading docks in high-throughput distribution environments. The pre-plumbed hydraulic valve supports quick attachment changes to accommodate varied load types.

Loading Dock and Trailer Loading/Unloading

The solid pneumatic tires and 4.3-inch minimum ground clearance at the mast allow the EK25TLP to transition between dock plates and trailers reliably. A 185-inch lift height provides sufficient reach for stacking loads within standard trailer heights.

Construction Site Material Staging

The LPG powertrain and solid pneumatic tires make this unit effective on outdoor construction sites where electric forklifts are impractical due to uneven terrain or lack of charging infrastructure. The unit can handle heavy building materials and equipment with its 5,000 lb rated capacity.

Manufacturing and Production Facilities

The EK25TLP's CARB 4 and Tier 4 EPA compliance allows it to operate in facilities with strict emissions controls, including those in California. Its vibration-dampening features help maintain operator productivity during full-shift production runs.

Compatible Materials

• Palletized construction materials (lumber, block, tile, roofing)
• Bagged goods (concrete, mortar, aggregate)
• Bundled pipe, conduit, and structural steel
• Crated and boxed equipment and machinery
• Racked warehouse inventory on standard pallet racking
• Bulk material containers and totes

Technical Specifications

Frequently Asked Questions

Q: Is the EK25TLP compliant for use in California?
A: Yes. The EK25TLP meets Tier 4 EPA and CARB 4 emissions regulations, making it compliant for operation in California and other states that follow CARB standards.

Q: Does this forklift come ready to use with hydraulic attachments?
A: Yes. The Shimadzu® 4-Way Valve is pre-plumbed from the factory, so compatible hydraulic attachments can be connected without additional hydraulic plumbing work.

Q: What engine options are available?
A: The EK25TLP is available with either a Kubota or PSI 2.4L LPG engine, both rated at 63 HP at 2,700 RPM.

Q: Are the tires suitable for outdoor or rough-surface use?
A: Yes. The EK25TLP is equipped with solid pneumatic tires (7.00-12-12PR front / 6.00-9-10PR rear), which provide flat-free operation with pneumatic-style traction suitable for outdoor and mixed-surface environments.

Q: What is the maximum lift height of the EK25TLP?
A: The maximum lift height is 185 inches, with an overall height of 225 inches when forks are fully raised and a free lifting height of 43.7 inches.
