LPG Cushion Tire Forklift – 6,000 lb Capacity

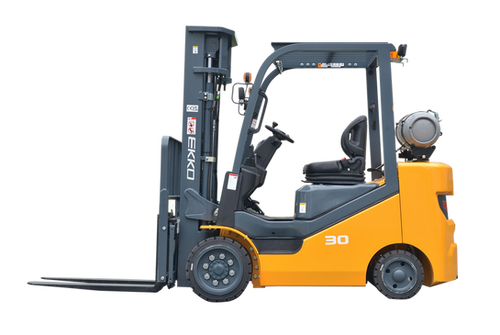

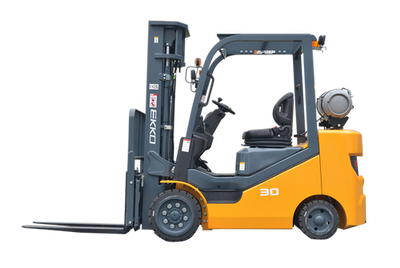

EKKO EK30SLP LPG Cushion Tire Forklift – 6,000 lb Capacity with Mitsubishi-Powered Efficiency

The EKKO EK30SLP is a liquid propane (LPG) powered, 4-wheel cushion tire forklift built for demanding material handling, warehousing, and distribution environments. With a 6,000 lb load capacity and a 189-inch lift height, it handles high-density indoor operations where consistent throughput and reliability are non-negotiable. The unit is driven by a Mitsubishi 4G64 PSI engine rated at 64 HP and is fully Tier 4 EPA and CARB 4 compliant, making it suitable for use in regions with strict emissions requirements.

Unlike generic LPG forklifts, the EK30SLP combines an optimized hydraulic system for lower fuel consumption with an enhanced operator environment — including a semi-suspension seat, small-diameter steering wheel, and electro-hydraulic directional control — delivering measurable improvements in both operational efficiency and driver comfort over extended shifts.

Key Features & Benefits

Mitsubishi 4G64 PSI Engine – Tier 4 EPA / CARB 4 Compliant

The Mitsubishi 4G64 PSI engine delivers 64 HP at 2,700 RPM on LPG, providing the power needed for consistent lifting and travel across a full shift. Tier 4 EPA and CARB 4 compliance means this unit meets the most stringent emissions standards in the U.S., including California, reducing regulatory exposure for contractors operating in controlled or regulated facilities.

Optimized Hydraulic System for Fuel Efficiency

The EK30SLP features an optimized hydraulic system engineered to reduce fuel consumption without sacrificing performance. For contractors managing fleet operating costs, lower fuel burn per cycle directly impacts the bottom line over the course of a workday or project.

Enhanced Operator Comfort and Control

The enlarged operator space, heightened overhead guard with a large arc-shaped front leg, semi-suspension seat, and small steering wheel are designed to reduce operator fatigue during long shifts. Electro-hydraulic directional changing and an automobile-type double combined switch further simplify control inputs and improve response.

Vibration and Shock Dampening System

A cushion connection and full-suspension cab design absorbs truck vibration, while a lowering damping device inside the lifting system reduces mast shock and minimizes noise caused by loads contacting the ground. This protects both the operator and the cargo, especially in environments where goods are fragile or high-value.

Small Turning Radius for Flexible Maneuvering

The EK30SLP is engineered with a small turning radius, making it highly maneuverable in tight warehouse aisles and loading dock configurations. With an overall width of 44 inches and a wheelbase of 58 inches, it navigates confined spaces that larger forklifts cannot.

Pattern Cushion Tires for Smooth Indoor Surfaces

Equipped with 21x8-15 front and 16x6-10.5 rear pattern cushion tires, this forklift is optimized for hard, smooth indoor surfaces such as concrete warehouse floors. Cushion tires provide a lower ride height and a smaller footprint compared to pneumatic alternatives, improving stability under load.

Common Applications

Warehouse Material Handling

With a 189-inch lift height and 6,000 lb capacity, the EK30SLP is well-suited for loading and unloading racking systems and staging materials across large warehouse floors.

Distribution Center Operations

The forklift's 10.8 mph travel speed (loaded and unloaded) and responsive hydraulic controls support high-cycle distribution workflows where speed and consistency are critical.

Loading Dock and Truck Loading

Its cushion tire design and low ground clearance (3.5 inches at the mast) make it effective for transitioning between loading docks and flat warehouse floors.

Indoor Manufacturing Facilities

CARB 4 and Tier 4 EPA compliance makes the EK30SLP appropriate for use in enclosed manufacturing environments where emissions controls are enforced.

Pallet Staging and Storage

The 42 x 4.9 x 1.77-inch forks and 39-inch free lift height allow precise pallet placement in racking applications without raising the mast unnecessarily in height-restricted areas.

Compatible Materials

• Standard palletized loads up to 6,000 lbs
• Boxed and crated goods
• Construction materials (lumber, drywall, bagged goods)
• Bagged and bulk packaged materials
• Racked inventory in standard pallet racking systems
• Smooth, hard indoor floor surfaces (concrete, finished warehouse floors)

Technical Specifications

Frequently Asked Questions

Q: Is the EK30SLP approved for use in California?
A: Yes. The EK30SLP's Mitsubishi 4G64 PSI engine meets both Tier 4 EPA and CARB 4 emissions standards, making it compliant for use in California and other states that enforce CARB regulations.

Q: Is this forklift suitable for outdoor use?
A: The EK30SLP is equipped with pattern cushion tires, which are designed for smooth, hard indoor surfaces such as concrete warehouse floors. Cushion tire forklifts are not recommended for uneven, loose, or outdoor terrain.

Q: What is the maximum lift height?
A: The EK30SLP lifts to a maximum height of 189 inches, with a free lift height of 39 inches for operation in areas with overhead height restrictions.

Q: What fuel type does this forklift use?
A: This unit runs on liquid propane (LPG). It is not a diesel or electric model.
