3-Wheel Lithium Forklift - 4,000 lb Capacity with 185" Lift Height

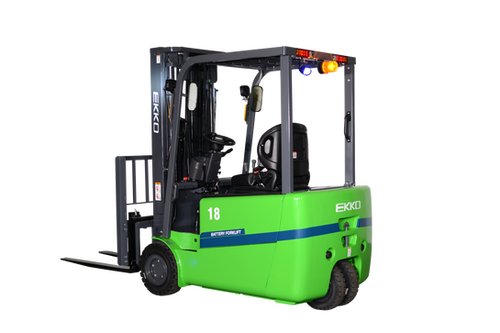

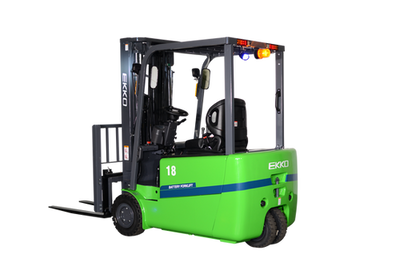

EKKO EK18AT-185Li 3-Wheel Lithium Forklift — 4,000 lb Capacity with 185" Lift Height

The EKKO EK18AT-185Li is a 3-wheel lithium-electric rider forklift engineered for demanding material handling in warehouses, manufacturing floors, loading docks, stock rooms, and truck loading/unloading applications. It delivers a 4,000 lb load capacity with a maximum lift height of 185 inches (15.4 feet) and a free lift height of 43.7 inches, making it well-suited for high-rack environments where underclearance matters. Powered by a 48V/202Ah lithium battery included with purchase, the EK18AT-185Li provides consistent performance without the maintenance overhead of lead-acid alternatives.

Unlike conventional lead-acid electric forklifts, the EK18AT-185Li uses a lithium drive system paired with an InMotion® controller and Cascade® side shift, delivering precise load positioning and responsive handling. Solid pneumatic tires, dual-motor configuration (4.75 kW drive / 10 kW lift), and robotic-welded steel construction give this unit the durability to handle varied terrain and heavy-use cycles that typical indoor electrics cannot sustain.

Key Features & Benefits

48V / 202Ah Lithium Battery (Included)

The lithium battery ships with the unit, eliminating the added procurement cost of sourcing a separate power source. Lithium chemistry supports opportunity charging and reduces downtime compared to lead-acid systems that require full charge cycles and regular watering maintenance.

Dual-Motor Drive System (4.75 kW Drive / 10 kW Lift)

Separate dedicated motors for drive and lift functions allow each system to operate at its optimal power level without competing for output. The 10 kW lift motor supports lifting speeds of 13.8 in/s laden and 20.5 in/s unladen, keeping cycle times productive under load.

InMotion® Controller

The InMotion® controller manages drive and lift functions for smooth, precise operation. For contractors and operators running tight warehouse aisles or dock approaches, responsive controller technology reduces the risk of load shifts and positioning errors.

Cascade® Side Shift

Factory-installed Cascade® side shift allows lateral fork adjustment without repositioning the entire forklift, improving load placement accuracy at height. This is particularly valuable when stacking to the full 185-inch lift height where small misalignments are amplified.

Solid Pneumatic Tires on 3-Wheel Configuration

Solid pneumatic tires (200/50-10 front, 140x55-9 rear) provide cushioning and puncture resistance across uneven surfaces, loading docks, and outdoor-adjacent areas without the risk of flats. The 3-wheel layout tightens the minimum turning radius to 61 inches, enabling operation in confined spaces where 4-wheel forklifts cannot maneuver.

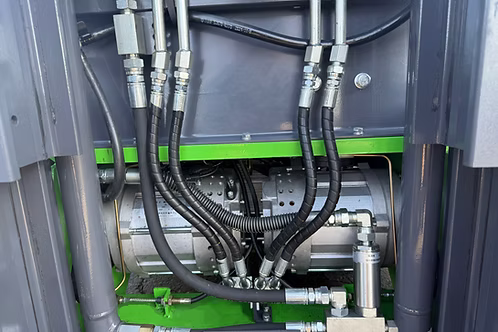

Shimadzu® 4-Way Valve (Pre-Plumbed)

The pre-plumbed Shimadzu® 4-way valve provides a ready-to-use hydraulic circuit for auxiliary attachments without additional field plumbing. Contractors who need to run specialized tooling or attachments can do so without custom hydraulic work.

Robotic-Welded Steel Construction

The frame is manufactured with robotic welding for consistent weld quality throughout, supporting durability under repeated impacts, directional changes, and heavy usage cycles typical of active job sites and warehouse operations.

3-Phase 480V Charger with Multi-Voltage Options

The standard 48V/100A charger operates on 3-phase 480V power common to commercial and industrial facilities. Optional 220V and 110V configurations are available for operations without 480V infrastructure, broadening deployment flexibility.

Common Applications

Warehouse High-Rack Storage

With a 185-inch maximum lift height and 43.7-inch free lift, the EK18AT-185Li is built for stacking and retrieving pallets in high-bay racking systems without raising the mast in low-clearance travel aisles.

Loading Dock Operations

The unit's 4,000 lb capacity and 10 mph travel speed (laden and unladen) support efficient loading and unloading of trucks at commercial and industrial docks.

Manufacturing Floor Material Movement

Consistent 20% graded climbing ability with load and solid pneumatic tires allow the forklift to navigate ramps and uneven manufacturing floor transitions while transporting heavy components or raw materials.

Stock Room Replenishment

The 61-inch minimum turning radius and 3-wheel design allow the EK18AT-185Li to operate in tighter stock room aisles where larger forklifts cannot safely maneuver.

Truck Loading and Unloading

Travel speed of 10 mph loaded keeps throughput high during repeated truck loading cycles, and the hydraulic service brake provides reliable deceleration control on dock plates and ramps.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Skidded equipment and machinery
• Bagged and bulk material on pallets
• Boxed and crated freight
• Racking and shelving system loads
• Concrete, asphalt, and compacted surfaces (solid pneumatic tires)
• Loading dock plates and dock levelers

Product Documents

• EKKO Lifts Line Card (PDF)

Technical Specifications

Frequently Asked Questions

Q: Is the lithium battery included with the forklift?
A: Yes. The 48V/202Ah lithium battery is included with the EK18AT-185Li at purchase.

Q: What charger voltage options are available?
A: The standard charger is 48V/100A on 3-phase 480V. Optional 220V and 110V configurations are also available for facilities without 480V power.

Q: Can the EK18AT-185Li be used with auxiliary hydraulic attachments?
A: Yes. The unit comes equipped with a pre-plumbed Shimadzu® 4-way valve, which provides a ready hydraulic circuit for auxiliary attachments without additional field plumbing.

Q: What is the maximum lift height and what is the free lift height?
A: Maximum lift height is 185 inches (15.4 feet). Free lift height is 43.7 inches, allowing the forks to raise without extending the mast — useful in low-clearance environments.

Q: What warranty does the EK18AT-185Li carry?
A: The unit is covered by a 3 Year Limited Warranty.
