Pneumatic LPG Forklift | 6,000 lb Capacity

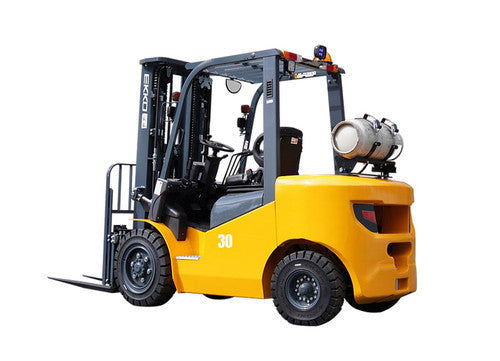

EKKO EK30LP Pneumatic LPG Forklift — 6,000 lb Capacity with Kubota Tier 4 Engine

The EKKO EK30LP is a 4-wheel pneumatic liquid propane (LPG) forklift rated for 6,000 lbs at a 24-inch load center, built for demanding material handling, warehousing, and distribution environments. Powered by a Kubota WG2503 engine producing 58.3 HP at 2,600 RPM, it delivers reliable outdoor and indoor performance where electric forklifts are impractical. The EK30LP is Tier 4 EPA compliant, making it suitable for operations subject to current emissions regulations. This unit is designed for contractors, warehouses, and distribution centers requiring a durable, high-capacity propane-powered lift solution.

Unlike lower-tier LPG forklifts, the EK30LP combines a heavy-duty integral chassis, an adjustable steering column, and a steer axle that pivots to 80 degrees for a tighter turning radius — a combination that reduces operator fatigue and improves maneuverability in confined work areas. Competitive pricing and Kubota engine reliability make it a practical alternative to diesel or electric units in mixed indoor/outdoor applications.

Key Features & Benefits

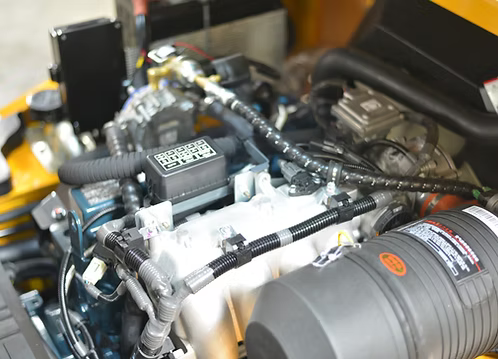

Kubota WG2503 Tier 4 EPA Compliant Engine

The Kubota WG2503 delivers 58.3 HP at 2,600 RPM on LPG fuel and meets current Tier 4 EPA emissions standards. For contractors operating on regulated job sites or in urban distribution environments, Tier 4 compliance ensures the machine can be used without emissions-related work stoppages.

Multifunction Instrument Panel

The integrated instrument panel provides monitoring functions to support safe and efficient operation. Operators can track key machine status at a glance, reducing the likelihood of missed maintenance intervals or unsafe operating conditions.

Adjustable Steering Column

The steering column adjusts to accommodate different operator sizes and positions, directly limiting arm and shoulder fatigue during extended shifts. For contractors running material handling operations over long workdays, this ergonomic feature supports productivity and reduces repetitive-strain risk.

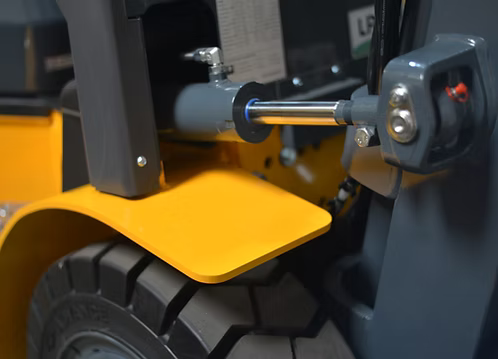

Integral Heavy-Duty Chassis with 80-Degree Steer Axle Pivot

The heavy-duty integral chassis provides structural protection for the operator while the steer axle pivots to 80 degrees, enabling a tighter turning radius than standard forklifts. This is particularly valuable in warehouses, staging areas, and job sites where aisle space is limited.

Pneumatic Tires — 28x9-15-12PR Front / 6.50-10-10PR Rear

Pneumatic tires provide the cushioning and traction needed for uneven outdoor surfaces, construction sites, and loading docks. The 12-ply front tires and 10-ply rear tires are sized to support the 6,000 lb rated load capacity across varied terrain conditions.

Ergonomic Operator Compartment

The operator compartment features a non-slip entrance step, wider access, and increased leg room. Excellent operator visibility is designed into the layout, reducing blind spots and supporting safe load placement during material handling tasks.

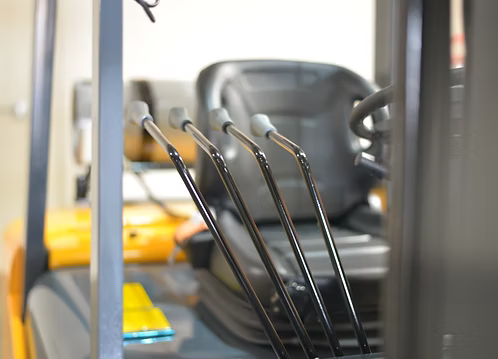

Hydraulic Controls with Floor Pedal Service Brake

Hydraulic controls govern lift and tilt functions, while a hydraulic floor pedal provides the service brake. This system gives operators precise, responsive control over both machine movement and load positioning.

Common Applications

Warehouse Material Handling

The EK30LP is purpose-built for warehouse environments requiring a high-capacity propane-powered lift. The 189-inch lift height and 6,000 lb capacity allow operators to stack and retrieve loads at elevated racking positions.

Distribution Center Operations

LPG forklifts are well-suited to distribution centers with dock access and mixed indoor/outdoor movement. The EK30LP's 11.8 mph travel speed (loaded and unloaded) supports efficient throughput in high-cycle distribution workflows.

Construction Site Material Staging

Pneumatic tires and a heavy-duty chassis make the EK30LP capable of operating on the uneven surfaces common on active construction sites. It can move and position heavy building materials, palletized supplies, and equipment across job site terrain.

Loading Dock and Freight Handling

The 150.3-inch overall length with forks, 48.2-inch overall width, and 4.53-inch minimum ground clearance at the mast allow the EK30LP to navigate standard loading dock approaches and freight staging areas.

Outdoor Yard and Lumber Handling

The pneumatic tire configuration is designed for outdoor yard use where cushion-tire forklifts would be unsuitable. Material suppliers and contractors handling lumber, pipe, or bulk palletized goods in open yards benefit from this tire specification.

Compatible Materials

• Palletized construction materials (block, brick, bagged goods)
• Lumber and sheet goods
• Pipe and structural steel (with appropriate rigging)
• Bulk freight on standard 48-inch pallets
• Packaged equipment and machinery
• Bagged aggregates and landscape materials

Technical Specifications

Frequently Asked Questions

Q: Is the EK30LP compliant with current EPA emissions standards?
A: Yes. The EK30LP is Tier 4 EPA compliant through its Kubota WG2503 engine, meeting current federal emissions requirements for LPG-powered industrial equipment.

Q: What tire type does the EK30LP use, and is it suitable for outdoor use?
A: The EK30LP is equipped with pneumatic tires — 28x9-15-12PR on the front and 6.50-10-10PR on the rear. Pneumatic tires are designed for outdoor and uneven surface applications, making this unit suitable for job sites, yards, and loading docks in addition to warehouse floors.

Q: What is the maximum lift height of the EK30LP?
A: The EK30LP has a maximum lift height of 189 inches, with a free lifting height of 40.9 inches and a mast overall height of 89.40 inches.

Q: What engine powers the EK30LP and what is its rated output?
A: The EK30LP is powered by a Kubota WG2503 engine rated at 58.3 HP at 2,600 RPM running on LPG fuel.

Q: What is the travel speed of the EK30LP when loaded?
A: The EK30LP reaches a maximum traveling speed of 11.8 mph both loaded and unloaded.
