Stand-Up Rider Forklift - Cushion Tire · 189" Lift

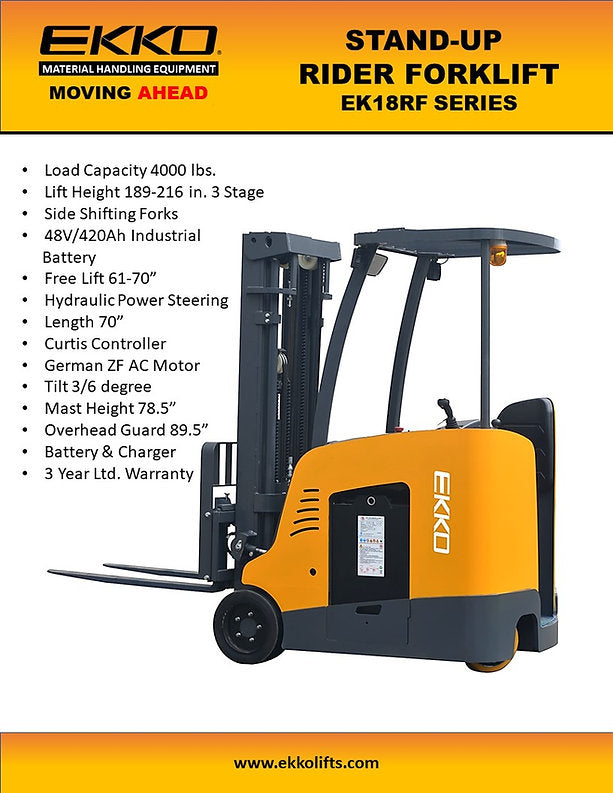

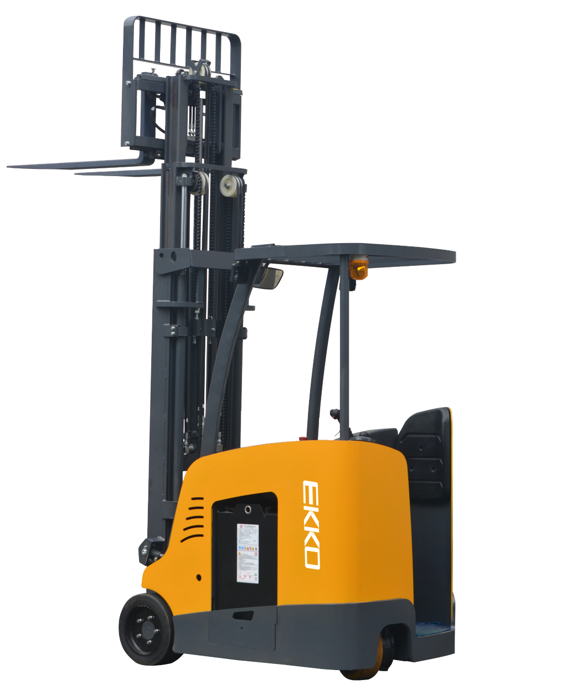

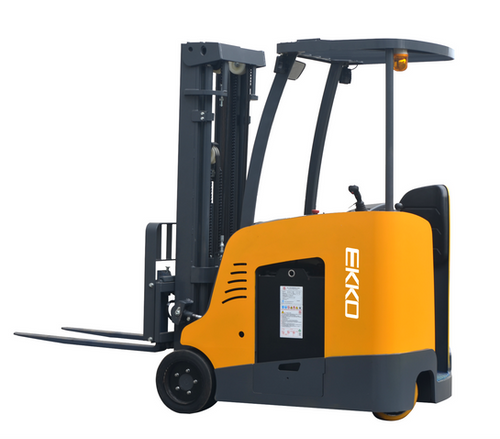

EKKO EK18RFL Stand-Up Rider Forklift — 4,000 lb Electric Workhorse for Demanding Material Handling

The EKKO EK18RFL is a 48V electric stand-up rider forklift rated for 4,000 lb loads at a 24-inch load center, with a lift height of 188.98 inches (approximately 189 in / 15.75 ft). Built for contractors and trades professionals operating in warehousing, manufacturing floors, loading docks, stock rooms, and distribution environments, it delivers the reach and capacity needed to handle heavy palletized loads in high-bay racking applications. The included 48V/420 Ah industrial battery and 48V/65A 480V charger mean this unit ships ready to put to work with no additional charging infrastructure purchases required.

Where comparable counterbalanced forklifts demand wider aisles, the EK18RFL's 10.5 ft aisle width requirement and 58.5-inch minimum turning radius allow it to operate in tighter spaces without sacrificing load capacity. The combination of an AC German drive motor, Curtis Instrument Controller, hydraulic steering, and side-shifting forks gives operators precise control across variable terrain and application types that would stress lesser machines.

Key Features & Benefits

German AC Drive Motor with Curtis Instrument Controller

The 6 kW (60-min rated) AC drive motor paired with the Curtis Instrument Controller delivers consistent travel speeds of 12 km/h laden and 13 km/h unladen, maintaining performance across the full battery discharge range. AC drive systems are inherently more efficient and lower-maintenance than DC alternatives, reducing downtime for contractors running multi-shift operations.

Side-Shifting Forks with Adjustable Fork Width

The integrated side-shifting fork carriage allows operators to align loads precisely without repositioning the entire truck, accelerating cycle times on loading docks and in racking aisles. Fork width is adjustable from 9.4 to 35.6 inches, accommodating a wide range of pallet sizes and load configurations without manual fork repositioning tools.

188.98-Inch Lift Height with Free Lift Mast

A maximum lift height of nearly 189 inches (15.75 ft) enables high-bay racking utilization in warehouse and manufacturing environments. The 52.17-inch free lift height allows the forks to rise before the mast extends, which is critical for operation inside trailers and in facilities with overhead clearance restrictions.

48V/420 Ah Industrial Battery — Included

The heavy-duty 48V/420 Ah battery (1,570 lb) is included with the unit along with the 48V/65A 480V charger, eliminating the common added cost of sourcing compatible charging infrastructure separately. This industrial-capacity battery is sized to support extended shift operation under full load conditions.

Hydraulic Steering and Service Brake

Hydraulic power steering reduces operator fatigue during repetitive maneuvers in tight aisle configurations, and the hydraulic service brake delivers reliable, consistent stopping performance. These systems are designed to handle the demands of high-cycle dock and warehouse operations.

Heavy-Duty Steel Construction with Robotic Welding

The chassis and mast are fabricated from high-quality steel using robotic welding processes, producing consistent, high-strength weld joints throughout the structure. This build quality supports durability under continuous use, directional changes, and the impact loads inherent to active loading dock and warehouse environments.

Common Applications

Loading Dock Operations

The EK18RFL's 4,000 lb capacity and 10.5 ft aisle requirement make it well-suited for loading and unloading trucks at busy dock doors where turnaround speed matters. The side-shifting forks allow precise pallet placement without truck repositioning.

High-Bay Warehouse Racking

With a lift height of nearly 189 inches and a three-stage mast, this unit can service upper rack levels in standard warehouse bay configurations. The free lift feature allows initial fork elevation without mast extension, protecting overhead door frames during entry and exit.

Manufacturing Floor Material Handling

The compact footprint — 117.78 inches overall length, 42.52 inches overall width — allows the EK18RFL to navigate manufacturing floor aisles and work cell approaches where larger counterbalanced forklifts cannot operate efficiently.

Stock Room and Distribution Center Use

Electric operation produces zero emissions at the point of use, making this unit appropriate for enclosed stock room and distribution center environments where propane or diesel forklifts would require additional ventilation. The ≤70 dB(A) noise rating at the operator's ear keeps noise levels manageable in occupied facilities.

Truck Loading and Trailer Spotting

The 52.17-inch free lift height enables fork elevation inside trailer openings before the mast extends, preventing contact with trailer door headers during load pickup and placement operations.

Compatible Materials

• Standard wood pallets (GMA, Euro, and custom widths within 9.4–35.6 in fork spread)
• Plastic pallets and slip-sheet loads
• Skidded equipment and machinery
• Bagged, boxed, and crated goods on pallets
• Steel coils and pipe (with appropriate attachments)
• Construction materials on pallets (block, brick, lumber, drywall bundles)

Technical Specifications

Frequently Asked Questions

Q: Does the battery and charger come included with the EK18RFL?
A: Yes. The 48V/420 Ah industrial battery and the 48V/65A 480V charger are both included with the unit.

Q: What is the minimum aisle width required to operate the EK18RFL?
A: The EK18RFL requires a minimum aisle width of 10.5 ft for operation.

Q: Can this forklift be used indoors in enclosed facilities?
A: Yes. As a 48V electric unit, it produces zero exhaust emissions at the point of use and operates at ≤70 dB(A) at the operator's ear, making it suitable for enclosed warehouses, stock rooms, and manufacturing floors.

Q: What is the maximum lift height of the EK18RFL?
A: The maximum lift height is 188.98 inches (approximately 189 inches / 15.75 ft), with a free lift height of 52.17 inches before the mast begins to extend.

Q: Are the forks adjustable in width?
A: Yes. Fork width is adjustable from 9.4 to 35.6 inches, and the carriage includes side-shifting capability for precise load placement without repositioning the truck.

Q: What warranty does the EK18RFL carry?
A: The EK18RFL is covered by a 3-Year Limited Warranty.
