4-Wheel Electric Sit-Down Forklift - 5,000 lb Capacity with 212" Lift Height

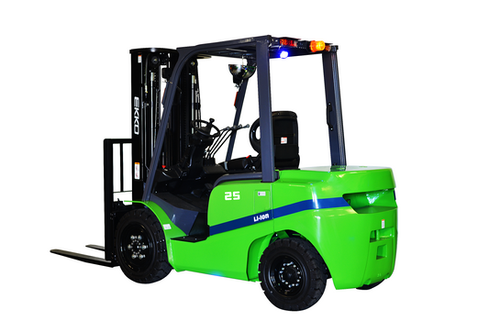

EK25GT-Li & EK25GT-212LI 4-Wheel Electric Sit-Down Forklift — 5,000 lb Capacity with 80V Lithium Power

The EK25GT-Li and EK25GT-212LI are heavy-duty 4-wheel electric sit-down forklifts engineered for demanding material handling environments. With a 5,000 lb load capacity and lift heights of 185 inches (EK25GT-Li) or 212 inches (EK25GT-212LI), these machines are built to perform in loading docks, warehouses, manufacturing floors, stock rooms, and truck loading and unloading applications. Powered by an 80V / 205Ah lithium battery and controlled by an InMotion® controller, they deliver consistent, dependable operation across extended shifts.

Unlike conventional lead-acid electric forklifts, the EK25GT-Li and EK25GT-212LI utilize lithium battery technology paired with solid pneumatic tires, making them capable across diverse indoor and outdoor terrains. Steel construction with robotic welding, a Shimadzu® 4-way valve, and Cascade® side shift set these units apart from commodity alternatives in both build quality and component specification.

Key Features & Benefits

80V / 205Ah Lithium Battery System

The lithium battery platform provides stable power delivery throughout the discharge cycle, reducing performance drop-off during long shifts. The 3-phase 480V charger is included, with optional 220V and 110V configurations available to suit different facility electrical setups.

InMotion® Controller

The InMotion® controller manages drive and lift functions to optimize responsiveness and energy efficiency. For contractors running tight production schedules, precise motor control translates directly to faster, more predictable cycle times.

Cascade® Side Shift

Cascade® is a recognized name in forklift attachments, and the factory-integrated side shift allows operators to fine-tune load positioning without repositioning the entire machine. This reduces handling time and minimizes rack and dock damage on the job site.

Shimadzu® 4-Way Valve

The Shimadzu® 4-way hydraulic valve delivers smooth, controlled mast and attachment operation. Reliable hydraulic response is critical when working with heavy loads at height, and a name-brand valve reduces the risk of inconsistent or jerky mast movement.

Steel Construction with Robotic Welding

The chassis is fabricated from high-quality steel using robotic welding processes, producing consistent weld quality throughout the frame. This construction approach is designed to withstand heavy usage, impacts, and repeated directional changes in high-cycle environments.

Solid Pneumatic Tires

Solid pneumatic tires eliminate the risk of flats while providing cushioning comparable to air-filled tires. This makes the EK25GT series suitable for both smooth warehouse floors and rougher surfaces found at construction sites and loading areas.

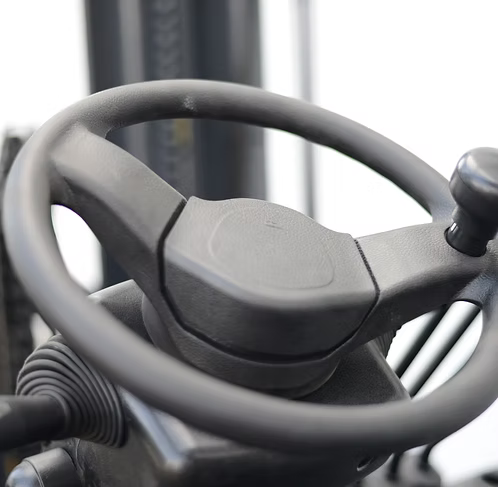

Ergonomic Operator Environment

The seated driving mode and ergonomic handle and controls reduce operator fatigue during extended use. A hydraulic foot pedal service brake provides confident stopping control under laden and unladen conditions.

Common Applications

Loading Dock Operations

The 5,000 lb capacity and 141-inch total length with forks make this unit well suited for loading and unloading trucks at commercial loading docks. The 9.3 mph travel speed (laden and unladen) supports efficient turnaround times.

Warehouse Storage and Retrieval

With lift heights up to 212 inches and a free lift of 43.7 inches, the EK25GT series reaches upper racking levels common in high-bay warehouse environments. The Cascade® side shift allows precise pallet placement in tight rack bays.

Manufacturing Floor Material Handling

The forklift's robust steel construction and consistent electric drive performance make it appropriate for repetitive material movement on manufacturing and production floors. The lithium battery system supports multi-shift use without the downtime associated with battery swaps common to lead-acid units.

Stock Room Operations

An 88.9-inch minimum outside turning radius and 45.2-inch overall width allow the EK25GT to navigate stock room aisles while maintaining the capacity needed to handle full pallet loads.

Construction Supply Yards and Staging Areas

Solid pneumatic tires and a ground clearance of 4.3 inches at the mast allow operation on the less-than-perfect surfaces common at construction supply yards and staging areas. The 6° forward and 6° backward mast tilt supports safe load handling on uneven terrain.

Compatible Materials

• Palletized construction materials (lumber, block, tile, stone)
• Bagged goods (cement, mortar, aggregate)
• Bundled materials (pipe, rebar, conduit on pallets)
• Boxed and crated equipment
• Steel coils and heavy fabricated components (within 5,000 lb capacity)
• Standard GMA and custom pallets up to 5,000 lbs at 24-inch load center

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the EK25GT-Li and the EK25GT-212LI?
A: The two models are identical in all published specifications except lift height. The EK25GT-Li reaches 185 inches, while the EK25GT-212LI reaches 212 inches. Select the model based on the maximum racking or stacking height required at your facility.

Q: What charger voltage options are available?
A: The standard charger is 3-phase 480V. Optional 220V and 110V chargers are also available, allowing the forklift to be charged at facilities without 480V three-phase service.

Q: Can this forklift be used outdoors or on uneven surfaces?
A: Yes. The solid pneumatic tires and 4.3-inch ground clearance at the mast make the EK25GT series suitable for use on the rougher surfaces commonly found at construction sites, supply yards, and loading areas, in addition to standard warehouse and manufacturing floors.

Q: What warranty is included?
A: The EK25GT-Li and EK25GT-212LI are covered by a 3-Year Limited Warranty.
