Diesel Forklift with Solid Pneumatic Tires - 5,000 lb Capacity

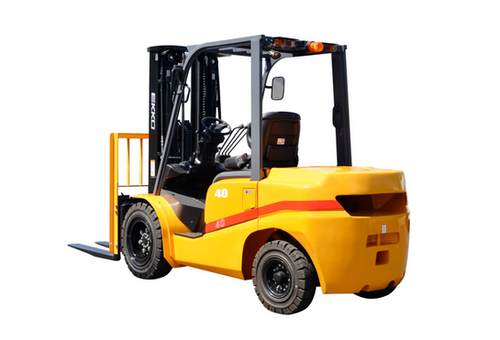

EKKO Diesel Forklift — Tier 4 Compliant Heavy-Duty Material Handling for Demanding Job Sites

The EKKO Diesel Forklift series is engineered for contractors and trades professionals who require reliable, high-capacity material handling across warehousing, distribution, and construction environments. Available in five models — EK20D, EK25D, EK30D, EK35D, and EK40D — the lineup covers load capacities from 4,000 to 8,500 lbs, making it scalable to your operational demands. Powered by a Mitsubishi 4EG engine rated at 49 HP @ 2,250 RPM and fully EPA Tier 4 compliant, this forklift is built to meet current emissions requirements without sacrificing performance. Solid pneumatic tires ensure durability across rough or uneven surfaces common to active job sites.

Unlike entry-level diesel forklifts, the EKKO series comes standard with a Cascade® Side Shift attachment and a Shimadzu® 4-Way Valve that is pre-plumbed from the factory, reducing the need for costly aftermarket hydraulic modifications. The operator environment has been deliberately designed for comfort and control, featuring an enlarged operation space, a heightened and arc-shaped overhead guard, and a multifunctional suspended seat that minimizes vibration and supports the driver throughout long shifts.

Key Features & Benefits

Mitsubishi 4EG Engine — EPA Tier 4 Compliant

The Mitsubishi 4EG engine delivers 49 HP at 2,250 RPM, providing the power needed to handle loads up to 8,500 lbs depending on model. Tier 4 EPA compliance means this machine meets current emissions standards, keeping your operation in regulatory good standing on job sites that enforce air quality requirements.

Cascade® Side Shift — Standard Equipment

The Cascade® Side Shift is included as standard, allowing operators to laterally reposition forks without moving the entire machine. This improves load placement accuracy and reduces cycle times, especially in tight staging areas or when aligning to pallets in racking systems.

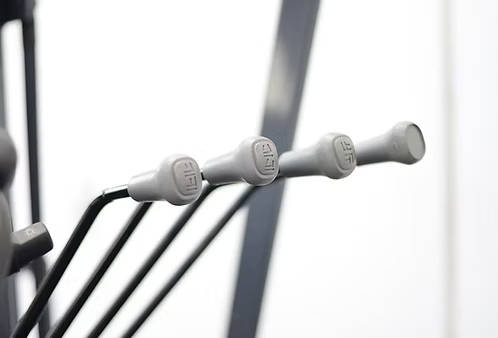

Shimadzu® 4-Way Valve — Pre-Plumbed from Factory

The Shimadzu® 4-Way Valve arrives pre-plumbed, meaning auxiliary hydraulic attachments can be connected without additional field hydraulic work. This saves setup time and labor costs when deploying specialized attachments on the job site.

Solid Pneumatic Tires — Durable, Puncture-Free Performance

The 7.00-12-12PR front and 6.00-9-10PR rear solid pneumatic tires provide the cushioning of a pneumatic profile without the risk of flats. This is particularly valuable on job sites with debris, rough concrete, or uneven ground where downtime from a flat tire is not acceptable.

Enhanced Operator Environment

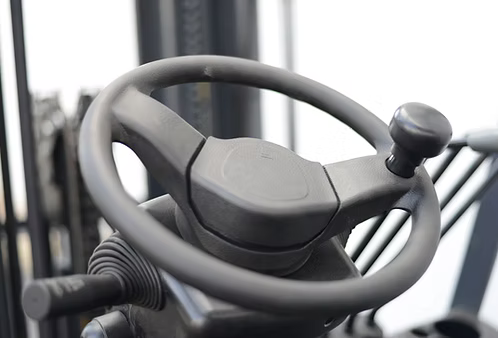

The operation space has been enlarged with a heightened overhead guard featuring a large arc-shaped front leg, improving sightlines and reducing operator fatigue. The multifunctional suspended seat reduces vibration and balances driver weight, while the adjustable steering wheel mechanism is positioned for ergonomic reach, supporting operator productivity over extended shifts.

Impedance Composite Muffler — Reduced Noise Output

The impedance-composited muffler reduces the sound level produced by the diesel engine, making this forklift more suitable for noise-sensitive environments such as indoor warehouses or job sites with occupational noise restrictions.

High Lift Height with Free Lift Capability

A maximum lift height of 185 inches and a free lifting height of 43.7 inches allow operators to raise loads in low-clearance environments before the mast begins to extend, which is critical when working inside trailers or under low overhead obstructions. The mast overall height of 83 inches keeps the profile manageable during travel.

Common Applications

Warehousing and Distribution Centers

With load capacities up to 8,500 lbs and a lift height of 185 inches, the EKKO diesel forklift is well-suited for loading, unloading, and racking operations in warehouse environments where throughput and lift height are critical.

Construction Site Material Handling

Solid pneumatic tires and a minimum ground clearance of 4.3 inches at the mast allow this forklift to navigate rough or debris-covered construction surfaces while transporting heavy building materials.

Loading Dock and Trailer Loading

The free lifting height of 43.7 inches allows loads to be raised inside enclosed trailers without extending the mast, making dock-level loading and unloading more efficient.

Staging and Placement of Heavy Palletized Loads

The standard Cascade® Side Shift enables precise lateral load placement without repositioning the machine, reducing cycle times when staging palletized materials for downstream trades.

Auxiliary Attachment Operations

The factory pre-plumbed Shimadzu® 4-Way Valve enables quick connection of auxiliary hydraulic attachments, expanding the machine's utility for specialized material handling tasks beyond standard fork operations.

Compatible Materials

• Palletized construction materials (lumber, block, steel, pipe)
• Bagged or boxed goods on standard pallets
• Bulk material containers and bins
• Racking and shelving system loads up to rated capacity per model
• Heavy equipment components and precast elements within rated load limits

Technical Specifications

Frequently Asked Questions

Q: What load capacities are available across the EK diesel forklift series?
A: The EKKO diesel forklift series spans five models with load capacities of 4,000 lbs (EK20D), 5,000 lbs (EK25D), 6,000 lbs (EK30D), 7,000 lbs (EK35D), and 8,500 lbs (EK40D).

Q: Is the 4-Way Valve included from the factory or does it need to be added separately?
A: The Shimadzu® 4-Way Valve is pre-plumbed from the factory, so no additional hydraulic installation is required to use auxiliary attachments.

Q: Is the side shift standard or optional?
A: The Cascade® Side Shift is included as standard equipment on the EKKO diesel forklift.

Q: Does this forklift meet current EPA emissions requirements?
A: Yes. The Mitsubishi 4EG engine is EPA Tier 4 compliant.

Q: Are solid pneumatic tires suitable for rough outdoor surfaces?
A: Solid pneumatic tires provide a pneumatic-profile ride quality while eliminating the risk of punctures, making them appropriate for rough, debris-strewn, or uneven surfaces typical of active construction and distribution environments.
