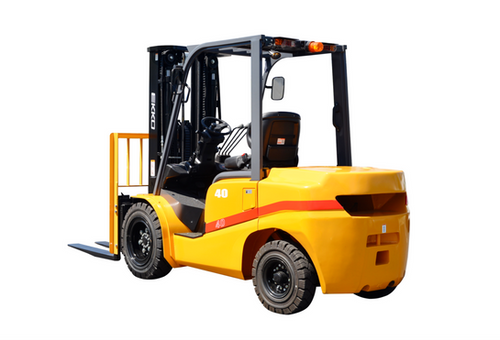

Diesel Forklift with Solid Pneumatic Tires - 6,000 lb Capacity

EKKO Diesel Forklift — Tier 4 Compliant Heavy-Duty Material Handling for Contractors

The EKKO Diesel Forklift is a purpose-built counterbalanced lift truck designed for demanding material handling, warehousing, and distribution applications. Available in five models — EK20D, EK25D, EK30D, EK35D, and EK40D — it covers load capacities from 4,000 to 8,500 lbs, making it suitable for a wide range of jobsite and facility requirements. Powered by a Mitsubishi 4EG engine producing 49 HP at 2,250 RPM, this unit delivers consistent performance across loaded and unloaded cycles. The forklift is EPA Tier 4 compliant, meeting current emissions standards for diesel-powered equipment.

Unlike comparable diesel forklifts, the EKKO lineup combines a Cascade® Side Shift and a Shimadzu® 4-Way Valve (pre-plumbed) as standard equipment, providing immediate attachment versatility without additional hydraulic setup. Solid pneumatic tires offer the puncture resistance of a solid tire with the ground clearance and shock absorption profile suited to outdoor and rough-surface environments, while competitive pricing positions this unit as a practical alternative for contractors managing equipment budgets.

Key Features & Benefits

Mitsubishi 4EG Engine — Tier 4 Compliant

The Mitsubishi 4EG engine delivers 49 HP at 2,250 RPM, providing the power needed for sustained heavy-lift cycles in warehouse and distribution environments. EPA Tier 4 compliance means contractors can operate this unit on regulated jobsites without emissions concerns. An impedance composite muffler is incorporated to reduce sound output, lowering operator fatigue during extended shifts.

Solid Pneumatic Tires

Solid pneumatic tires eliminate the risk of puncture-related downtime that affects air-filled tire units on debris-heavy job sites. The 7.00-12-12PR front and 6.00-9-10PR rear wheel configuration provides ground clearance of 4.3 in at the mast, allowing operation on uneven or transitional surfaces. This tire type is particularly well-suited for contractors moving between indoor warehouse floors and outdoor staging areas.

Cascade® Side Shift (Standard)

The Cascade® Side Shift is included as standard equipment, allowing operators to laterally adjust forks without repositioning the entire truck. This improves precision when aligning loads on racking or staging areas, reducing cycle times and operator effort. Cascade is a recognized name in forklift attachment components, and its inclusion as standard adds immediate operational value.

Shimadzu® 4-Way Valve — Pre-Plumbed

The Shimadzu® 4-Way Valve comes pre-plumbed from the factory, meaning the hydraulic circuit is ready for auxiliary attachment connection without additional field modification. This reduces setup time when deploying specialized attachments on the job. Shimadzu is a known hydraulic component manufacturer, providing a recognized quality benchmark for the valve assembly.

Enlarged Operator Compartment with Multifunctional Suspended Seat

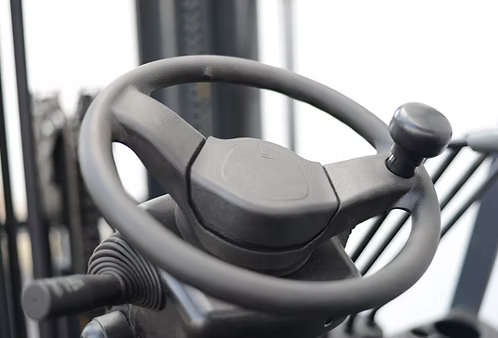

The operator space is enlarged and the overhead guard is heightened, with a large arc-shaped front leg design that improves forward visibility. The multifunctional suspended seat is engineered to increase driver support, reduce vibration transfer, and balance the driver's weight during operation. The steering wheel adjusting mechanism is positioned for easy reach and adjustment, reducing operator fatigue on long shifts.

185-Inch Lift Height with 43.7-Inch Free Lift

With a maximum lift height of 185 inches and a free lift height of 43.7 inches, this forklift can handle multi-level racking without raising the mast beyond the free-lift zone in height-restricted spaces. The overall height with forks lifted reaches 225 inches, and the mast overall height is 83 inches, providing a compact mast profile when traveling. Traveling speeds of 10.6 mph loaded and 11.8 mph unloaded support efficient movement across large warehouse or yard footprints.

Common Applications

Warehouse Material Handling

The EKKO diesel forklift is designed specifically for warehousing and distribution environments, handling palletized loads up to 8,500 lbs depending on model. The 185-inch lift height supports multi-level racking operations in standard warehouse facilities.

Construction Site Staging

Solid pneumatic tires and 4.3-inch ground clearance at the mast make this unit capable of operating on the uneven, debris-laden surfaces common to active construction sites. Load capacities up to 8,500 lbs (EK40D) allow movement of heavy structural materials, block, and bundled lumber.

Distribution and Loading Dock Operations

The pre-plumbed Shimadzu® 4-Way Valve and Cascade® Side Shift allow efficient load placement and retrieval at loading docks without truck repositioning. Traveling speeds up to 11.8 mph unloaded support fast turn-around between staging areas and dock doors.

Outdoor Yard and Laydown Area Operations

The diesel drive system and solid pneumatic tires make this forklift suitable for outdoor yard operations where electric forklifts face range or surface limitations. The Tier 4 engine ensures regulatory compliance even in areas with air quality restrictions.

Compatible Materials

• Palletized construction materials (block, brick, bagged goods)
• Bundled lumber and engineered wood products
• Steel and structural materials on standard pallets or dunnage
• Bagged aggregate and concrete products
• Racked warehouse inventory (multi-level)
• Containerized and boxed goods at loading docks

Technical Specifications

Frequently Asked Questions

Q: What load capacities are available across the EKKO diesel forklift model range?
A: The five available models cover load capacities of 4,000 lbs (EK20D), 5,000 lbs (EK25D), 6,000 lbs (EK30D), 7,000 lbs (EK35D), and 8,500 lbs (EK40D), all at a 24-inch load center.

Q: Is the 4-Way Valve included or does it require additional installation?
A: The Shimadzu® 4-Way Valve comes pre-plumbed from the factory, so the hydraulic circuit is ready for auxiliary attachment use without additional field hydraulic work.

Q: Why are solid pneumatic tires used instead of cushion or air-pneumatic tires?
A: Solid pneumatic tires eliminate puncture risk on debris-heavy surfaces while still providing the ground clearance profile suitable for both indoor and outdoor operation, making them appropriate for construction sites and mixed-surface environments.

Q: Is this forklift EPA compliant for regulated jobsites?
A: Yes. The Mitsubishi 4EG engine is EPA Tier 4 compliant, meeting current diesel emissions requirements for construction and industrial equipment operation.
