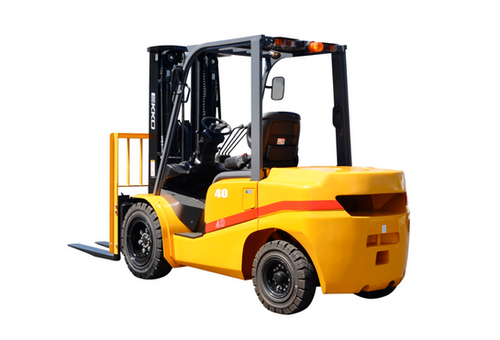

Diesel Forklift with Solid Pneumatic Tires - 8,500 lb Capacity

EKKO EK40D Diesel Forklift – 8,500 lb Capacity with Tier 4 EPA Compliant Mitsubishi Engine

The EKKO EK40D is a heavy-duty diesel-powered counterbalanced forklift engineered for demanding material handling, warehousing, and distribution operations. With an 8,500 lb load capacity, a 185-inch lift height, and solid pneumatic tires, this unit is built to perform reliably across rough or uneven surfaces in both indoor and outdoor environments. It is ideally suited for contractors, fleet operators, and trades professionals who require a dependable, high-capacity lift truck for frequent, intensive use cycles.

The EK40D is powered by a Mitsubishi 4EG engine rated at 49 HP and is fully Tier 4 EPA compliant, distinguishing it from non-compliant alternatives that may face operational restrictions on regulated job sites. Factory pre-plumbed with a Shimadzu® 4-Way Valve and equipped with a Cascade® Side Shift, this forklift arrives ready for immediate productivity without costly aftermarket modifications.

Key Features & Benefits

Mitsubishi 4EG Engine – Tier 4 EPA Compliant

The Mitsubishi 4EG engine delivers 49 HP at 2,250 RPM, providing the power needed to handle heavy loads and sustained lift cycles. Tier 4 EPA compliance means this forklift meets current federal emissions standards, making it suitable for use on regulated commercial and government job sites without risk of compliance issues.

Cascade® Side Shift

The factory-installed Cascade® Side Shift allows operators to laterally reposition loads without repositioning the entire forklift, improving precision and reducing cycle times. This is a significant advantage in tight warehouse aisles or when aligning loads to racking or staging areas.

Shimadzu® 4-Way Valve (Pre-Plumbed)

The Shimadzu® 4-Way Valve comes pre-plumbed from the factory, enabling immediate attachment compatibility without additional hydraulic setup. This reduces downtime and third-party installation costs for contractors who require multi-directional hydraulic functionality.

Solid Pneumatic Tires

Solid pneumatic tires eliminate the risk of flats and punctures that can sideline a lift truck on job sites with debris, metal scraps, or rough terrain. The 7.00-12-12PR front and 6.00-9-10PR rear tire configuration provides the traction profile needed for loaded travel across uneven surfaces.

Enlarged Operator Compartment with Multifunctional Suspended Seat

The operator space features a heightened overhead guard with a large arc-shaped front leg for improved visibility and ingress. The multifunctional suspended seat reduces vibration transmitted to the operator, balances driver weight, and increases support during extended shift operation.

Impedance Composited Muffler

This forklift uses an impedance composited muffler system that reduces overall sound output levels during operation. Lower noise levels are beneficial on job sites with noise ordinances or in facilities where operator communication and awareness are critical.

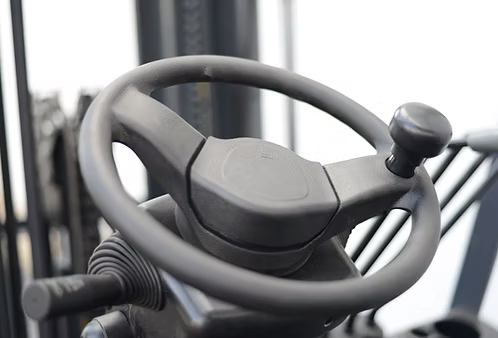

Adjustable Steering Wheel Mechanism

The steering wheel adjustment mechanism is positioned for easy reach and quick repositioning, allowing operators of varying sizes to set a comfortable driving position. This reduces operator fatigue and contributes to more precise control during loaded travel.

Common Applications

Heavy Material Handling on Job Sites

With an 8,500 lb load capacity and solid pneumatic tires, the EK40D is suited for moving heavy construction materials such as palletized masonry, steel, lumber, and precast components across active job sites.

Warehouse and Distribution Operations

The 185-inch lift height and Cascade® Side Shift make this forklift effective for stacking and retrieving loads in warehouse racking systems and distribution center environments.

Loading and Unloading Trucks

The EK40D's traveling speed of up to 11.8 mph (unloaded) and 10.6 mph (loaded) supports efficient dock-side loading and unloading operations, reducing turnaround time for delivery vehicles.

Outdoor Yard and Staging Areas

Solid pneumatic tires and a 4.3-inch minimum ground clearance at the mast allow this unit to operate over uneven outdoor terrain, gravel yards, and construction staging areas where wheeled equipment encounters irregular surfaces.

Compatible Materials

• Palletized construction materials (masonry block, brick, stone)
• Steel beams and structural components
• Lumber and engineered wood products
• Bagged goods and bulk material pallets
• Precast concrete panels and elements
• Warehouse racking inventory
• Equipment and machinery on pallets or skids

Technical Specifications

Frequently Asked Questions

Q: Is the EK40D compliant with current EPA emissions requirements?
A: Yes. The EK40D is Tier 4 EPA compliant, meeting current federal diesel emissions standards for off-road equipment.

Q: Does the forklift come with a side shift attachment installed?
A: Yes. The EK40D includes a factory-installed Cascade® Side Shift and a pre-plumbed Shimadzu® 4-Way Valve, so no additional hydraulic setup is required upon delivery.

Q: Can the EK40D be used on outdoor or uneven surfaces?
A: The solid pneumatic tires and 4.3-inch minimum ground clearance at the mast make this unit capable of operating on outdoor yards, gravel, and other uneven surfaces common on construction sites.

Q: What is the maximum lift height of the EK40D?
A: The EK40D has a maximum lift height of 185 inches, with an overall height of 225 inches when forks are fully raised and a free lifting height of 43.7 inches.
