Liquid Propane 4-Wheel Forklift | 7,000 lb Capacity

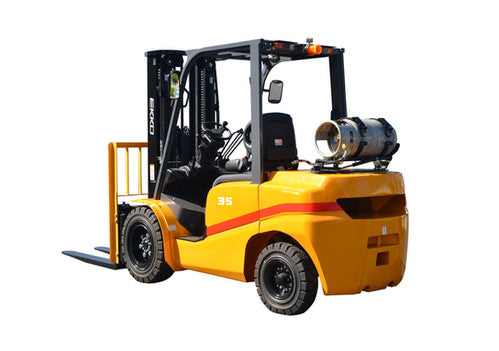

EKKO EK35TLP Liquid Propane 4-Wheel Forklift — 7,000 lb Capacity with Tier 4 EPA / CARB 4 Compliance

The EKKO EK35TLP is a liquid propane (LPG) 4-wheel counterbalanced forklift built for demanding material handling, warehousing, and distribution operations. Powered by a Kubota or PSI 2.4L engine rated at 63 HP @ 2,700 RPM, it delivers a 7,000 lb load capacity with a lift height of 185 inches, making it a capable choice for contractors and trades professionals who move heavy loads at height on a daily basis. The solid pneumatic tire configuration and hydraulic floor pedal service brake provide the stability and control required on active job sites and loading docks.

Compared to electric alternatives, the EK35TLP offers the operational flexibility of LPG fuel with full Tier 4 EPA and CARB 4 emissions compliance, allowing use in regions with strict air quality regulations. Factory-installed Cascade® Side Shift and a Shimadzu® 4-Way Pre-Plumbed Hydraulic Valve add attachment-ready versatility that electric-only platforms in this class often require as costly add-ons.

Key Features & Benefits

Tier 4 EPA / CARB 4 Compliant Engine

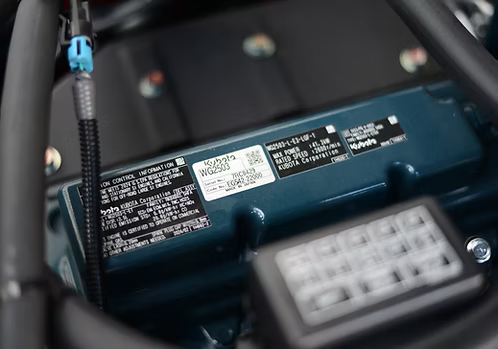

The Kubota or PSI 2.4L engine meets Tier 4 EPA and CARB 4 emissions standards, enabling operation in California and other states with stringent emissions requirements. At 63 HP @ 2,700 RPM, the engine provides the power needed to maintain productivity across full-shift material handling cycles.

Cascade® Side Shift (Standard)

The factory-installed Cascade® Side Shift allows operators to laterally reposition the forks without repositioning the entire truck, improving pallet placement accuracy in tight rack aisles and loading bays. Including this as a standard feature reduces the need for aftermarket hydraulic retrofits.

Shimadzu® 4-Way Valve — Pre-Plumbed

The pre-plumbed Shimadzu® 4-Way Hydraulic Valve means the truck is attachment-ready from the factory, reducing downtime and installation costs when adding hydraulic attachments. This is a meaningful advantage on job sites where operational flexibility is required without delay.

Enhanced Operator Comfort and Visibility

The enlarged operation space features a heightened overhead guard with a large arc-shaped front leg for improved sightlines. The semi-suspension seat, small steering wheel, electro-hydraulic direction changing, and automobile-type double combined switch are designed to reduce operator fatigue during extended shifts.

Vibration and Shock Damping System

Cushion connection and whole-suspension cab design absorb truck vibrations effectively, while a lowering damping device inside the lifting system reduces mast shock and vibration and minimizes noise from load descent. These features contribute to a smoother ride and longer component service life.

Optimized Hydraulic System for Fuel Efficiency

The optimized hydraulic system is engineered to be more energy-efficient with lower fuel consumption compared to less refined LPG forklift hydraulics. For contractors operating across multi-shift schedules, reduced fuel draw directly lowers operating costs.

Solid Pneumatic Tires with Small Turning Radius

Solid pneumatic tires (28x9-15-12PR front / 6.50-10-10PR rear) provide puncture resistance and durability on rough or debris-strewn surfaces typical of construction and distribution environments. The small turning radius makes the truck flexible and maneuverable in confined areas.

Common Applications

Warehousing and Distribution

The EK35TLP is purpose-built for warehousing and distribution operations, with a 185-inch lift height and 7,000 lb capacity suited to moving palletized goods through racking systems and onto trailers.

Loading Dock and Trailer Loading

The traveling speed of 11 mph loaded / 12.1 mph unloaded and a compact overall width of 50.5 inches make this forklift efficient for loading dock cycles where fast turnaround between truck and storage is required.

Construction Site Material Handling

Solid pneumatic tires and 4.7-inch minimum ground clearance at the mast allow the EK35TLP to operate on uneven or rough job site surfaces where cushion-tire forklifts would be unsuitable.

High-Bay Storage Operations

With an overall height of 234 inches with forks lifted and a free lifting height of 37.9 inches, the EK35TLP can service high-bay racking environments while maintaining low-profile maneuverability under overhead obstructions during travel.

Outdoor and Mixed Indoor/Outdoor Use

LPG power and solid pneumatic tires make this unit well-suited for operations that transition between indoor facilities and outdoor yards, where battery range or tire vulnerability would limit productivity.

Compatible Materials

• Palletized construction materials (lumber, concrete block, bagged materials)
• Bulk material in crates or containers
• Steel and pipe with appropriate attachments (pre-plumbed 4-way valve)
• Warehouse racking and shelving loads up to 7,000 lbs
• Drum and barrel loads with compatible hydraulic attachments
• General freight and palletized distribution goods

Technical Specifications

Frequently Asked Questions

Q: Is the EK35TLP compliant for use in California?
A: Yes. The EK35TLP meets both Tier 4 EPA and CARB 4 emissions regulations, making it compliant for operation in California and other states that follow CARB standards.

Q: Does this forklift come with side shift as standard?
A: Yes. The Cascade® Side Shift is included as a standard feature on the EK35TLP, not an optional add-on.

Q: Is the hydraulic system ready for additional attachments?
A: Yes. The Shimadzu® 4-Way Hydraulic Valve comes pre-plumbed from the factory, allowing hydraulic attachments to be added without additional plumbing work.

Q: What engine options are available?
A: The EK35TLP is available with either a Kubota or PSI 2.4L LPG engine, both rated at 63 HP @ 2,700 RPM.

Q: Can this forklift be used on rough or uneven surfaces?
A: The solid pneumatic tire construction and 4.7-inch minimum ground clearance at the mast make the EK35TLP suitable for use on rough, uneven, or debris-covered surfaces common on construction sites and outdoor yards.
