Liquid Propane 4-Wheel Forklift | 8,500 lb Capacity

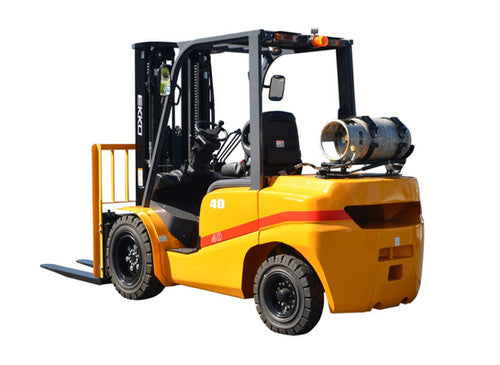

EKKO EK40TLP Liquid Propane 4-Wheel Forklift — 8,500 lb Capacity for Heavy-Duty Material Handling

The EKKO EK40TLP is a Liquid Propane (LPG) 4-wheel counterbalanced forklift engineered for demanding material handling, warehousing, and distribution operations. Rated at 8,500 lbs of lift capacity with a 185-inch lift height, it is built to handle heavy pallet loads in high-clearance environments. Powered by a Kubota or PSI 2.4L engine producing 63 HP at 2,700 RPM, this unit delivers consistent performance across both loaded and unloaded travel cycles. Solid pneumatic tires and a robust hydraulic system make it well-suited for contractors and trades professionals operating in industrial and distribution settings.

The EK40TLP stands apart through its Tier 4 EPA and CARB 4 emissions compliance, making it suitable for operation in regions with strict environmental regulations without sacrificing power output. Factory-installed Cascade® Side Shift and a pre-plumbed Shimadzu® 4-Way Hydraulic Valve provide immediate operational readiness with premium branded components. Competitive pricing combined with high-durability construction delivers long-term value for fleet-oriented buyers.

Key Features & Benefits

Tier 4 EPA / CARB 4 Compliant Engine

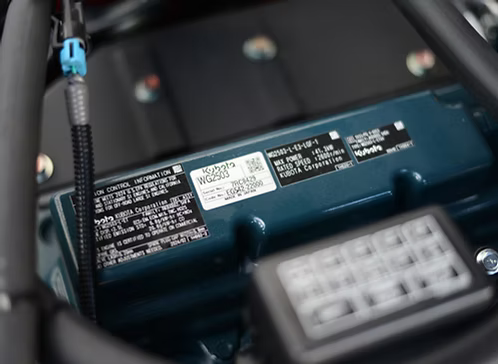

The Kubota or PSI 2.4L LPG engine meets both Tier 4 EPA and CARB 4 emissions standards, enabling operation in environmentally regulated worksites and California-compliant jobsites. At 63 HP / 2,700 RPM, it provides the power needed for sustained heavy-lift cycles without sacrificing compliance. Contractors working on regulated sites avoid costly permitting complications.

Cascade® Side Shift

The factory-installed Cascade® Side Shift attachment allows operators to laterally adjust the fork carriage without repositioning the entire forklift. This reduces cycle times when placing loads precisely on racking or staging areas. Cascade® is an industry-recognized brand, providing confidence in long-term reliability and parts availability.

Shimadzu® 4-Way Valve (Pre-Plumbed)

The pre-plumbed Shimadzu® 4-Way Hydraulic Valve is ready for immediate use upon delivery, eliminating additional installation labor. Shimadzu® hydraulic components are known for precision and durability in industrial lift applications. The optimized hydraulic system also contributes to lower fuel consumption during operation.

Enhanced Operator Comfort and Control

The EK40TLP features a semi-suspension seat, small-diameter steering wheel, electro-hydraulic directional control, and an automobile-type double combined switch to reduce operator fatigue during long shifts. The heightened overhead guard with a large arc-shaped front leg improves visibility and increases the operational space around the operator. Cushion connections and a fully suspended cab structure absorb drivetrain and surface vibrations effectively.

Mast Vibration Damping System

An internal lowering damping device within the lifting system reduces mast shock and vibration during load descent, preventing impact noise caused by goods contacting the ground. This protects both the load and the mast assembly over the service life of the unit. Contractors handling fragile or high-value materials benefit directly from this damping capability.

Solid Pneumatic Tires and Small Turning Radius

Solid pneumatic tires (250-15-16PR front / 6.50-10-10PR rear) eliminate the risk of flats in debris-laden jobsite environments while maintaining cushioned ride characteristics. The compact turning radius makes steering flexible and manageable in tighter warehouse aisles or staging areas. A 70.8-inch wheelbase and 52.9-inch overall width further support maneuverability in constrained spaces.

Common Applications

Warehouse Material Handling

Move heavy palletized loads up to 8,500 lbs throughout warehouse environments, stacking to a lift height of 185 inches for high-bay racking systems.

Distribution Center Operations

Stage, sort, and load outbound freight efficiently with the Cascade® Side Shift enabling precise dock and trailer placement without repeated repositioning.

Heavy Construction Site Staging

Unload and position heavy building materials, structural components, or equipment at job sites where a propane-powered unit is required for outdoor or semi-enclosed use.

Industrial Loading and Unloading

Load and unload flatbed trucks, containers, and trailers with a travel speed of up to 11.2 mph unloaded, reducing turnaround time between cycles.

Compatible Materials

• Palletized construction materials (lumber, block, brick, concrete products)
• Bagged goods and bulk material in super sacks
• Steel and structural components on pallets or skids
• Industrial equipment and machinery on flat skids
• Racked warehouse inventory up to 8,500 lbs per load

Technical Specifications

Frequently Asked Questions

Q: Is the EK40TLP compliant for use in California?
A: Yes. The EK40TLP meets both Tier 4 EPA and CARB 4 emissions regulations, making it compliant for operation in California and other states that follow CARB standards.

Q: Does the unit come with a side shift attachment?
A: Yes. The EK40TLP includes a factory-installed Cascade® Side Shift as standard equipment.

Q: Is the hydraulic system ready to use out of the box?
A: Yes. The Shimadzu® 4-Way Valve comes pre-plumbed from the factory, requiring no additional hydraulic installation before operation.

Q: What engine options are available?
A: The EK40TLP is available with either a Kubota or PSI 2.4L LPG engine, both rated at 63 HP at 2,700 RPM.

Q: What tire type does this forklift use?
A: The EK40TLP is equipped with solid pneumatic tires, which resist flats in rough or debris-laden environments while maintaining ride comfort comparable to air-filled tires.
