Lithium Powered Forklift – 8,000 lb Capacity Electric Lift

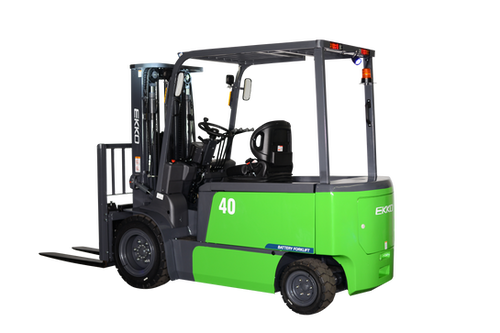

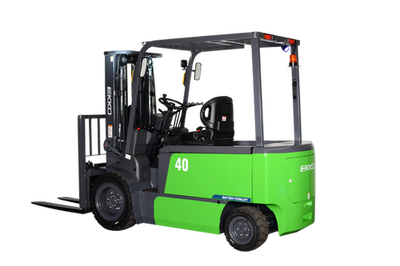

EKKO EK40T-Li Lithium Powered Forklift – 8,000 lb Capacity Electric Lift for Heavy-Duty Material Handling

The EKKO EK40T-Li is an 80V lithium-powered electric forklift engineered for demanding material handling, warehousing, and distribution operations. Built with a high-strength steel frame using robotic welding, it delivers an 8,000 lb load capacity with a lift height of 185 inches (15.75 ft), making it well-suited for contractors and trades professionals who need reliable vertical reach in high-bay storage environments. Its solid pneumatic tires and Inmotion AC drive controller provide consistent performance across a variety of job site and warehouse floor conditions.

Unlike lead-acid counterparts, the EK40T-Li runs on an 80V / 230Ah lithium battery system, reducing downtime associated with watering, equalizing, and extended charging cycles. The integration of a Cascade® Side Shift and a Shimadzu® 4-Way Valve (Pre-Plumbed) reflects a specification level more commonly seen in higher-cost equipment, offering branded hydraulic and attachment components out of the box.

Key Features & Benefits

80V / 230Ah Lithium Battery System

The lithium power platform delivers consistent voltage output throughout the discharge cycle, supporting sustained lift performance during extended shifts. Lithium chemistry also eliminates the maintenance requirements of lead-acid batteries — no watering, no equalization, and faster opportunity charging — which reduces operational downtime for busy job sites.

8,000 lb Load Capacity at 24-Inch Load Center

Rated for 8,000 lbs at a standard 24-inch load center, the EK40T-Li handles heavy palletized loads, construction materials, and dense bulk product that would exceed the capacity of mid-range forklifts. For contractors moving structural components, equipment, or high-density building supplies, this capacity rating provides confidence across a wide range of lift tasks.

185-Inch Lift Height with 43.7-Inch Free Lift

A maximum lift height of 185 inches (15.75 ft) enables placement and retrieval in high-bay racking systems. The 43.7-inch free lift height allows the forks to raise without extending the mast, which is essential for operations inside trailers, containers, or low-clearance areas where overhead obstructions are a concern.

Cascade® Side Shift

The factory-fitted Cascade® Side Shift allows operators to laterally adjust fork position without repositioning the entire truck, improving load placement accuracy and reducing cycle times. Cascade is a recognized name in forklift attachments, and having it pre-installed means no aftermarket sourcing or fitment work is required.

Shimadzu® 4-Way Valve (Pre-Plumbed)

The Shimadzu® 4-Way Valve comes pre-plumbed from the factory, enabling attachment-ready hydraulic circuits without additional installation. This is a practical advantage for contractors who may want to run auxiliary attachments in the future, as the hydraulic groundwork is already in place.

Inmotion AC Drive Controller

The Inmotion controller manages motor output and drive response, supporting smooth acceleration, regenerative braking, and directional changes. An AC drive motor paired with a dedicated controller is more durable under high-cycle conditions compared to DC drive systems, and it reduces brush-wear maintenance.

Solid Pneumatic Tires

Solid pneumatic tires provide the cushioning of a pneumatic profile without the risk of flats, making them appropriate for both indoor warehouse floors and rougher outdoor or construction site surfaces. This tire type supports the load and impact stresses common in high-cycle material handling environments.

Robotic-Welded Steel Construction

The frame is fabricated from high-quality steel using robotic welding, which produces consistent weld quality throughout the structure. This construction approach improves structural integrity under repetitive load cycles, directional changes, and the day-to-day impacts typical of active job site use.

Hydraulic Floor Pedal Service Brake

The hydraulic floor pedal brake delivers positive, consistent stopping force in a familiar foot-operated format. This configuration supports operator confidence and control, particularly when handling heavy loads on grades or in confined staging areas.

Common Applications

Warehouse Material Handling

The EK40T-Li is designed for warehousing and distribution operations, where high lift height, side shift capability, and consistent battery performance are essential for efficient pallet management across multiple rack levels.

High-Bay Racking and Storage

With a 185-inch lift height and 43.7-inch free lift, the forklift can service high-bay storage systems — placing and retrieving loads at elevation while maintaining stability within narrow aisle configurations.

Distribution Center Operations

In distribution environments where throughput is critical, the lithium battery system supports extended run times and opportunity charging, reducing the interruptions associated with battery swaps common in lead-acid fleets.

Construction Site Material Staging

The 8,000 lb capacity and solid pneumatic tires make the EK40T-Li viable for staging heavy construction materials — including structural components and bulk supplies — on job sites where surface conditions may vary.

Container and Trailer Loading/Unloading

The free lift height of 43.7 inches allows the forks to elevate without raising the mast, enabling work inside enclosed trailers and shipping containers without contact with the overhead structure.

Compatible Materials

• Palletized construction materials (lumber, masonry, roofing, framing)
• Bulk bagged goods and aggregate
• Boxed and crated equipment
• Heavy machinery components
• Steel and structural materials
• Dense building supplies and hardware

Technical Specifications

Frequently Asked Questions

Q: What is the maximum lift height of the EK40T-Li?
A: The EK40T-Li has a maximum lift height of 185 inches (15.75 ft), suitable for high-bay racking and elevated storage applications.

Q: What type of battery does the EK40T-Li use?
A: It uses an 80V / 230Ah lithium battery, which supports extended run times and eliminates the maintenance requirements associated with lead-acid batteries such as watering and equalization.

Q: Does the forklift come with a side shift attachment?
A: Yes. The EK40T-Li comes factory-equipped with a Cascade® Side Shift, allowing lateral fork adjustment without repositioning the truck.

Q: Is the hydraulic system attachment-ready?
A: Yes. The Shimadzu® 4-Way Valve is pre-plumbed from the factory, meaning additional hydraulic attachments can be connected without requiring additional hydraulic installation work.

Q: What type of tires does the EK40T-Li use?
A: The forklift is equipped with solid pneumatic tires, which provide a cushioned ride profile without the flat-tire risk of air-filled tires — appropriate for both indoor warehouse floors and varied outdoor surfaces.

Q: What warranty does the EK40T-Li carry?
A: The EK40T-Li is covered by a 3 Year Limited Warranty.
