Stand-Up Rider Electric Forklift - 4,000lb with 216" Lift

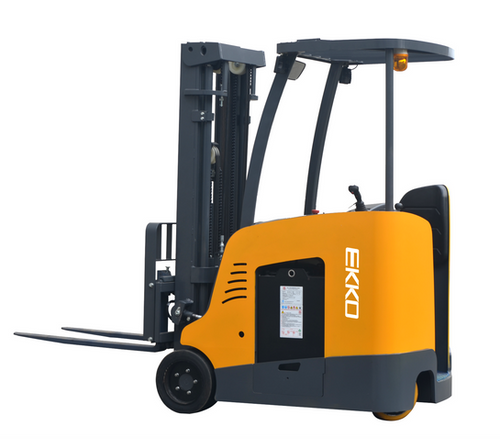

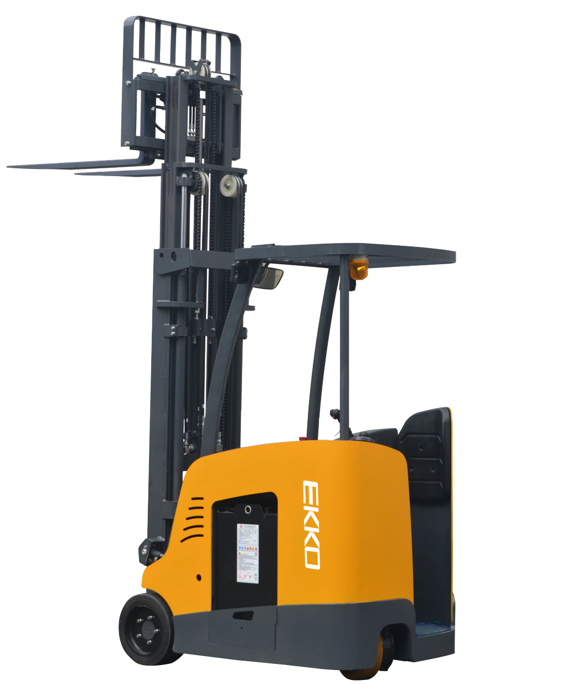

EKKO EK18RF Stand-Up Rider Electric Forklift — 4,000 lb Capacity, 18 ft Lift Height

The EKKO EK18RF is a 48V electric stand-up rider forklift engineered for demanding material handling operations in warehouses, manufacturing floors, loading docks, and stock rooms. With a 4,000 lb load capacity and a maximum lift height of 216.54 inches (18 ft), it is built to handle heavy, high-rack applications with precision and reliability. The unit ships complete with a 48V/420Ah battery and a 48V/65A 480V three-phase charger, making it ready to deploy out of the box.

Unlike pedestrian or walkie stackers, the EK18RF's stand-up rider platform, hydraulic steering, and German AC drive motor deliver the performance and operator comfort required for sustained, high-cycle use. The combination of a Curtis Instrument controller with AC drive control and robotic-welded steel construction sets this unit apart from lower-tier alternatives in its class.

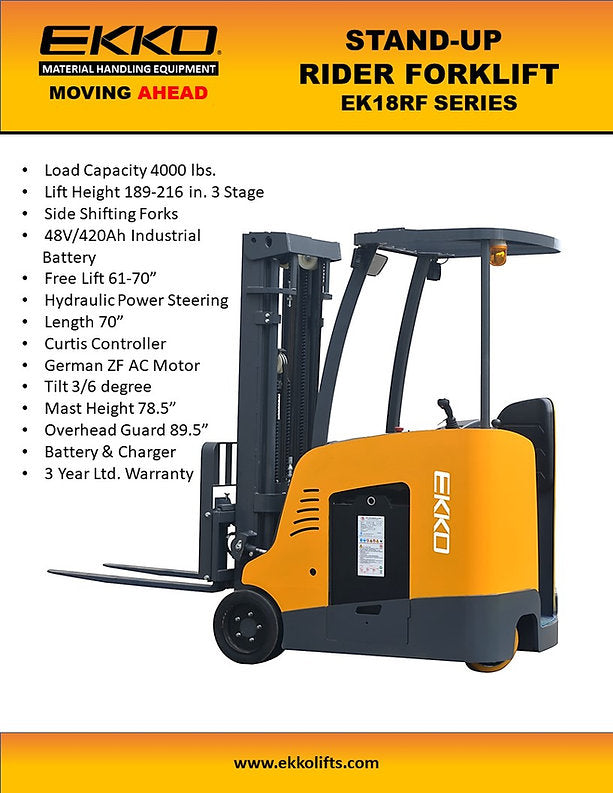

Key Features & Benefits

German AC Drive Motor with Curtis Instrument Controller

The 6 kW (60-min rated) German AC drive motor paired with a Curtis Instrument AC controller delivers smooth, responsive acceleration and precise directional control. AC drive systems require less maintenance than DC equivalents and provide regenerative braking that helps extend battery life during high-cycle shifts.

Side-Shifting Adjustable Forks

Side-shifting forks with an adjustable width range of 9.4 to 35.6 inches allow operators to precisely align loads without repositioning the truck, reducing cycle times and improving placement accuracy. The 45.28-inch fork length handles standard pallet sizes across a variety of load configurations.

High Free Lift and Extended Reach

A 61.34-inch free lift height allows the mast to raise loads without extending overall mast height, which is critical for working in areas with low overhead obstructions such as truck trailers and mezzanine levels. The 216.54-inch maximum lift height and 248.43-inch extended mast height enable access to high-rack storage positions up to 18 ft.

48V/420Ah Battery Included

The included 48V/420Ah lead-acid battery and 48V/65A 480V three-phase charger eliminate the need for separate procurement and ensure the unit is ready for full-shift operation from day one. Battery weight of approximately 1,570 lb contributes to the truck's overall stability during loaded travel.

Robotic-Welded Steel Construction

The chassis is fabricated from high-quality steel using robotic welding processes, providing consistent weld quality and structural integrity under repeated impact, directional changes, and heavy loads. This construction approach is designed to withstand the rigors of daily industrial use across a variety of facility types.

Hydraulic Steering and Braking

Hydraulic power steering reduces operator fatigue during extended shifts in tight maneuvering environments, with a minimum turning radius of 58.5 inches and an aisle width requirement of just 10.5 ft. Hydraulic service brakes provide reliable, consistent stopping performance under laden conditions.

Low Noise Operation

With a noise level at the operator's ear of 70 dB(A) or less, the EK18RF operates quietly enough for mixed-use facilities where noise control is a consideration. Electric operation also eliminates exhaust emissions, making it suitable for enclosed indoor environments.

Common Applications

Loading Dock Operations

The EK18RF's 12/13 km/h laden/unladen travel speeds and hydraulic steering make it well suited for the repetitive loading and unloading cycles at truck bays and loading docks.

High-Bay Warehouse Racking

With a maximum lift height of 216.54 inches and a 61.34-inch free lift, this forklift can access high-rack storage positions while maintaining a lowered mast height of 91.77 inches for travel in areas with overhead restrictions.

Manufacturing Floor Material Handling

The compact footprint — 117.78 inches overall length, 42.52 inches overall width, and 10.5 ft aisle width requirement — allows the EK18RF to navigate manufacturing floor layouts and deliver materials to workstations efficiently.

Stock Room and Distribution Center Use

Adjustable and side-shifting forks enable fast, accurate pallet placement in tight stock room environments where precise load positioning is essential to maintaining inventory organization.

Truck Loading and Unloading

The 61.34-inch free lift height supports work inside truck trailers without mast extension, while the polyurethane drive tires and solid cushion load tires handle the transition between dock plates and trailer floors.

Compatible Materials

• Standard wooden pallets
• Plastic pallets
• Skidded or crated loads up to 4,000 lb
• Racked warehouse inventory
• Boxed or bagged bulk materials
• Loads requiring variable fork width (9.4–35.6 in)

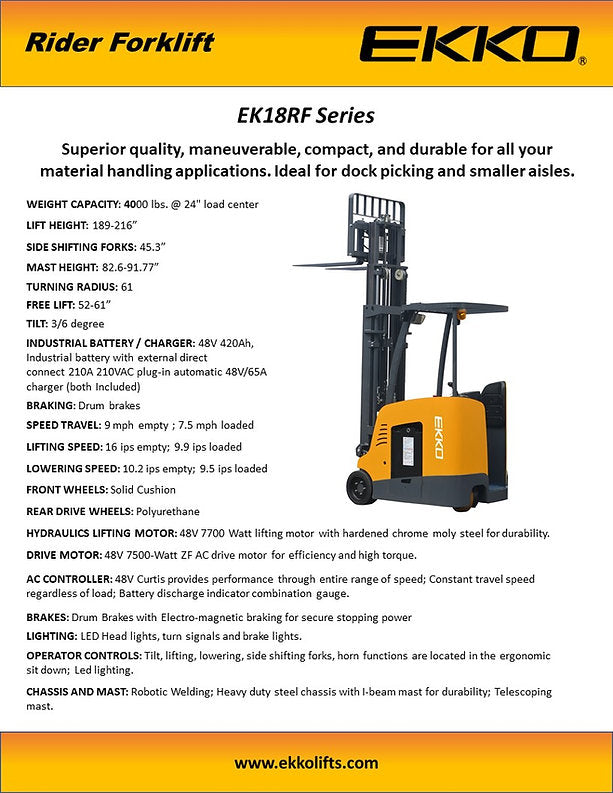

Technical Specifications

Frequently Asked Questions

Q: Is the battery and charger included with the EK18RF?
A: Yes. The unit includes a 48V/420Ah battery and a 48V/65A 480V three-phase charger.

Q: What is the minimum aisle width required to operate the EK18RF?
A: The EK18RF requires a minimum aisle width of 10.5 ft.

Q: Can the forks be adjusted for different pallet sizes?
A: Yes. The forks are adjustable from 9.4 to 35.6 inches in width and include a side-shift function for precise load positioning without repositioning the truck.

Q: Is this forklift suitable for indoor use?
A: Yes. As an electric unit with a noise level of 70 dB(A) or less and zero exhaust emissions, the EK18RF is designed for indoor environments including warehouses, manufacturing floors, stock rooms, and loading docks.

Q: What warranty is included?
A: The EK18RF is covered by a 3-Year Limited Warranty.
