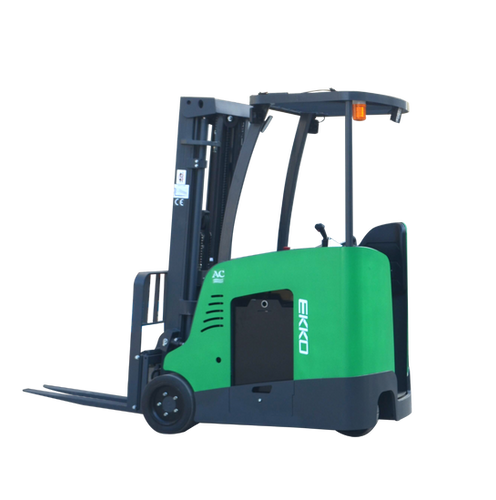

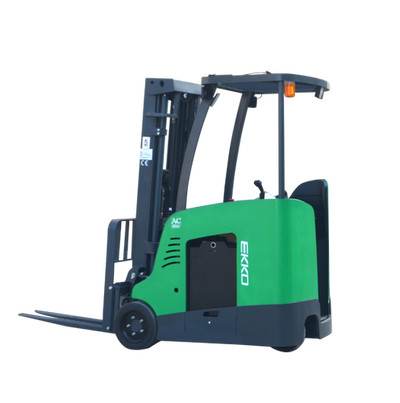

EKKO EK18RF-Li Stand-up Rider Forklift — 4,000 lb Capacity with 18 ft Lithium-Powered Lift

The EKKO EK18RF-Li is an electric stand-up rider forklift rated for 4,000 lb loads at a 24-inch load center, with a maximum lift height of 216.54 inches (approximately 18 feet). Designed for demanding material handling environments, it is well-suited for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing operations. The unit is powered by a 48V / 350Ah lithium battery paired with a German-built AC drive motor, delivering consistent performance across extended shifts.

Compared to lead-acid alternatives, the lithium battery configuration eliminates watering and equalization routines, reducing maintenance overhead for fleet operators. The Curtis Instrument Controller paired with a 6 kW AC drive motor and 7.7 kW lift motor provides precise, responsive control in tight aisle environments requiring as little as 10.5 ft of aisle width.

Key Features & Benefits

48V / 350Ah Lithium Battery System

The lithium battery delivers reliable power with reduced maintenance demands compared to conventional lead-acid units. Paired with a 440V three-phase charger, the system supports the high-cycle demands of busy warehouse and loading dock environments.

German AC Drive Motor with Curtis Instrument Controller

The 6 kW (60-min rated) German AC drive motor and 7.7 kW lift motor (S3 15%) are managed by a Curtis Instrument Controller, providing smooth acceleration and precise lift control. This combination supports laden travel speeds of 12 km/h and unladen speeds of 13 km/h, keeping operations moving efficiently.

Side Shift and Adjustable Fork Width

The integrated side shift allows operators to fine-tune load positioning without repositioning the forklift, reducing cycle times at the rack face. Adjustable fork width from 9.4 to 35.6 inches accommodates a wide range of pallet and load configurations.

High Lift Height with Free Lift

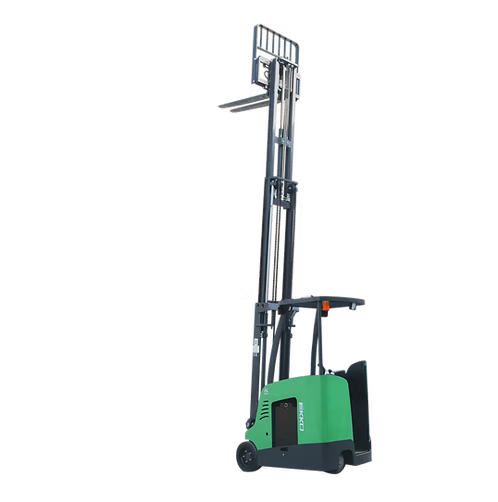

With a maximum lift height of 216.54 inches and a free lift height of 61.34 inches, the EK18RF-Li can handle high-bay racking without raising the mast — critical for low-clearance areas such as truck trailers and mezzanine levels. The lowered mast height of 91.77 inches supports access through standard doorways and dock entries.

Hydraulic Steering and Hydraulic Service Brake

Hydraulic steering reduces operator fatigue during extended shifts in applications requiring frequent directional changes. The hydraulic service brake provides consistent, reliable stopping performance for a unit weighing 7,940 lb with battery.

Steel Construction with Robotic Welding

The frame is fabricated from high-quality steel using robotic welding processes, delivering consistent weld quality and structural integrity across the chassis. This construction approach is designed to withstand the repeated impacts, terrain variation, and directional changes common in industrial material handling.

Ergonomic Controls and Operator Environment

The stand-up rider platform is positioned at 9.06 inches, with ergonomic handle and controls designed for operator comfort. Noise at the operator's ear is rated at ≤70 dB(A), reducing fatigue during long shifts.

Polyurethane Drive Tires and Solid Cushion Load Tires

16×7-10.5 in polyurethane drive tires provide durability and low rolling resistance on smooth warehouse and dock floors. Solid cushion load tires eliminate flat-tire downtime while maintaining stable load support.

Common Applications

Loading and Unloading Trucks

The 10.5 ft aisle width requirement and 58.5-inch minimum turning radius make the EK18RF-Li well-suited for maneuvering within and around truck trailers and loading docks. The free lift height of 61.34 inches allows operation without raising the mast inside trailers with low ceilings.

Loading Dock Operations

The combination of hydraulic steering, side shift, and adjustable fork width allows precise pallet positioning at busy loading docks with varying pallet sizes and configurations.

Warehousing and High-Bay Racking

With a 216.54-inch lift height and an extended mast height of 248.43 inches, the forklift can service tall racking systems in distribution centers and warehouses. The 3°/5° mast tilt provides additional positioning control at height.

Stock Room Operations

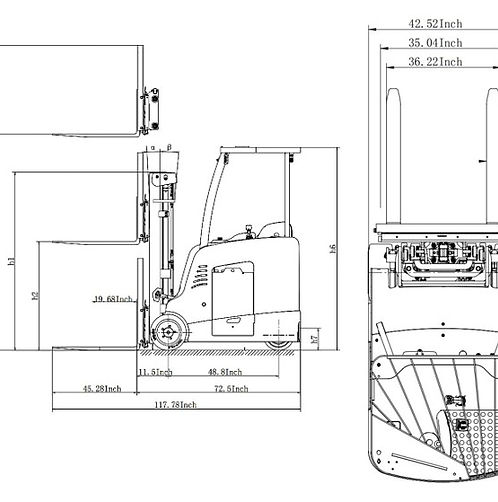

The compact 42.52-inch overall width and 10.5 ft aisle width requirement allow the EK18RF-Li to work efficiently in tighter stock room environments where space is at a premium.

Manufacturing Floor Material Handling

The durable steel construction and solid tires handle the repeated loads and directional changes typical of manufacturing floor operations. The 6%/10% gradeability (with/without load) supports movement across minor grade changes common in industrial facilities.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Metal skids and platforms
• Boxed and crated goods
• Bagged bulk materials on pallets
• Racking and shelving unit loads
• Smooth concrete warehouse floors
• Loading dock surfaces

Technical Specifications

Frequently Asked Questions

Q: What battery type does the EK18RF-Li use, and does it require special charging infrastructure?
A: The EK18RF-Li uses a 48V / 350Ah lithium battery. It requires a 440V three-phase charger, so facilities should confirm they have three-phase power available at the charging location before deployment.

Q: What is the minimum aisle width required to operate this forklift?
A: The EK18RF-Li requires a minimum aisle width of 10.5 ft and has a minimum turning radius of 58.5 inches.

Q: Can this forklift be used inside truck trailers?
A: Yes. The free lift height of 61.34 inches allows the forks to raise to a usable height without extending the mast, making it suitable for operation inside trailers where overhead clearance is limited.

Q: What warranty is included with the EK18RF-Li?
A: The forklift includes a 3-Year Limited Warranty.

Q: What floor surfaces are the tires suited for?
A: The forklift is equipped with polyurethane drive tires and solid cushion load tires, which are designed for smooth indoor surfaces such as concrete warehouse floors and loading docks.
